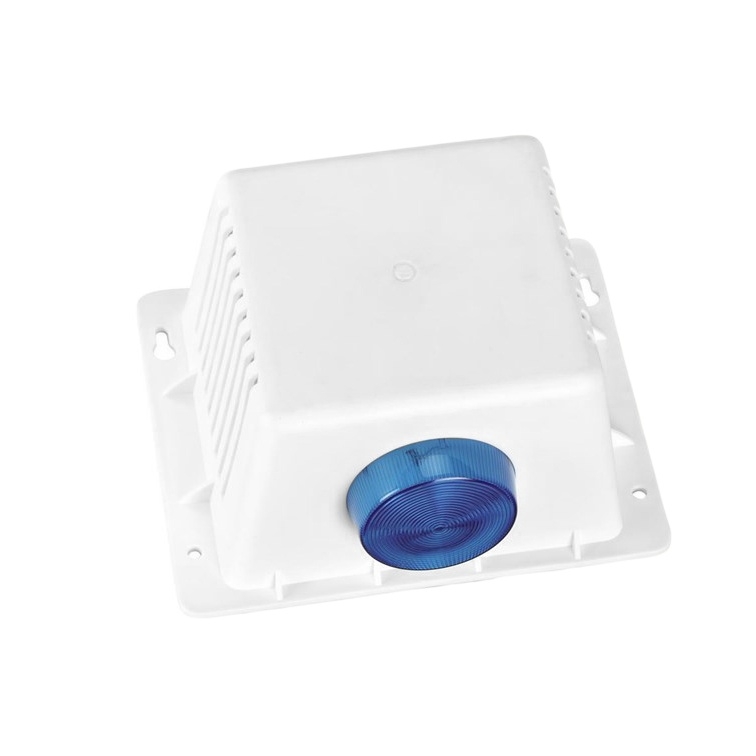

1.1. Application Warning Light Strobe/Siren Module

1.2.Warning Light Strobe Rated voltage :12VDC
Flash Frequency:85~95/min
Current:10~100mA
Wire Connection: Red:Power (+) Black: Power (-)

1.3.Horn Speaker Feature：Passive Drive
Coil impedance: R:8Ω ±15%
Input Power:15Wmax
Wire Connection: White:Audio Signal (+)
Black：Audio Signal (-)

1.4.ReedSwitch Max. Switching Voltage：100 VDC / VAC
Max. Switching Current：0.5A
Wire Connection:Non Positive or Negative

1.5.Housing Color White

1.6. Housing Dimensions 19.8*15.4*11cm±0.5mm
