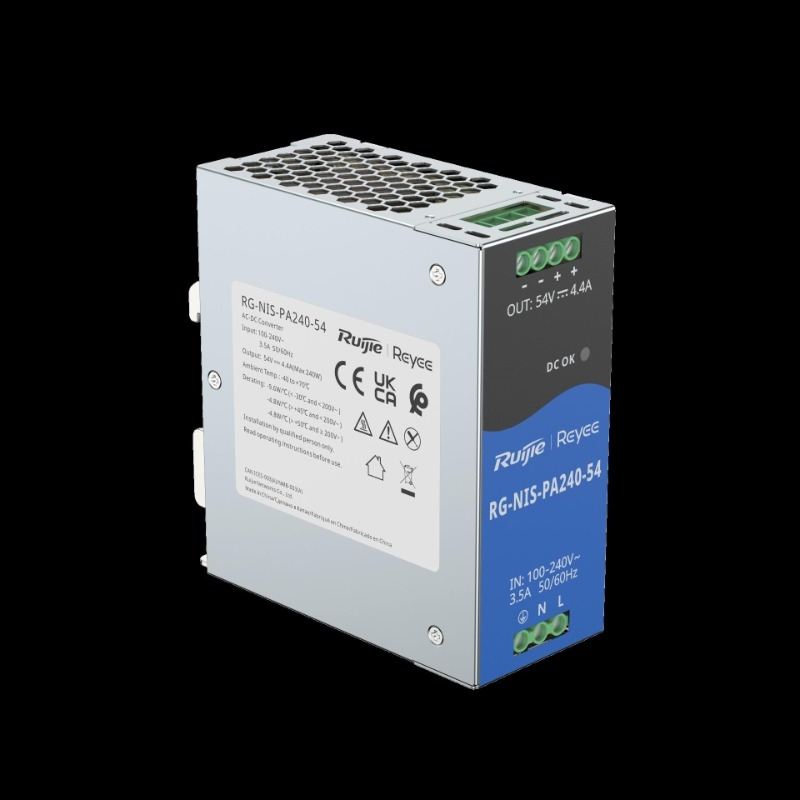

REYEE Ruijie Reyee AC/DC 240W DIN-Rail Power Supply for Industrial Switch RG-NIS-PA240-54
Special Price $121.00 Regular Price $140.00
| SKU: | 432924 |
|---|---|
| MPN: | RG-NIS-PA240-54 |
| Brand: | REYEE |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
The Ruijie Reyee RG-NIS-PA240-54 is a 240W industrial power supply designed for demanding environments providing a stable 54V DC output. It features a DIN rail mountable design for easy installation, accepts 100-240V AC input and includes overcurrent, overvoltage and short circuit protection. This power supply is used to reliably power various industrial systems.
Highlights
- Input: 100- 240V AC @ 3.5A
- Output: 52.38-55.62V DC @ 4.4A
- Operating Temperature Range: -40°C to +70°C
- DIN Rail Mountable
- 3 Year Limited Warranty
Specifications
▼
| Nameplate Input Voltage Range | 100-240V AC |
| Input Voltage Range | 90-264V AC |
| Input Frequency Range | 50/60Hz |
| Input Current | 3.5A |
| Output Voltage Range | 52.38-55.62V DC |
| Output Current | 4.4A |
| Power Consumption | ≤ 240W |
| Operating Temperature | -40°C to +70°C |
| Fan | No |
| Surge Protection | 4kV |
| Dimensions (W x D x H) | 52mm x 110mm x 125mm |
| Weight | 0.75KG |
| MTBF | > 150,000 |
| Certification | CE |
| Warranty | 3 Year Limited Warranty |
Vendor Info
▼
Ruijie Reyee AC/DC 240W DIN-Rail Power Supply for Industrial Switch
