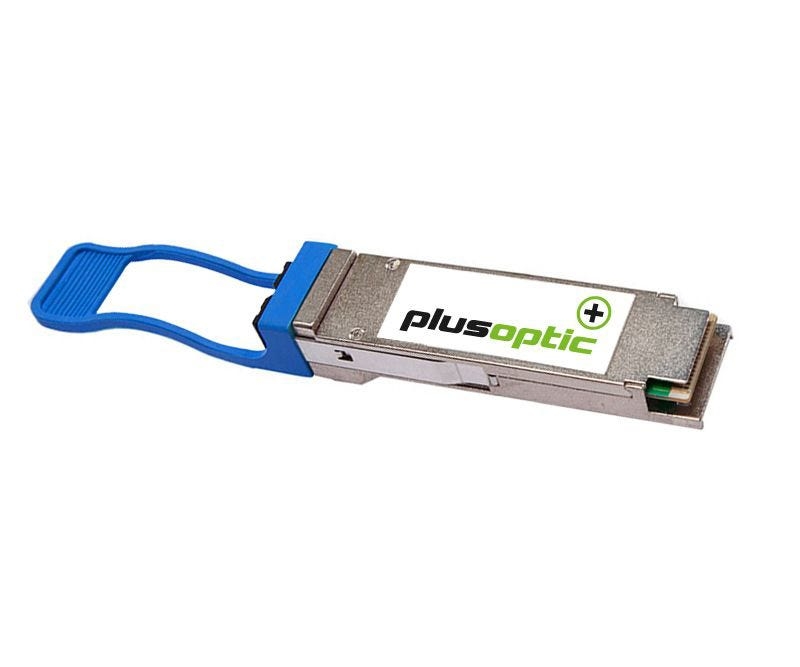

Boost your network performance with this 100G QSFP28 SR4 transceiver. Designed for high-speed 100 Gigabit Ethernet applications, this module operates at an 850nm wavelength over multi-mode fibre (MMF) with a reach of up to 100 meters on OM4 fibre. Featuring an MTP/MPO connector, it's ideal for high-density environments in data centres and enterprise networks. The inclusion of Digital Optical Monitoring (DOM) provides real-time insights into the transceiver's performance, ensuring reliability. Backed by a 3-year warranty, this transceiver offers a dependable and cost-effective solution for your high-bandwidth needs.



Features

- Supports 100 Gigabit Ethernet (100GBASE-SR4)
- 850nm wavelength for multi-mode fibre (MMF)
- Reach up to 100 meters on OM4 fibre, 70 meters on OM3 fibre
- QSFP28 form factor for high port density
- MTP/MPO connector for easy integration
- Digital Optical Monitoring (DOM) for real-time diagnostics
- Low power consumption (<2.5W typical)
- Hot-pluggable

Specifications

- Form Factor: QSFP28
- Data Rate: 100Gbps
- Wavelength: 850nm
- Fibre Type: Multi-Mode Fibre (MMF)
- Maximum Reach: 100m (OM4), 70m (OM3)
- Connector: MTP/MPO
- DOM Support: Yes
- Power Consumption: <2.5W (typical)
- Operating Temperature: 0°C to 70°C
- Compliance: IEEE 802.3bm 100GBASE-SR4, QSFP28 MSA

Warranty
3-Year Warranty
