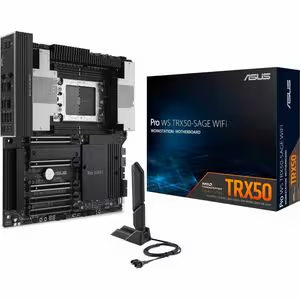

Asus PRO WS TRX50-SAGE WIFI Desktop Motherboard - AMD TRX50 Chipset - Socket sTR5 - SSI CEB - Ryzen 7 Processor Supported DDR5 SDRAM Maximum RAM - DIMM - 4 x Memory Slots - IEEE 802.11be - 4 x SATA Interfaces PRO WS TRX50-SAGE WIFI

$1,530.00
SKU:414575
MPN:PRO WS TRX50-SAGE WIFI
Manufacturer:https://www.asus.com/au/
Brand: Asus
Warranty:Standard Manufacturer's Warranty
Availability:

Preorder 2-3 weeks

Fright Estimate

Asus PRO WS TRX50-SAGE WIFI Desktop Motherboard - AMD TRX50 Chipset - Socket sTR5 - SSI CEB - Ryzen 7 Processor Supported DDR5 SDRAM Maximum RAM - DIMM - 4 x Memory Slots - IEEE 802.11be - 4 x SATA Interfaces

AMD TR5 CEB workstation motherboard, CPU and memory overclocking ready, robust 36 power-stage design, PCIe 5.0 x 16, PCIe 5.0 M.2, 10 Gb and 2.5 Gb LAN, multi-GPU support

  • AMD sTR5 socket supports up to 96-core CPUs:Ready for AMD Ryzen Threadripper PRO 7000 WX-Series Processors and AMD Ryzen Threadripper 7000 Series Processors.
  • CPU and memory overclocking:Support for up to 1TB ECC R-DIMM DDR5 memory modules (1DPC)
  • Robust power and thermal design:36 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks, and M.2 thermal pad.
  • Ultrafast connectivity:three PCIe 5.0 x16 slots, 10 Gb & 2.5 Gb LAN ports, three M.2 slots, front and rear USB 20Gbps Type-C and SlimSAS NVMe support.
  • Server-grade IPMI remote management:hardware and software support for ASUS IPMI expansion cards, plus ASUS Control Center Express software for real-time monitoring and management
  • Trusted stability:Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation

A WORKSTATION WONDERLAND

The Pro WS TRX50-SAGE WIFI motherboard offers elite speed, compatibility and stability tailored to content creation, software development, machine learning and more. Thirty-six power stages fuel AMD Ryzen Threadripper PRO 7000 WX-series and AMD Ryzen Threadripper 7000 series processors with up to 96 cores, while supporting up to 1 TB of R-DIMM DDR5 modules, delivering the performance potential that professionals need for cutting-edge applications.

With onboard PCIe power connectors offering additional support for multiple graphics cards, active cooling and heat pipes on the VRM heatsinks, WiFi 7, USB 20Gbps port, SlimSAS and IMPI support, the Pro WS TRX50-SAGE WIFI comes prepared for a wide array of scenarios and industries.

CPU AND MEMORY OVERCLOCKING READY

For AMD TR5 series workstations and high-end desktop (HEDT) models, AMD offers CPU and DRAM overclocking options. To fully leverage the performance of these processors, ASUS has incorporated an innovative dual PSU design on the Pro WS TRX50-SAGE WIFI motherboard. Along with robust power delivery and advanced cooling modules, this board exhibits remarkable stability during overclocking. Hardware switches and optimized BIOS options on the motherboard provide overclocking enthusiasts with greater convenience when pushing their systems to the limit. You may further boost your memory performance by enabling EXPO settings. The comprehensive synergy of EXPO and ECC R-DIMM further combines exceptional performance with outstanding stability, setting a new standard for workstation and high-end desktop computing.

INNOVATIVE COOLING AND ROBUST PERFORMANCE | Power Stages in VRM Area

The Pro WS TRX50-SAGE WIFI's voltage regulator module setup is comprised of (18*2)+3+4+4 power stages, delivering the power and efficiency that the latest AMD Ryzenprocessors demand and stability for extreme overclocking.

Features
  • The SSI CEB server standard motherboard enables a solid foundation for PC components and magnifies the performance by supporting multiple processors
  • RAID supported levels provide data reliability and fault tolerance
  • IEEE 802.11be wireless standard support enables a hassle-free peripheral connection
  • DDR5 SDRAM slot for convenient installation of memory
  • With 2 USB 2.0 ports, connect devices for a quick data movement
  • Compatible Ryzen 7 processor lets you perform all your computational tasks at a swift pace
Guides & Documents
Miscellaneous
Brand CompatibilityAMD
Video
Onboard VideoCPU Dependent Video
Memory
Memory TechnologyDDR5 SDRAM
Number of Memory Slots4
Memory Form FactorDIMM
Physical Characteristics
Form FactorSSI CEB
Width304.8 mm
Depth279.4 mm
Interfaces/Ports
S/PDIFYes
Number of Network (RJ-45) Ports1
Total Number of USB Ports9
Number of USB 2.0 Ports2
Onboard Interfaces
Number of SATA Interfaces4
Total Number of Onboard USB Ports7
Number of Onboard USB 2.0 Ports4
Number of M.2 Interfaces3
General Information
Product TypeDesktop Motherboard
Manufacturer Part NumberPROWSTRX50SAGEWIFI
Manufacturer Website Addresshttp://www.asus.com/au
ManufacturerASUS Computer International
Product ModelPRO WS TRX50-SAGE WIFI
Product NamePRO WS TRX50-SAGE WIFI Desktop Motherboard
Product SeriesPRO
Brand NameAsus
I/O Expansions
Number of Total Expansion Slots5
Number of PCI Express x16 Slots5
PCI Express StandardPCI Express 4.0
PCI Express 5.0
Total Number of PCI Express Slots5
I/O Controller
RAID Levels0
1
10
5
Controller TypeSerial ATA/600
RAID SupportedYes
Network & Communication
BluetoothYes
Wireless LANYes
Wireless LAN StandardIEEE 802.11be
Bluetooth StandardBluetooth 5.4
10Gigabit EthernetYes
2.5Gigabit EthernetYes
Processor & Chipset
Processor SupportedRyzen Threadripper
Ryzen 7
Total Processor Supported1
Processor SocketSocket sTR5
Chipset ManufacturerAMD
Chipset ModelTRX50
