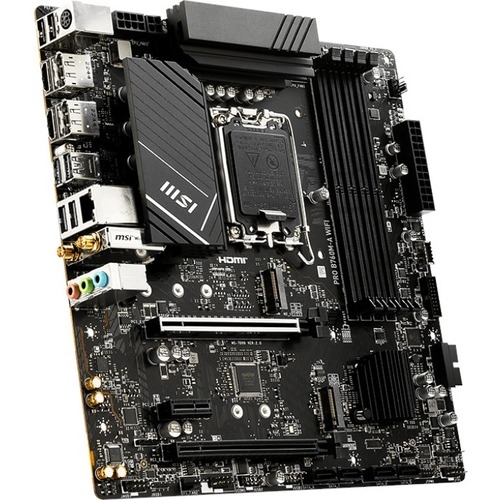

MSI Pro PRO B760M-A WIFI DDR5 Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - Micro ATX - Core, Pentium Gold, Celeron Processor Supported - 192 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 80 PRO
SKU: | 400733 |
---|---|
MPN: | PRO B760M-A WIFI DDR5 |
Manufacturer: | https://au.msi.com/ |
Brand: | Msi |
Warranty: | Standard Manufacturer's Warranty |
Availability: | In stock |
Fright Estimate |
Description
MSI Pro PRO B760M-A WIFI DDR5 Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - Micro ATX - Core, Pentium Gold, Celeron Processor Supported - 192 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
Heavy Plated VRM HeatsinkThe VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke PadHigh-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Chipset Heatsink-
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
CONTROL IN ONE CLICK
FROZR AI COOLING
AUTO DETECT YOUR FAN
- 1
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.
Specifications
Audio Channels | 7.1 |
Brand Compatibility | Intel |
Onboard Video | CPU Dependent Video |
Form Factor | Micro ATX |
Width | 243.8 mm |
Depth | 243.8 mm |
Number of SATA Interfaces | 4 |
Total Number of Onboard USB Ports | 9 |
Number of Onboard USB 2.0 Ports | 4 |
Number of M.2 Interfaces | 2 |
RAID Levels | 5 |
10 | |
1 | |
0 | |
Controller Type | Serial ATA/600 |
RAID Supported | Yes |
Number of PCI Express x1 Slots | 1 |
Number of Total Expansion Slots | 3 |
Number of PCI Express x16 Slots | 2 |
PCI Express Standard | PCI Express 4.0 |
PCI Express 3.0 | |
Total Number of PCI Express Slots | 3 |
Maximum Memory Supported | 192 GB |
Memory Technology | DDR5 SDRAM |
Number of Memory Slots | 4 |
Memory Form Factor | DIMM |
UDIMM | |
Memory Speed Supported | 5800 MHz |
6800 MHz | |
6600 MHz | |
6400 MHz | |
6200 MHz | |
6000 MHz | |
5600 MHz | |
5400 MHz | |
5200 MHz | |
5000 MHz | |
4800 MHz |
Bluetooth | Yes |
Gigabit Ethernet | Yes |
Wireless LAN | Yes |
Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
Bluetooth Standard | Bluetooth 5.3 |
2.5Gigabit Ethernet | Yes |
Product Type | Gaming Desktop Motherboard |
Manufacturer Part Number | PRO B760M-A WIFI DDR5 |
Manufacturer Website Address | http://au.msi.com |
Manufacturer | MSI |
Product Model | PRO B760M-A WIFI DDR5 |
Product Name | PRO B760M-A WIFI DDR5 Gaming Desktop Motherboard |
Product Line | Pro |
Brand Name | MSI |
HDMI | Yes |
HDMI Version | 2.1 |
Number of Network (RJ-45) Ports | 1 |
DisplayPort | Yes |
Total Number of USB Ports | 6 |
Number of USB 2.0 Ports | 2 |
Number of USB 3.2 Gen 1 Type-A Ports | 2 |
Number of USB 3.2 Gen 2 Type-A Ports | 2 |
Processor Supported | Core |
Pentium Gold | |
Celeron | |
Total Processor Supported | 1 |
Processor Socket | Socket LGA-1700 |
Chipset Manufacturer | Intel |
Chipset Model | B760 |
Processor Generation Supported | 13th Gen |
12th Gen | |
13th Gen | |
12th Gen |
