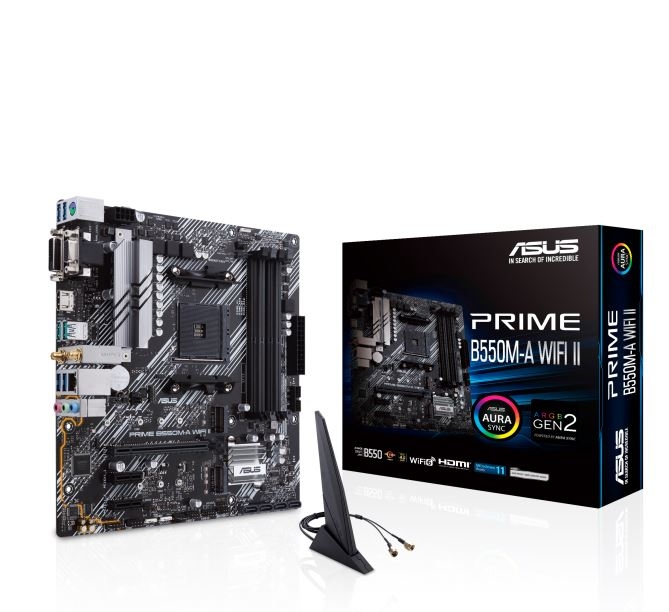

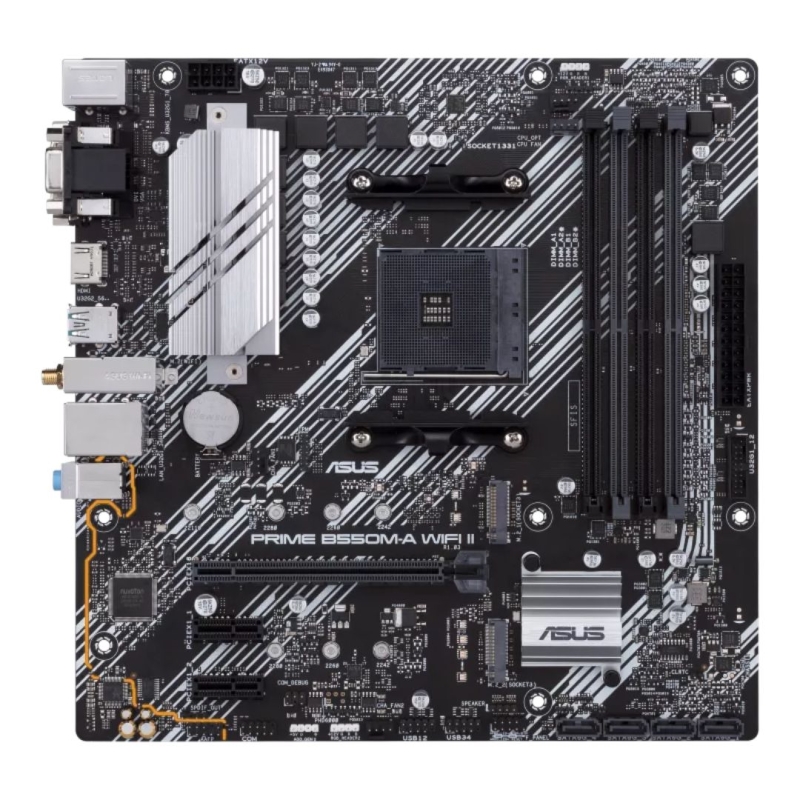

Asus AMD B550M Prime B550M-A Wifi Ii (Ryzen AM4) Micro-ATX Motherboard, DDR4 128GB, PCIe 4.0, 2x M.2, Wi-Fi 6, 1Gb Lan, USB 3.2 Gen 2 Prime B550M-A Wifi II
$165.00
| SKU: | 392736 |
|---|---|
| MPN: | PRIME B550M-A WIFI II Link |
| Manufacturer: | https://www.asus.com |
| Brand: | Asus |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
AMD AMD B550M PRIME B550M-A WIFI II (Ryzen AM4) Micro-ATX Motherboard
•AMD AM4 Socket: Ready for Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
•Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+ utility
•Ultrafast Connectivity: Dual M.2, PCIe 4.0, Wi-Fi 6, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A support
•Aura Sync RGB Lighting: Onboard addressable Gen 2 header and RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware
•4-Year Premium Warranty: Register here to extend from the standard 3-Year program.
* Graphics
•AMD AM4 Socket: Ready for Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
•Comprehensive Cooling: VRM heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+ utility
•Ultrafast Connectivity: Dual M.2, PCIe 4.0, Wi-Fi 6, 1 Gb Ethernet, USB 3.2 Gen 2 Type-A support
•Aura Sync RGB Lighting: Onboard addressable Gen 2 header and RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware
•4-Year Premium Warranty: Register here to extend from the standard 3-Year program.
* Graphics
Specifications
▼
| Model | PRIME B550M-A WIFI II |
| CPU | *Refer to www.asus.com for CPU support list. |
| Memory | 4 x DIMM, Max. 128GB, DDR4 |
| 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133, Un-buffered Memory* | Dual Channel Memory Architecture |
| * ECC memory (ECC mode) support varies by CPU. | * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
| Graphics | 1 x D-Sub port |
| 1 x DVI-D port | 1 x HDMI® port** |
| * Graphics specifications may vary between CPU types. | ** Supports 4K@60Hz as specified in HDMI 2.1. |
| Expansion Slots | AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors |
| 1 x PCIe 4.0 x16 slot (supports x16 mode) | AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors |
| 1 x PCIe 3.0 x16 slot (supports x16 mode) | AMD B550 Chipset |
| 2 x PCIe 3.0 x1 slots | Storage |
| AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors | M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) |
| AMD Ryzen™ 4000 G-Series Desktop Processors | M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) |
| AMD B550 Chipset | M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) |
| 4 x SATA 6Gb/s ports | Support RAID 0, 1, 10 |
| Ethernet | ASUS LANGuard |
| Wireless & Bluetooth | Wi-Fi 6, |
| 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) | Supports 2.4/5GHz frequency band |
| Bluetooth v5.2 | USB |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| 2 x USB 3.2 Gen 2 ports (2 x Type-A) | 4 x USB 3.2 Gen 1 ports (4 x Type-A) |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | - Supports up to 24-Bit/192 kHz playback |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
Vendor Info
▼
ASUS AMD B550M PRIME B550M-A WIFI II (Ryzen AM4) Micro-ATX Motherboard, DDR4 128GB, PCIe 4.0, 2x M.2, Wi-Fi 6, 1Gb LAN, USB 3.2 Gen 2
