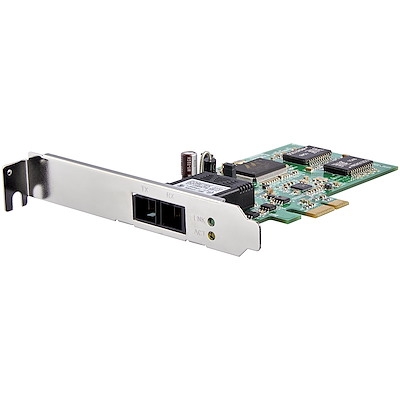

STARTECH PCIe GbE MULTIMODE SC FIBER NETWORK CARD 2YR PEX1000MMSC2

Special Price $328.00 Regular Price $377.00
SKU:407700
MPN:PEX1000MMSC2 Link
Manufacturer:https://www.startech.com
Brand: Startech
Warranty:Standard Manufacturer's Warranty
Availability:

In stock

Fright Estimate

Maximum fiber distance of 550m
Supports Full/Half-duplex Auto-Negotiation
Includes low-profile/half-height installation bracket
Compliant with IEEE802.3z 1000Base-SX, IEEE 802.1Q VLAN Tagging, IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.3x full duplex flow control
Supports RFC 1157 SNMP v1 for remote management
Jumbo Frame Support
Supports PCI Message Signaled Interrupt (MSI)
Preboot Execution Environment (PXE) 2.1
Supports Wake-on-LAN remote wake-up
Advanced Configuration Power Management Interface (ACPI) 2.0

Warranty Information
Warranty
2 Years
Connector(s)
Connector Type(s)
1 - PCI Express x1
External Ports
1 - Fiber Optic SC Duplex
Environmental
Operating Temperature
0°C to 45°C (32°F to 113°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Humidity
5~95% RH (Non-Condensing)
Hardware
Ports
1
Interface
Fiber Ethernet
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Industry Standards
IEEE802.3z 1000BASE-SX, IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.3x full duplex flow control, RFC 1157 SNMP v1
Chipset ID
Realtek - RTL8168H
Marvell - 88E1111B1
Indicators
LED Indicators
1 - Link (Green)
1 - Activity (Yellow)
Packaging Information
Package Height
1.9 in [49 mm]
Package Length
8.6 in [21.8 cm]
Package Width
6.7 in [17.1 cm]
Package Quantity
1
Shipping (Package) Weight
7.3 oz [208 g]
Performance
Maximum Data Transfer Rate
2000 Mbps (2 Gbps) - Full-Duplex
Buffer Size
48 KB
Compatible Networks
1000 Mbps (1 Gbps)
Full Duplex Support
Yes
MTBF
361, 978 hours
Physical Characteristics
Color
Green
Material
Steel
Product Length
4.7 in [12 cm]
Product Width
0.7 in [18 mm]
Product Height
4.6 in [11.8 cm]
Weight of Product
2.3 oz [66 g]
Power
Power Consumption (In Watts)
3.2W Max
Software
OS Compatibility
Windows® XP, Vista, 7, 8, 8.1, 10, 11
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
Mac OS X® 10.5 to 10.9
Linux 2.4.x and up - LTS Versions only
Microsoft Hyper-V®
Special Notes / Requirements
Note
Not compatible with 10/100 Mbps
What's in the Box
Included in Package
1 - 1 Port PCI Express Gigabit Fiber Network Card
1 - Low Profile Bracket
1 - Instruction Manual

STARTECH PCIe GbE MULTIMODE SC FIBER NETWORK CARD 2YR
