    • (CH)TP-Link CPE605 5GHz 150Mbps 23dBi Outdoor Cpe High-gain Directional Cassegrain Antenna, Qualcomm, 23dBm, 2T2R, 23dBi Directional Antenna, 30+ Km, CPE605

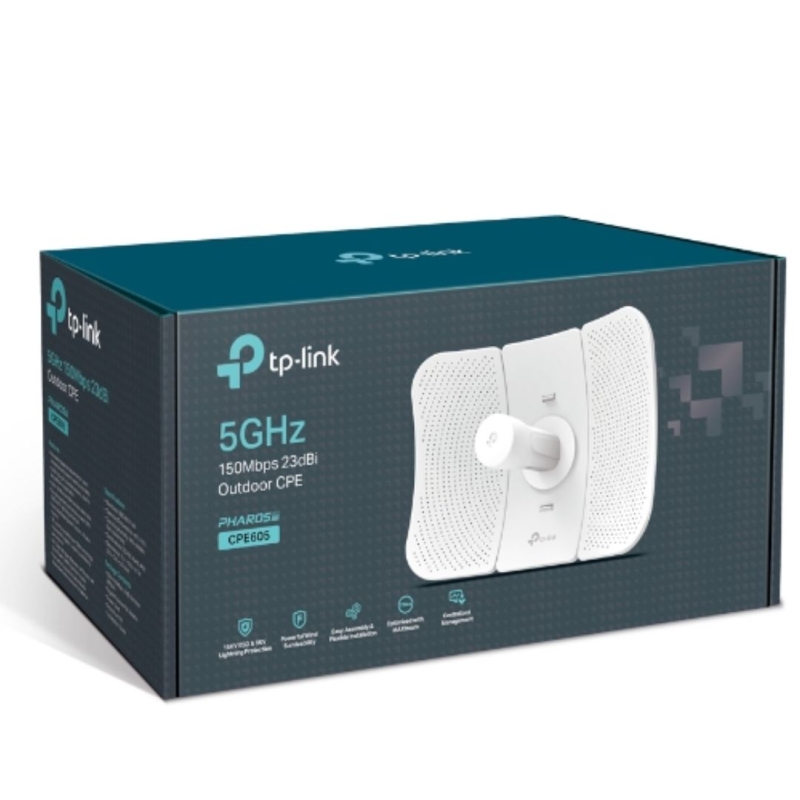

    main product photo

    (CH)TP-Link CPE605 5GHz 150Mbps 23dBi Outdoor Cpe High-gain Directional Cassegrain Antenna, Qualcomm, 23dBm, 2T2R, 23dBi Directional Antenna, 30+ Km, CPE605

    Special Price $129.00 Regular Price $148.00
    SKU:284581
    MPN:CPE605 Link
    Manufacturer:https://www.tp-link.com
    Brand: Tp-link
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare
    • Up to 150Mbps on 5GHz wireless data rates
    • 23dBi high-gain directional antenna and a dedicated metal reflector, ideal for long-distance application
    • Excellent beam directivity, improved latency and noise cancellation
    • Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE605 stable even in strong winds
    • Durable IP65 weatherproof enclosure along with 15 kV ESD and 6 kV lightning protection ensures all-weather suitability
    • TP-Link Pharos MAXtream TDMA technology improves throughput, capacity and latency performance
    • Pharos Control gives administrators a free, centralized management system
    • Passive PoE supports to allow flexible deployment and convenient installation
    HARDWARE FEATURES
    Processor Qualcomm 560MHz CPU, MIPS 74Kc
    Memory 64MB DDR2 RAM,8MB Flash
    Interface 1 10/100Mbps Shielded Ethernet Port (LAN/POE)
    1 Reset Button
    Power Supply Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
    Voltage range: 16-27VDC
    Dimensions ( W x D x H ) 350 x 255 x 207 mm (13.8 x 10.0 x 8.1 in.)
    Antenna Gain 23dBi
    Antenna Beamwidth 7°(Azimuth), 10°(Elevation)
    Protection 15KV ESD Protection
    6KV Lightning Protection
    Enclosure Material: Outdoor PC stabilized plastic
    Weatherproof: IP65 water and dust proof design
    WIRELESS FEATURES
    Wireless Standards IEEE 802.11a/n
    Proprietary Protocol TDMA Mode (with Pharos MAXtream enabled)
    Wireless Speeds Up to 150Mbps (40MHz,Dynamic)
    Up to 72.2Mbps (20MHz,Dynamic)
    Up to 36.1Mbps (10MHz,Dynamic)
    Up to 18.05Mbps (5MHz,Dynamic)
    Frequency 5.15~5.85GHz
    Transmit Power Max. 23dBm (Adjustable power by 1dBm)
    SOFTWARE FEATURES
    IPv6 Yes
    Network Configuration WAN: Static/Dynamic/PPPoE/L2TP/PPTP
    LAN: Static/Dynamic/DHCP
    Forwarding: ALG/UPnP/Virtual Server/Port Trigger
    Security: SPI Firewall/ Ping Forbidden/DoS Protection
    Access Control
    Static Routing
    Bandwidth Control
    IP & MAC Binding
    Wireless Configurations Pharos MAXtream TDMA Technology
    Selectable Channel Width: 5/10/20/40MHz
    Auto Channel Selection
    Transmit Power Control
    Dynamic Frequency Selection(DFS)
    WDS Enable/Disable
    Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption,
    64/128/152-bit WEP Encryption
    SSID Broadcast Enable/Disable
    Multi-SSID with VLAN Tagging(AP Mode only)
    Distance/ACK Timeout Setting
    Wireless MAC Address Filter
    Wireless Advanced:
    Beacon Interval/RTS Threshold/Fragmentation Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
    Management Discovery and Remote Management via Pharos Control application
    HTTP/HTTPS Web-based management
    System log
    SNMP Agent(v2c)
    Ping Watch Dog
    Dynamic DDNS
    SSH Server
    System Tools Indicators:Signal Strength/Noise/Transmit CCQ/CPU/Memory
    Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
    Spectrum Analyzer
    Speed Test
    Ping
    Traceroute
    System-level Optimizations Optimized IGMP Snooping/Proxy for multicast applications
    Hardware watch dog
    POE ADAPTER FEATURES
    Dimensions(W x D x H) 85.8×43.9×29.7 mm
    Interfaces 1 AC Jack with Earth Ground
    1 10/100Mbps Shielded Ethernet Port (Power + Data)
    1 10/100Mbps Shielded Ethernet Port (Data)
    Button Remote Reset Button
    Power Status LEDs Green
    Input 100-240VAC, 50/60Hz
    Output 24VDC, 0.6A Max
    +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
    Efficiency >84.29%
    Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
    OTHERS
    Certification CE, FCC, RoHS, IP65
    Package Contents Outdoor Wireless CPE
    24V 0.5A Passive PoE Adapter
    Pole Mounting Straps
    AC Power Cord
    Installation Guide
    System Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
    Note: We recommend you to use one of following Web browsers for an improved user experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
    Environment Operating Temperature: -40℃~70℃ (-40℉~158℉)
    Storage Temperature: -40℃~70℃ (-40℉~158℉)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~95% non-condensing
    (CH)TP-Link CPE605 5GHz 150Mbps 23dBi Outdoor CPE High-gain Directional Cassegrain Antenna, Qualcomm, 23dBm, 2T2R, 23dBi Directional Antenna, 30+ km,
