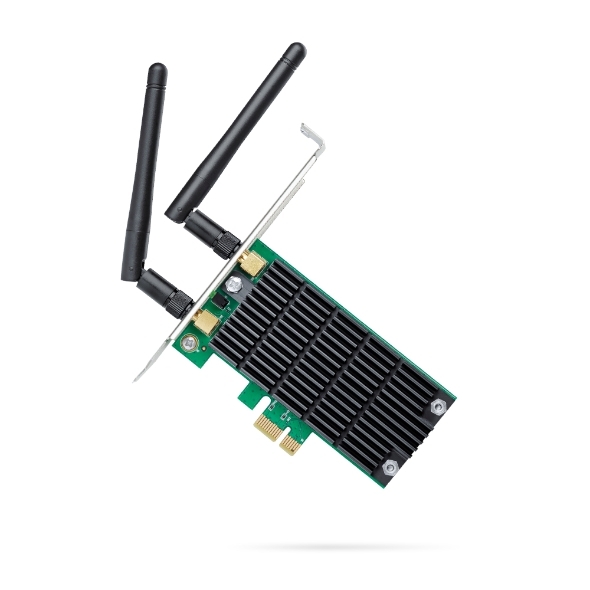

    TP-Link Archer T4E AC1200 Wireless Dual Band PCIe Adapter, 867Mbps @ 5Ghz, 300Mbps @ 2.4Ghz Archer T4E

    Special Price $44.00 Regular Price $50.00
    SKU:272641
    MPN:Archer T4E Link
    Manufacturer:https://www.tp-link.com
    Brand: Tp-link
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare
    AC1200 Wireless Dual Band PCI Express Adapter

    Easy Installation – Plug the adapter into an available PCI-E slot to upgrade your desktop
    High-Speed Wi-Fi – Up to 1200 Mbps Wi-Fi speeds (867 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band)
    802.11ac Dual Band – 3 times faster than the 802.11n standard, perfect for high-intensity network usage
    Beamforming – Wi-Fi signals are strengthened towards a certain direction where client exists
    Multiple-Size Brackets – Low profile and full height brackets are both provided, suitable for all PCs
    2×2 MIMO – Users can easily access a high-speed wireless connection
    Broad Wireless Range – Two external antennas ensure greater Wi-Fi coverage and enhanced stability
    HARDWARE FEATURES
    Interface PCI Express
    Dimensions ( W x D x H ) 4.8 x 4.5 x 0.85 in (120.8*115.2*21.5 mm)
    Antenna Type 2 Dual Band Detachable Antennas
    WIRELESS FEATURES
    Wireless Standards IEEE 802.11ac/n/a 5 GHz
    IEEE 802.11n/g/b 2.4 GHz
    Signal Rate 5 GHz
    11ac: Up to 867 Mbps(dynamic)
    11n: Up to 300 Mbps(dynamic)
    11a: Up to 54 Mbps(dynamic)

    2.4 GHz
    11n: Up to 300 Mbps(dynamic)
    11g: Up to 54 Mbps(dynamic)
    11b: Up to 11 Mbps(dynamic)
    　
    Reception Sensitivity 5 GHz :
    11ac HT80: -59.5 dBm
    11ac HT40: -63 dBm
    11ac HT20: -68 dBm
    11n HT40: -70 dBm
    11n HT20: -73 dBm
    11a 54Mbps: -76 dBm
    11a 6Mbps: -92 dBm

    2.4GHz :
    11n HT40: -67.5 dBm
    11n HT20: -70 dBm
    11g 54Mbps: -72 dBm
    11b 11Mbps: -86.5 dBm
    　
    Transmit Power 5 GHz : 24 dBm(FCC) / 23dBm(CE) (EIRP)
    2.4 GHz : 25 dBm(FCC) / 20dBm(CE) (EIRP)
    Wireless Modes Infrastructure mode
    Wireless Security Support 64/128 bit WEP, WPA/WAP2, WPA-PSK/WPA2-PSK, 802.1x
    Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
    OTHERS
    Certification CE, FCC, RoHS
    Package Contents AC1200 Wireless Dual Band PCI Express Adapter Archer T4E
    Low-Profile Bracket
    Quick Installation Guide
    Resource CD
    　
    System Requirements Windows 10/8.1/8/7/XP (32/64bit)
    Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
    Storage Temperature: -40℃~70℃ (-40℉~158℉)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
    TP-Link Archer T4E AC1200 Wireless Dual Band PCIe Adapter, 867Mbps @ 5Ghz, 300Mbps @ 2.4Ghz
