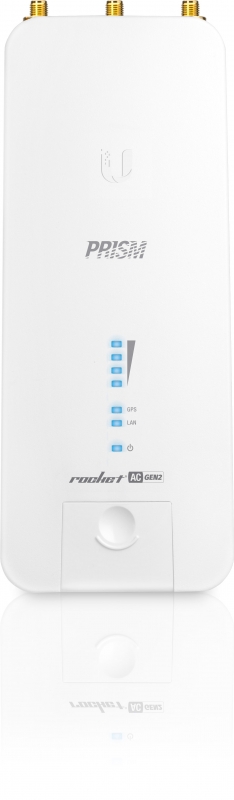

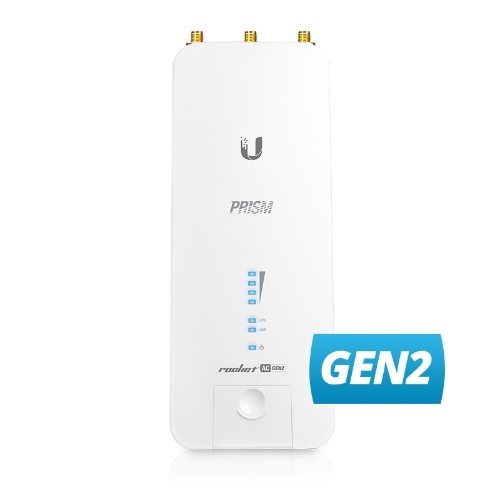

Ubiquiti Rocket Ac Prism Gen2 5ghz Radio With Speeds Up To 500+mbps Rp-5ac-gen2
| SKU: | 249221 |
|---|---|
| MPN: | RP-5AC-GEN2 Link |
| Manufacturer: | https://www.ubnt.com/ |
| Brand: | Ubiquiti |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
Management Wi-Fi Radio
The Rocket® Prism AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge Protection
The Rocket® Prism AC features enhanced protection against ESD events.
GPS Synchronization
The Rocket® Prism AC supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughout than competing solutions.
LEARN MORE
Revolutionary Filtering Technology
Ubiquiti’s patented airPrism technology provides breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments.
Designed for High Performance
The Rocket® Prism AC features EMI-shielded metal housing, GPS, airPrism circuitry, and the airView® real-time spectrum analyzer to deliver maximum spectral efficiency/throughput.
Full-Band 5 and 2.4 GHz Coverage
The Rocket® Prism 5AC delivers complete coverage of the 5 GHz spectrum with a single radio.
The 2.4 GHz band is covered by the Rocket Prism 2AC.
Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
Specifications
Full-Band 5 and 2.4 GHz Coverage
The Rocket®5ac Prism covers the full 5 GHz radio band and incorporates both airMAX ac and airPrism technologies for maximum performance of wireless links in high-density areas.
Revolutionary Filtering Technology
Ubiquiti’s patented airPrism technology provides breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments.
Designed for High Performance
The Rocket5ac Prism features EMI-shielded metal housing, GPS, airPrism circuitry, and the airView® real-time spectrum analyzer to deliver maximum spectral efficiency/throughput.
SPECIFICATION
Processor Specs: Atheros MIPS 74Kc, 720 MHz
Memory: 128 MB DDR2 SDRAM, 16 MB NOR Flash
Operation mode: Access Point, Station
Encryption: WPA2 AES Only
Net. Interface: (1) 10/100/1000 Ethernet Port
Max. Power Consumption: 8.5W
Dimensions: 88 x 40 x 230 mm (3.47 x 1.58 x 9.06")
Weight: 400 g (14.11 oz)
Power Supply: 24V, 0.5A Gigabit PoE
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Temperature: 40 to 80° C (-40 to 176° F)
Operating Humidity: 5 to 95% Noncondensing
Vendor Info
The Rocket®5ac Prism covers the full 5 GHz radio band and incorporates both airMAX ac and airPrism technologies for maximum performance of wireless links in high-density areas.
Revolutionary Filtering Technology
Ubiquiti’s patented airPrism technology provides breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments.
Designed for High Performance
The Rocket5ac Prism features EMI-shielded metal housing, GPS, airPrism circuitry, and the airView® real-time spectrum analyzer to deliver maximum spectral efficiency/throughput.
SPECIFICATION
Processor Specs: Atheros MIPS 74Kc, 720 MHz
Memory: 128 MB DDR2 SDRAM, 16 MB NOR Flash
Operation mode: Access Point, Station
Encryption: WPA2 AES Only
Net. Interface: (1) 10/100/1000 Ethernet Port
Max. Power Consumption: 8.5W
Dimensions: 88 x 40 x 230 mm (3.47 x 1.58 x 9.06")
Weight: 400 g (14.11 oz)
Power Supply: 24V, 0.5A Gigabit PoE
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Operating Temperature: 40 to 80° C (-40 to 176° F)
Operating Humidity: 5 to 95% Noncondensing
