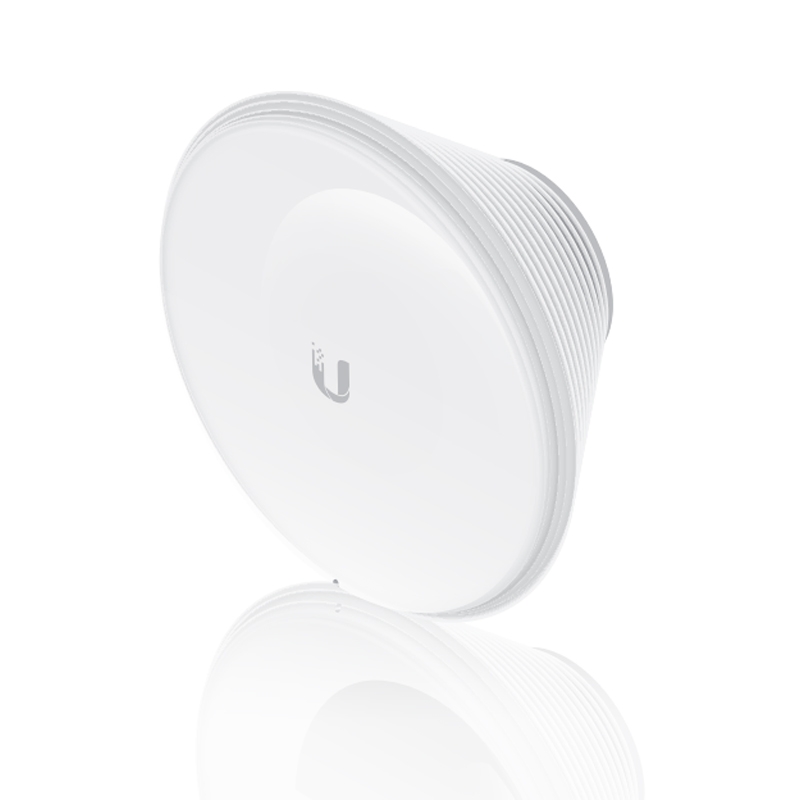

Ubiquiti 5ghz Prismap Antenna 45 Degree Prismap-5-45
| SKU: | 258880 |
|---|---|
| MPN: | HORN-5-45 Link |
| Manufacturer: | https://www.ubnt.com/ |
| Brand: | Ubiquiti |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
Modular Design
The isolation antennas are interchangeable and feature high-performance beam patterns for a range of demanding deployment needs. Combined with the PrismStation 5AC or IsoStation radio, the system gets maximum gain out of the smallest footprint.
Symmetrical horn antenna
30° and 45° versions offer breakthrough scalability options for wireless systems. Unique beam performance and great co‐location characteristics allow for a higher density of sectors than traditional sector technology.
Asymmetrical horn antennas
60° and 90° versions have naturally attenuated side lobes and extremely low back radiation. They offer the best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.
Specifications
Model Comparison
 PrismAP-5-30 |  PrismAP-5-45 |  PrismAP-5-60 |  PrismAP-5-90 | |
|---|---|---|---|---|
| Gain | 19 dBi | 15.5 dBi | 16 dBi | 13 dBi |
| Frequency | 5.15 ‑ 5.85 GHz | 5.15 ‑ 5.85 GHz | 5.15 ‑ 5.85 GHz | 5.15 ‑ 5.85 GHz |
| Beam Width | 30° | 45° | 60° | 90° |
