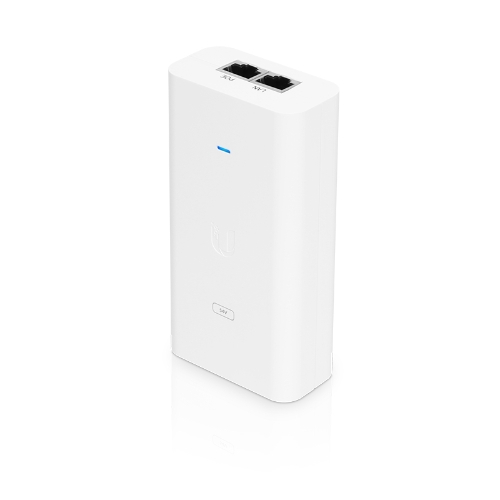

Ubiquiti Poe Injector 54v 80w For Edgepoint Poe-54v-80w
| SKU: | 249220 |
|---|---|
| MPN: | POE-54V-80W |
| Manufacturer: | https://www.ubnt.com/ |
| Brand: | Ubiquiti |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
Specifications
Ubiquiti's EdgePoint POE-54V-80W PoE Injector is designed to power Ubiquiti's EP-R8 and EP-S16 EdgePoint models. Australian (AU) Power cable included
• Dimensions 123 x 65 x 34 mm
• Weight 299 g
• Output Voltage 54VDC @ 1.5A
• LAN Activity Indicator No
• Gigabit LAN Port Yes
• Remote Reset Capability No
• Reset Button 100-240AC @ 50/60Hz
• Input Voltage 100-240AC @ 50/60Hz
• Input Current 0.8A @ 120VAC
• 0.4A @ 240VAC
• Inrush Current <80A Peak @ 120VAC,
• <120A Peak @ 230VAC
• Efficiency 87+%
• Output Ripple 1% Max
• Switching Frequency 100 kHz Max.
• Line Regulation ± 1%
• Load Regulation ± 3%
• 4-Pair Powering Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-)
• Operating Temperature 0 to 40° C (32 to 104° F)
• Storage Temperature -30 to 70° C (-22 to 158° F)
• Operating Humidity 35 to 95% Noncondensing
• AC Connector IEC-320 C6
• Data IN / POE RJ45 Shielded Socket
• Surge Protection Difference and Common Mode
• Clamping Protection 11V Data, 60V Power
• Max. Surge Discharge 1500A (8/20 µs) Power
• Peak Pulse Current 36A (10/1000 µs) Data
• Shunt Capacitance <5 pF data
• Response Time <1 ns
• Compliance IEC 60950-1:2005+A1 UL60950-1 EN55022:2010, EN55024:2010 FCC Class B AC Cable with Earth Ground RCM
