    • Ubiquiti 5 GHz PowerBeam AC Gen2 400 mm ISO PBE-5AC-ISO-Gen2

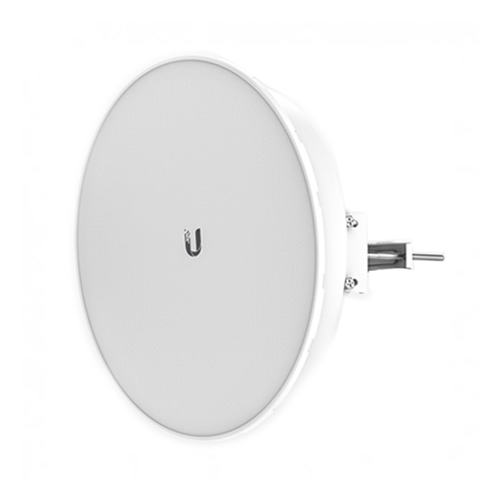

    main product photo

    Ubiquiti 5 GHz PowerBeam AC Gen2 400 mm ISO PBE-5AC-ISO-Gen2

    $244.00
    SKU:266952
    MPN:PBE-5AC-ISO-Gen2
    Manufacturer:https://www.ubnt.com/
    Brand: Ubiquiti
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare

    Performance Breakthrough

    airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

    　

    Innovative Mechanical Design

    The integrated isolator design improves RF isolation to spatially filter out interference, and the metal-plated interior of the rear housing enhances RF shielding.

    　

    Superior RF Isolation

    Compare the two near-field plots, and note the superior performance of the integrated RF isolator. Both near-field plots are displayed in watts and use a linear scale.

    　

    Superior Processing

    Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

    　

    Advanced Software Technology

    Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

    　

    Model Comparison

    　
    PBE-5AC-400-ISO
    PBE-5AC-400-ISO
    PBE-5AC-500-ISO
    PBE-5AC-500-ISO
    PBE-5AC-ISO-Gen2
    PBE-5AC-ISO-Gen2
    Frequency 5 GHz 5 GHz 5 GHz
    Throughput 450+ Mbps 450+ Mbps 450+ Mbps
    Range 25+ km 25+ km 25+ km
    Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

    Dimensions
    459 x 459 x 261 mm (18.07 x 18.07 x 10.28")
    Weight (Mount Included)
    3.22 kg (7.10 lbs)
    Power Supply
    24V, 0.5A Gigabit PoE Adapter (Included)
    Max. Power Consumption
    8.5W
    Power Method
    Passive PoE (Pairs 4, 5+; 7, 8 Return)
    Supported Voltage Range
    20 to 26VDC
    Gain
    25 dBi
    Networking Interface
    (1) 10/100/1000 Ethernet Port
    Processor Specs
    MIPS 74Kc
    Memory
    64 MB
    LEDs
    Power, Ethernet, (4) Signal Strength
    Channel Sizes
    PtP Mode - 10/20/30/40/50/60/80 MHz
    PtMP Mode- 10/20/30/40 MHz
    Enclosure Characteristics
    Antenna Feed- Outdoor UV Stabilized Plastic
    Dish Reflector- Powder-Coated SPCC
    Mounting Pole-Mounting Kit (Included)
