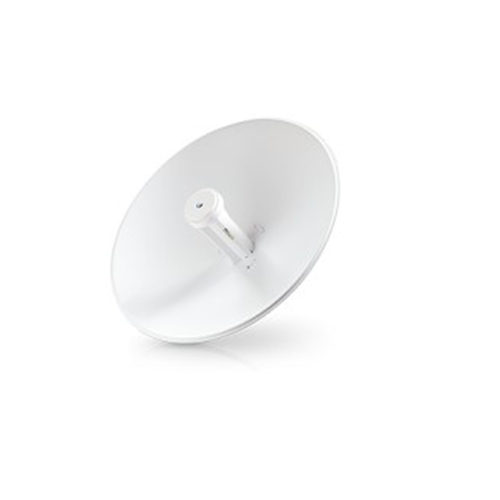

Ubiquiti 2.4 Ghz Powerbeam Ac Airmax® Ac Bridge With Dedicated Wi-fi Management Pbe-2ac-400
| SKU: | 266949 |
|---|---|
| MPN: | PBE-2AC-400 Link |
| Manufacturer: | https://www.ubnt.com/ |
| Brand: | Ubiquiti |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
Management Wi-Fi Radio
The PowerBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Mounting and Surge Protection
Featuring enhanced protection against ESD events, the PowerBeam® AC offers a more robust mount with a convenient lifting loop or handle.
Integrated Radio Design
Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.
Plug and Play Installation
The PowerBeam® AC requires no tools for assembly; only a single wrench is required for pole-mounting.
Superior Processing
Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.
Incredible Antenna “Beam” Performance
The form factor of the PowerBeam® AC features the highest gain for its size. The PowerBeam AC’s excellent beam directivity provides the best performance in high-noise environments.
Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
Specifications
Model Comparison
 |  |  |  | |
|---|---|---|---|---|
| Frequency | 2.4 GHz | 5 GHz | 5 GHz | 5 GHz |
| Throughput | 330+ Mbps | 450+ Mbps | 450+ Mbps | 450+ Mbps |
| Range | 20+ km | 25+ km | 30+ km | 25+ km |
| Management Radio | ✔ | ✔ |
Vendor Info
Ubiquiti Networks launches the latest generation of airMAX® CPE (Customer Premises Equipment), the PowerBeam® 2AC, with dedicated Wi-Fi management.
Powerful Wireless Features
• High-performance airMAX ac CPE
• airMAX ac Protocol Support
• Long-Range Point-to-Point (PtP)
Link Mode
• Selectable Channel Width
• PtP: 10/20/40 MHz
• PtMP: 10/20/40 MHz
• Automatic Channel Selection
• Transmit Power Control:
Automatic/Manual
• Automatic Distance Selection
(ACK Timing)
• Strongest WPA2 Security
Usability Enhancements
• airMagic® Channel Selection Tool
• Redesigned User Interface
• Dynamic Configuration Changes
• Instant Input Validation
• HTML5 Technology
• Optimization for Mobile Devices
• Detailed Device Statistics
• Comprehensive Array of Diagnostic
Tools, Including RF Diagnostics and
airView® Spectrum Analyzer
Specifications:-
Dimensions with Radome 420 x 420 x 289 mm (16.54 x 16.54 x 11.38")
Weight (Mount Included) 1.795 kg (4.809 lbs)
Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)
Max. Power Consumption 7.5W
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range 22 to 26VDC
Gain 18 dBi
Networking Interface (1) 10/100/1000 Ethernet Port
Processor Specs MIPS 74Kc
Memory 64 MB
LEDs Power, Ethernet, (4) Signal Strength
Channel Sizes
PtP Mode PtMP Mode
10/20/40 MHz 10/20/40 MHz
Enclosure Characteristics
Antenna Feed Dish Reflector
Outdoor UV Stabilized Plastic Powder-Coated SPCC
Mounting Pole-Mounting Kit (Included)
Wind Loading 342.5 N @ 200 km/h (77 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
RoHS Compliance Yes
Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1
