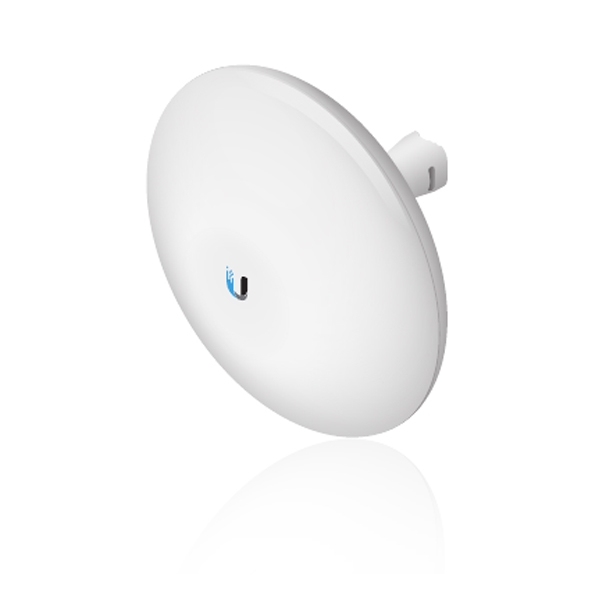

    main product photo

    Ubiquiti Nanobeam 2ac 13dbi 2.4ghz 802.11n Mimo Antenna 150+ Mbps Range 10+ Km Nbe-2ac-13

    $185.00
    SKU:258886
    MPN:NBE-2AC-13 Link
    Manufacturer:https://www.ubnt.com/
    Brand: Ubiquiti
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare

    Management Wi-Fi Radio

    The NanoBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.



    　

    Improved Surge Protection

    The NanoBeam® AC features enhanced protection against ESD events.

    　

    Superior Processing

    Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

    Incredible Antenna “Beam” Performance

    The form factor of the NanoBeam® AC features the highest gain for its size. The NanoBeam AC’s excellent beam directivity provides the best performance in high-noise environments.

    　

    Performance Breakthrough

    airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

    　

    Advanced Software Technology

    Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

    　

    Plug and Play Installation

    The NanoBeam® AC mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.

    　

    Now with airOS®8

    airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

    Model Comparison

    　
    NBE-M5-16
    NBE-M5-16
    NBE-M5-19
    NBE-M5-19
    NBE-2AC-13
    NBE-2AC-13
    NBE-5AC-Gen2
    NBE-5AC-Gen2
    Frequency 5 GHz 5 GHz 2.4 GHz 5 Ghz
    Throughput 150+ Mbps 150+ Mbps 330+ Mbps 450+ Mbps
    Range 10+ km 15+ km 15+ km 15+ km
    Improved Wide Bandwidth Antenna 　 　   ✔
    Management Radio 　 　 ✔ ✔
    The NanoBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

    Innovative Mechanical Design

    • Built-in mechanical tilt The mounting bracket conveniently offers 20° of uptilt and up to 20° of downtilt.
    • Quick assembly The number of fasteners was reduced to simplify assembly. Tools are required only when the technician mounts the NanoBeam on the pole.
    • Easy removal The antenna feed can be detached with the push of a button.

    Corrosion Resistance

    • Fasteners GEOMET®-coated for improved corrosion resistance when compared with zinc-plated fasteners.

    SPECIFICATION

    Processor Specs: Atheros MIPS 74Kc, 560 MHz
    Memory: 64 MB DDR2, 8 MB Flash
    Operating Frequency: 2412 - 2472 MHz Worldwide
    Net. Interface: (1) 10/100/1000 Ethernet Port
    Gain: 13 dBi
    Polarization: Dual Linear
    Max. Power Consumption: 8.5W
    Dimensions: 189 x 189 x 125 mm (7.44 x 7.44 x 4.92")
    Weight: 0.530 kg (1.17 lb)
    Power Supply (PoE): 24V, 0.5A PoE
    Mounting: Pole-Mount (Kit Included), Wall-Mount
    Operating Temperature: -40 to 80° C (-40 to 176° F)
    Operating Humidity: 5 to 95% Noncondensing
