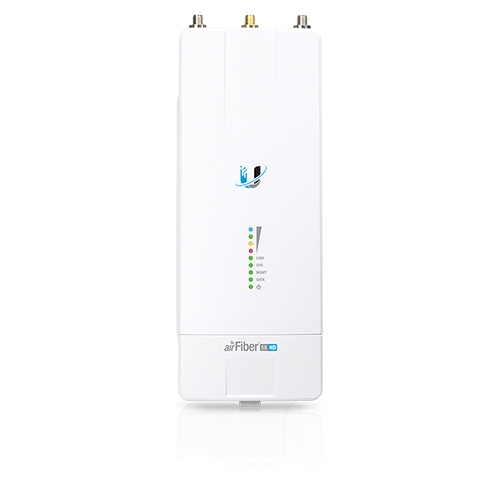

Ubiquiti Airfiber 5xhd Af-5xhd
$758.00
| SKU: | 259757 |
|---|---|
| MPN: | AF-5XHD Link |
| Manufacturer: | https://www.ubnt.com/ |
| Brand: | Ubiquiti |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
Complete Custom Hardware for the WISP, right down to the Silicon
Our core communications processing engine surpasses all of the limitations inherent to generic Wi‐Fi chips.
Game-Changing LTU Technology
Spectral Efficiency Comparison of 802.11n, 802.11ac, airFiber Original, and LTU by year.
Industry Leading Complete Software Suite
IP-67 Durability
airFiber 5XHD is Water Resistant and Perfect for any Weather Conditions.
Specifications
▼
Model Comparison
 AF-5XHD |  AF-5X | |
|---|---|---|
| IP-67 | ✔ | - |
| GPS | External, Magnetic Base | External, Magnetic Base |
| Max Throughput | 1Gbps+ | 500+ Mbps |
| Max PPS | 2+ Million | 1,000,000 |
| Spectral Efficiency | 21,2 bps/Hz | 17,1 bps/Hz |
| Modulation Symbols | 4096 QAM | 1024 QAM |
| Spectral Widths Supported | 10/20/30/40/50/60/80/100 MHz | 10/20/30/40/50 MHz |
| UNMS App Bluetooth Support | ✔ | - |
Vendor Info
▼
Ubiquiti airFiber® X, is a 2 GHz carrier backhaul radio. It is a modular Ubiquiti airFiber radio system that will serve a wide range of frequencies and is designed to be compatible with a variety of Ubiquiti® antennas. Building upon the proven design of the airMAX® Rocket™ system, airFiber X allows you to customize Ubiquiti airFiber backhaul links or upgrade existing Rocket Point to Point (PtP) links. The first airFiber X model is the AF-2X model for use in the 5 GHz frequency band.
Deployment Flexibility
The compact form factor allows the airFiber X to be used with airFiber Slant 45 antennas, or instantly upgrade a 5 GHz Rocket™link that uses a RocketDish™RD‑5G30/RD‑5G34* antenna.
Optimal Operation and Channel Configuration
Channel width flexibility allows you to independently configure TX and RX channel frequencies and place them anywhere within the radio band to avoid local interference. You also have the ability to program different uplink and downlink duty cycles to support asymmetric traffic requirements.
Up to 500+ Mbps Real Throughput, Up to 200+ km Range
2.4, 3, or 5 GHz (Full-Band Certification including DFS)
Ubiquiti’s INVICTUS™ Custom Silicon
Features
Engineered for Performance
Ultra-Low Latency with HDD Technology
Co-Location
GPS Synchronization
Clean Power Output
Deployment Flexibility
The compact form factor allows the airFiber X to be used with airFiber Slant 45 antennas, or instantly upgrade a 5 GHz Rocket™link that uses a RocketDish™RD‑5G30/RD‑5G34* antenna.
Optimal Operation and Channel Configuration
Channel width flexibility allows you to independently configure TX and RX channel frequencies and place them anywhere within the radio band to avoid local interference. You also have the ability to program different uplink and downlink duty cycles to support asymmetric traffic requirements.
Up to 500+ Mbps Real Throughput, Up to 200+ km Range
2.4, 3, or 5 GHz (Full-Band Certification including DFS)
Ubiquiti’s INVICTUS™ Custom Silicon
Features
Engineered for Performance
Ultra-Low Latency with HDD Technology
Co-Location
GPS Synchronization
Clean Power Output
Reviews
▼
