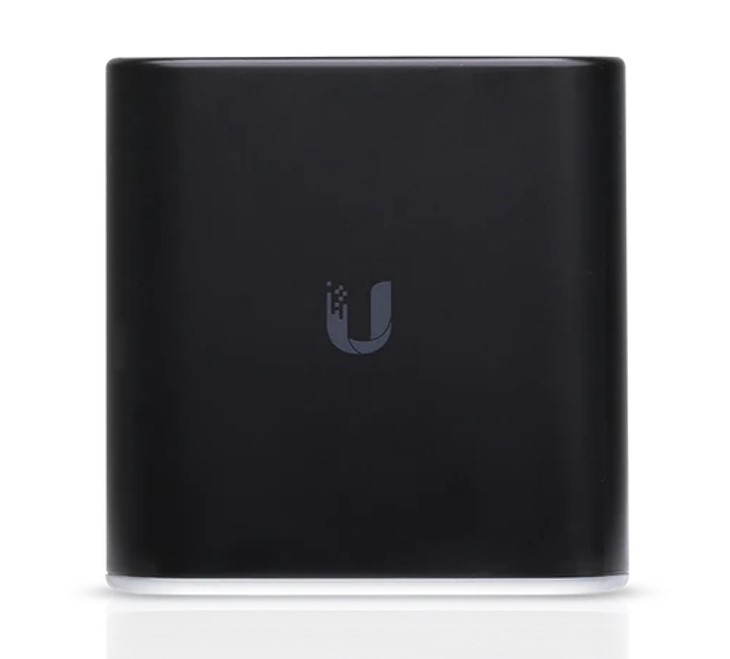

Ubiquiti Aircube Isp Wi-fi Access Point Acb-isp
$64.00
| SKU: | 266954 |
|---|---|
| MPN: | ACB-ISP Link |
| Manufacturer: | https://www.ubnt.com/ |
| Brand: | Ubiquiti |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
Super Antenna
Innovative Super Antenna provides wide-area coverage beyond regular Wi-Fi access points.
24V PoE Passthrough
The airCube can be powered by and provide power to an airMAX CPE using 24V PoE.
UNMS Mobile Support
Use the intuitive UNMS Mobile app for iOS and Android to install and configure airCube.
Sleek Design
The airCube's attractive design means it can be positioned anywhere in the room, improving Wi-Fi performance.
Specifications
▼
Model Comparison
 ACB-ISP |  ACB-AC | |
|---|---|---|
| 24V PoE Passthrough | ✔ | ✔ |
| Power Supply | 24V PoE or 5V Micro USB (Not included) | 24V PoE or 24V PSU (Included) |
| Wi-Fi Standards | 802.11n 2x2 | 802.11ac 2x2 |
| Ethernet Ports | 4x 10/100 Mbps | 4x Gigabit |
| Frequency | 2.4 GHz | 2.4/5 GHz Simultaneously |
| UMobile & UNMS Support | ✔ | ✔ |
Vendor Info
▼
Product Highlights-
• (4) 10/100 Fast Ethernet Ports
• 24V PoE Passthrough for airMAX CPE
• 802.11n, 2x2 MIMO Technology
• Up to 300 Mbps in the 2.4 GHz Radio Band
• Powered by 24V Passive PoE or 2A Micro USB Adapter (Not
Included)
Features:
FDimensions 87.80 x 89.50 x 89.25 mm
(3.46 x 3.52 x 3.51")
Weight 215 g (7.58 oz)
Power Supply 5V
Power Method PoE 24V In on LAN Port 1 or
2A Micro USB Adapter (Not Included)
Supported Power Voltage 4.95-5.05V
Max. Power Consumption 5W
PoE Out Controllable 24V PoE Out (+4, 5; -7, 8) on WAN Port
Management Interface Wi-Fi / Ethernet
Networking Interface (4) 10/100 Fast Ethernet Ports
LED Status
Max. TX Power 22 dBm
Antenna Gain 4 dBi
Max. Speeds 300 Mbps
Enclosure Characteristics Black Plastic
ESD/EMP Protection ±24 kV RJ-45 Interface
Operating Temperature -10 to 50° C (-14 to 122° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
• (4) 10/100 Fast Ethernet Ports
• 24V PoE Passthrough for airMAX CPE
• 802.11n, 2x2 MIMO Technology
• Up to 300 Mbps in the 2.4 GHz Radio Band
• Powered by 24V Passive PoE or 2A Micro USB Adapter (Not
Included)
Features:
FDimensions 87.80 x 89.50 x 89.25 mm
(3.46 x 3.52 x 3.51")
Weight 215 g (7.58 oz)
Power Supply 5V
Power Method PoE 24V In on LAN Port 1 or
2A Micro USB Adapter (Not Included)
Supported Power Voltage 4.95-5.05V
Max. Power Consumption 5W
PoE Out Controllable 24V PoE Out (+4, 5; -7, 8) on WAN Port
Management Interface Wi-Fi / Ethernet
Networking Interface (4) 10/100 Fast Ethernet Ports
LED Status
Max. TX Power 22 dBm
Antenna Gain 4 dBi
Max. Speeds 300 Mbps
Enclosure Characteristics Black Plastic
ESD/EMP Protection ±24 kV RJ-45 Interface
Operating Temperature -10 to 50° C (-14 to 122° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
