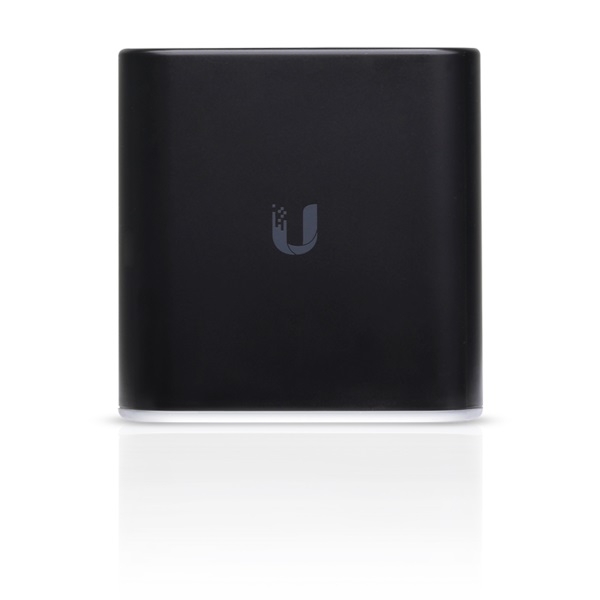

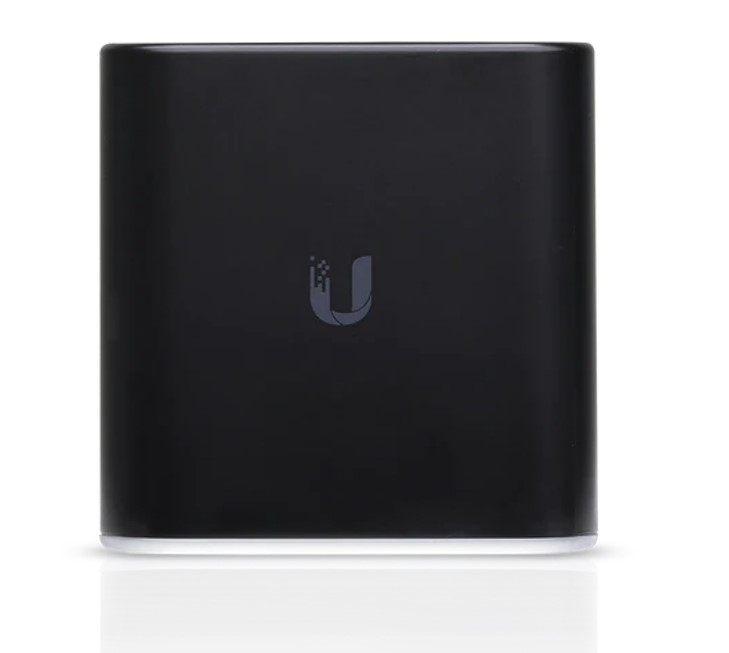

Ubiquiti Aircube Wireless Dual-band Wi-fi Access Point Acb-ac-au
Special Price $149.00 Regular Price $171.00
| SKU: | 258214 |
|---|---|
| MPN: | ACB-AC Link |
| Manufacturer: | https://www.ubnt.com/ |
| Brand: | Ubiquiti |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
UNMS Support
Ubiquiti Network Management Software simplifies remote network management.
Super Antenna
Innovative Super Antenna provides wide-area coverage beyond regular Wi-Fi access points.
24V PoE Passthrough
The airCube can be powered by and provide power to an airMAX CPE using 24V PoE.
UNMS Mobile Support
Use the intuitive UNMS Mobile app for iOS and Android to install and configure airCube.
Sleek Design
The airCube's attractive design means it can be positioned anywhere in the room, improving Wi-Fi performance.
Specifications
▼
Model Comparison
 ACB-ISP |  ACB-AC | |
|---|---|---|
| 24V PoE Passthrough | ✔ | ✔ |
| Power Supply | 24V PoE or 5V Micro USB (Not included) | 24V PoE or 24V PSU (Included) |
| Wi-Fi Standards | 802.11n 2x2 | 802.11ac 2x2 |
| Ethernet Ports | 4x 10/100 Mbps | 4x Gigabit |
| Frequency | 2.4 GHz | 2.4/5 GHz Simultaneously |
| UMobile & UNMS Support | ✔ | ✔ |
Vendor Info
▼
Once installed, this Wi-Fi access point supports the 802.11ac Wi-Fi network standard and operates on both the 2.4 GHz and 5 GHz frequencies supporting wireless data transfer rates of up to 1167 Mbps. If that's not enough, clients can plug Ethernet-enabled devices in to any of the four Gigabit Ethernet ports for a more reliable wired network connection. The airCube is powered by a 24V Passive PoE connection or plug in the included power adapter when PoE power is unavailable.
PRODUCT HIGHLIGHTS
802.11ac Wi-Fi Network Standard
Up to 1167 Mbps Wi-Fi Data Throughput
2.4 GHz & 5 GHz Frequencies
Internal Dual-Band Antennas
Wireless Performance
Dual-band, 802.11ac, 2x2 MIMO technology for maximum wireless performance:
• 2.4 GHz radio band speeds of up to 300 Mbps
• 5 GHz radio band speeds of up to 866.7 Mbps
Versatile Power Options
Convenient PoE passthrough to power a 24 V airMAX CPE device, so you can use a single PoE adapter to power both devices.
To provide sufficient power for PoE passthrough:
• The airCube AC requires the included power adapter or 24V, 1A PoE input
Power Supply 24 VDC
PoE PoE Out
Controllable 24 V PoE out (+4, 5; -7, 8) on WAN port
Management Interface Wi-Fi / Ethernet
Networking Interface 4 x Gigabit Ethernet ports
Antenna Gain 2.4 GHz
4 dBi
5 GHz
5 dBi
Temperature & Humidity Operating Temperature
-14 to 122° F / -10 to 50°C
Operating Humidity
5 to 95% non-condensing
PRODUCT HIGHLIGHTS
802.11ac Wi-Fi Network Standard
Up to 1167 Mbps Wi-Fi Data Throughput
2.4 GHz & 5 GHz Frequencies
Internal Dual-Band Antennas
Wireless Performance
Dual-band, 802.11ac, 2x2 MIMO technology for maximum wireless performance:
• 2.4 GHz radio band speeds of up to 300 Mbps
• 5 GHz radio band speeds of up to 866.7 Mbps
Versatile Power Options
Convenient PoE passthrough to power a 24 V airMAX CPE device, so you can use a single PoE adapter to power both devices.
To provide sufficient power for PoE passthrough:
• The airCube AC requires the included power adapter or 24V, 1A PoE input
Power Supply 24 VDC
PoE PoE Out
Controllable 24 V PoE out (+4, 5; -7, 8) on WAN port
Management Interface Wi-Fi / Ethernet
Networking Interface 4 x Gigabit Ethernet ports
Antenna Gain 2.4 GHz
4 dBi
5 GHz
5 dBi
Temperature & Humidity Operating Temperature
-14 to 122° F / -10 to 50°C
Operating Humidity
5 to 95% non-condensing
