CISCO N2K-C2248TP-E-1GE (48X100/ 1000 T+4X10GE),AIRFLOW/PS OPTION N2K-C2248TP-E

$16,171.00
SKU:237265
MPN:N2K-C2248TP-E Link
Manufacturer:http://www.cisco.com/c/en/
Brand: Cisco
Warranty:1 Year Manufacturer's return to base
Availability:

Preorder 2-3 weeks

Fright Estimate

Cisco is introducing the Cisco Nexus® 2248TP-E Fabric Extender (Figure 1). The Cisco Nexus 2248TP-E meets general-purpose data center needs. In addition, it has 32-MB buffers and enhanced statistics counters specifically optimized for data center applications such as big data, parallel storage, and video editing applications. The Cisco Nexus 2248TP-E comes with 48 100/1000BASE-T host ports and four Enhanced Small Form-Factor Pluggable (SFP+) 10 Gigabit Ethernet uplinks.

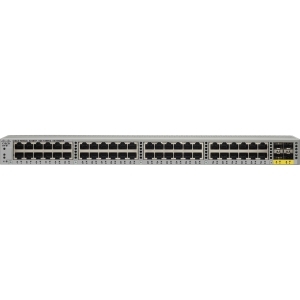

Figure 1. Cisco Nexus 2248TP-E

The Cisco Nexus 2248TP-E works in conjunction with a parent Cisco Nexus 5000 or 7000 Series Switch. The minimum software release required for Cisco Nexus 5000 Series Switches to support the Cisco Nexus 2248TP-E is Cisco ® NX-OS Software Release 5.1(3)N1(1). The Cisco Nexus 7000 Series will support the Cisco Nexus 2248TP-E in a future software release. All Cisco Nexus 2000 Series Fabric Extenders can be mixed and matched with a parent switch to provide a variety of connectivity options.

Cisco Nexus 2248TP-E Features

The Cisco Nexus 2248TP-E Gigabit Ethernet fabric extender offers the following features:

• Forty-eight 100/1000BASE-T server access ports

• Four 10 Gigabit Ethernet lossless uplink and fabric ports using Cisco Fabric Extender Transceiver (FET) SFP+, short-reach (SR) and long-reach (LR) SFP+, or CX1 direct-attach copper interconnects

• Connection to the Cisco Nexus 5000 Series parent switch at first customer shipment (FCS; Cisco Nexus 5010, 5020, 5548P, 5548UP, and 5596UP Switches)

• Support for cost-effective Cisco FET for uplink and fabric link connectivity, well suited to unified fabric environments

• Support for host PortChannel and virtual PortChannel (vPC) capabilities

• In-Service Software Upgrade (ISSU)

• Highly scalable distributed modular system with up to 1152 100/1000BASE-T ports (24 fabric extenders per Cisco Nexus 5500 platform)

• Compact one-rack-unit (1RU) form factor

• Choice of standard front-to-back cooling or reversed-airflow cooling, compatible with data center hot-aisle and cold-aisle designs

– With standard front-to-back cooling, all switch ports are at the rear of the unit in close proximity to server ports, aligned with the hot aisle (port-side exhaust)

– With reversed airflow, ports are aligned with the cold aisle (port-side intake)

• Choice of AC or DC power supply (the default configuration includes redundant dual power supplies)

• Hot-swappable fan trays

• Accessibility of all user-serviceable components

• Operation as a remote I/O module, extending the switch fabric for Cisco Nexus 5000 Series Switches

• Capability to be mixed and matched with different types of Cisco Nexus 2000 Series Fabric Extenders to the same parent switch to support various types of connectivity

• Homogeneous policies across a large number of ports

• Zero-touch provisioning, including configuration and software upgrade operations

Basic
Brand Name: Cisco
Form Factor: Rack-mountable
Product Family: Nexus 2000
Product Type: Fabric Extender
General Information
Brand Name: Cisco
Manufacturer Part Number: N2K-C2248TP-E
Manufacturer Website Address: http://www.cisco.com/c/en_au
Manufacturer: Cisco Systems, Inc
Product Line: Nexus
Product Name: Nexus 2000 Fabric Extender
Product Series: 2000
Product Type: Fabric Extender
Miscellaneous
Additional Information:
  • 32 MB Buffer
  • 1 Fan Module
  • 48x100/1000Base-T + 4x10GE (req SFP+)
  • Full Duplex Capability
  • Hot Swap Module Replacement
  • Auto-Negotiation
  • VLAN Support
  • IGMP Snooping
  • Syslog support
  • Weighted Round Robin (WRR) Queuing
  • IPv6 Support
  • Spanning Tree Protocol (STP) Support
  • Access Control List (ACL) Support
  • Quality of Service (QoS)
  • Jumbo Frames support
  • Choice of Airflow and Power Supply
Environmental Certification: RoHS
Environmentally Friendly: Yes
Physical Characteristics
Depth: 449.6 mm
Form Factor: Rack-mountable
Height: 43.2 mm
Weight (Approximate): 7.98 kg
Width: 439.4 mm
Warranty
Limited Warranty: 1 Year
