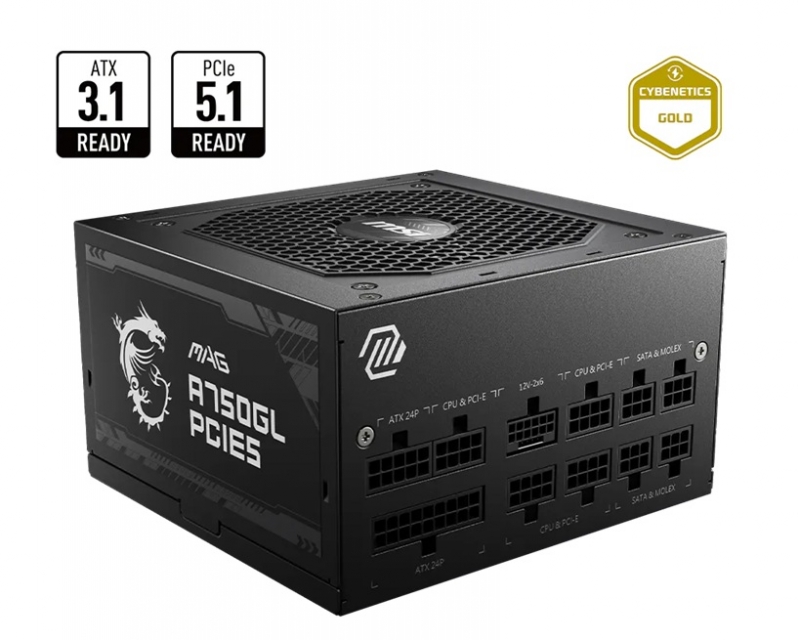

MSI MAG A750GL PCIE5 II Bulk – 750W ATX 3.1, 80+ Gold, full modular, PCIe 5.0 16-pin, 3x PCIe 6+2, 8x SATA, FDB fan, OCP/OVP/OPP/OTP/SCP/UVP, 120mm MAG A750GL PCIE5 II Bulk
$125.00
| SKU: | 439020 |
|---|---|
| MPN: | MAG A750GL PCIE5 II Bulk Link |
| Manufacturer: | https://www.msi.com |
| Brand: | Msi |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
(Bulk Pack)
MSI MAG A750GL PCIE5 II Bulk – 750W ATX 3.1, 80+ Gold, full modular, PCIe 5.0 16-pin, 3x PCIe 6+2, 8x SATA, FDB fan, OCP/OVP/OPP/OTP/SCP/UVP, 120mm
•ATX 3.1 ready, native PCIe 5.1 dual-color 16-pin cable
•Supports NVIDIA® GeForce RTXTM 40 Series graphics cards
•Full modular design,Flat cables
•80 Plus Gold certified for high efficiency
•Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
•120mm Fluid Dynamic Bearing Fan
•LLC Full Bridge Topology with DC-DC module design
MSI MAG A750GL PCIE5 II Bulk – 750W ATX 3.1, 80+ Gold, full modular, PCIe 5.0 16-pin, 3x PCIe 6+2, 8x SATA, FDB fan, OCP/OVP/OPP/OTP/SCP/UVP, 120mm
•ATX 3.1 ready, native PCIe 5.1 dual-color 16-pin cable
•Supports NVIDIA® GeForce RTXTM 40 Series graphics cards
•Full modular design,Flat cables
•80 Plus Gold certified for high efficiency
•Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
•120mm Fluid Dynamic Bearing Fan
•LLC Full Bridge Topology with DC-DC module design
Specifications
▼
| Efficiency Rating: 80 PLUS Gold (up to 90%) | Modular: Yes (full modular) |
| Fan Size: 120 mm | Fan Bearing: Fluid Dynamic Bearing |
| Dimensions (DxWxH): 140 x 150 x 86 mm | PFC Type: Active PFC |
| Input Voltage Range: 100~240 VAC | Power Watt: 750W |
| Power Excursion: 1500W (*up to 200% of the PSU's rated power for 100μs) | Input Frequency Range: 47-63Hz |
| Protection: OCP / OVP / OPP / OTP / SCP / UVP | ATX (24 pin): 1 |
| EPS (4+4 pin): 2 | PCI-E 5.0 (16 pin): 1 (450W) |
| PCI-E (6+2 pin): 3 | SATA (15 pin): 8 |
| PERIPHERAL (4 pin): 4 | FDD (4 pin): 1 |
Vendor Info
▼
PSM-A750GLPCIE5II-BULK
