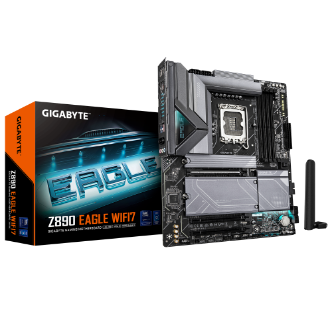

    main product photo

    Z890 EAGLE WIFI7/ATX/INTEL LGA1851/4x DDR5 DIMM max 256GB/Max 8800MHz/1x PCIE5.0 (CPU), 2xPCIE4.0 (Chipset)/2x M.2 (CPU), 2x M.2(Chipset) GA-Z890-EAGLE-WIFI7

    $357.00
    SKU:435290
    MPN:M/B Z890 EAGLE WIFI7 1.0
    Brand: Gigabyte
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare
    Overview

    Key Features

    • Supports Intel® Core™ Ultra processors (Series 2)
    • Digital twin 14+1+2 phases VRM solution
    • D5 Bionic Corsa for Infinite Memory Performance
    • AI Perfdrive : Provides optimal and customized BIOS preset profile for users
    • Premium Compatibility : 4*DDR5 with XMP Memory Module Support
    • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
    • EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
    • EZ-Latch Click : M.2 heatsinks with screwless design
    • Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
    • New Power Monitor in  HWinfo for real-time monitoring on CPU power phases
    • Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4
    • Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
    • Fast Networking : 2.5GbE LAN & Wi-Fi 7
    • Extended Connectivity : USB4 Type-C with DP-Alt, DisplayPort
    • PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
    Specifications
    Audio Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel
    Chipset Intel® Z890 Express Chipset
    Form Factor ATX Form Factor; 30.5cm x 24.4cm
    I/O Connectors Back Panel Connectors: 1 x USB4® USB Type-C® port (DisplayPort), 2 x USB 3.2 Gen 2 Type-A ports (red), 3 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, 1 x DisplayPort, 2 x antenna connectors (2T2R), 1 x RJ-45 port, 3 x audio jacks
    Integrated CPU Graphics Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
    LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    PCI Slots CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16); Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2)
    Processor Support LGA1851 socket: Support for Intel® Core™ Ultra Processors, L3 cache varies with CPU
    RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices; RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
    RAM Type/Bus/Max Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; Support CUDIMM memory module
    Socket LGA1851 socket: Support for Intel® Core™ Ultra Processors, L3 cache varies with CPU
    Storage Interface CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors
    Warranty
    Weight
    Wireless & Bluetooth MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard
