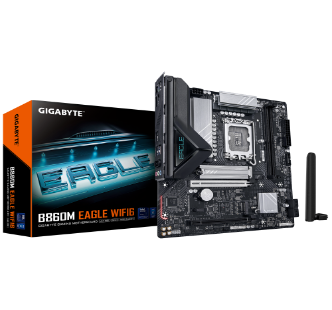

B860M EAGLE WIFI6 MOTHERBOARD; Intel B860 Express Chipset; 2 x DDR5 DIMM sockets supporting up to 128 GB; Realtek 2.5GbE LAN chip GA-B860M-EAGLE-WIFI6
$225.00
| SKU: | 435289 |
|---|---|
| MPN: | M/B B860M EAGLE WIFI6 1.0 |
| Brand: | Gigabyte |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
B860M EAGLE WIFI6
Key Features
- Supports Intel® Core™ Ultra processors (Series 2)
- Digital 6+1+2 phases VRM solution
- Dual Channel DDR5 : 2*DIMMs with XMP Memory Module Support
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking : 2.5GbE LAN Wi-Fi 6
- Extended Connectivity : HDMI, DisplayPort
Specifications
▼
Specifications
| Audio | Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, Support for S/PDIF Out |
| Chipset | Intel ® B860 Express Chipset |
| Form Factor | Micro ATX Form Factor; 24.4cm x 22.5cm |
| I/O Connectors | 1 x PS/2 keyboard/mouse port, 1 x HDMI port, 1 x DisplayPort, 3 x USB 3.2 Gen 1 ports, 3 x USB 2.0/1.1 ports, 2 x antenna connectors (2T2R), 1 x RJ-45 port, 3 x audio jacks |
| Integrated CPU Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. |
| LAN | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| PCI Slots | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Processor Support | LGA1851 socket: Support for Intel ® Core™ Ultra Processors |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| RAM Type/Bus/Max | Support for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules; 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules |
| Socket | LGA1851 socket |
| Storage Interface | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support)(M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB) - 4 x SATA 6Gb/s connectors |
| Warranty | 3 years |
| Weight | |
| Wireless & Bluetooth | Realtek® Wi-Fi 6 RTL8851BE - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 80MHz wireless standard |
