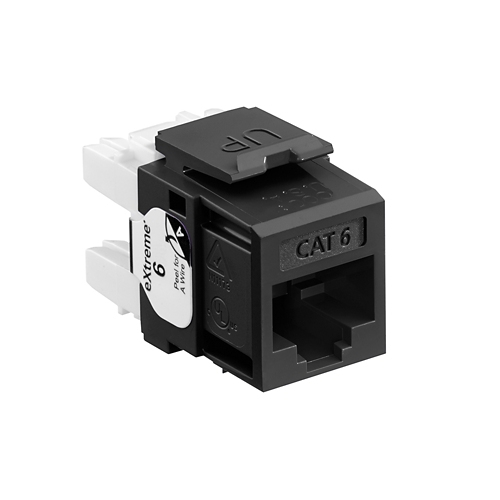

#html-body [data-pb-style=B9OIQYA]{justify-content:flex-start;display:flex;flex-direction:column;background-position:left top;background-size:cover;background-repeat:no-repeat;background-attachment:scroll}Leviton |  61110-RE6 | eXtreme Cat 6 QUICKPORT Unshielded Jack | 110-Style | BlackThe EXTREME Category 6 jack is designed to be used with all QUICKPORT compatible products. The jack includes patented Retention Force Technology which promotes consistent performance over the life of the system. It features unique pair separation towers allowing for quicker and easier terminations. The jack is built on a 180-degree configuration with the punch field in the back, allowing for rear termination.FEATURES Terminates 26 to 22 AWG solid conductors and 24 to 22 AWG stranded conductors Terminates 26 AWG stranded conductors up to 5 times Capable of multiple re-terminations Gas-tight IDC jacks prevent corrosion Dual-layer T568B/T568A wiring label simplifies punchdown Patented Retention Force Technology protects tines from damage and increases system longevity Pair Separation Tower design facilitates separation of conductors and minimises untwisting 180-degree configuration allows for rear termination Available in 13 ANSI/TIA-606-C compatible colours for colour coding or organisation Available individually, in bulk packages of 25, and in bulk packages of 150 with a JackRapid Punchdown Tool Select colours available in 200 pack Sustainably Smart Packaging that uses no single-use plastic and is fully recyclable Will exceed IEEE 802.3bt standard up to 0.5 amps per conductor (100 watts) continuously ETL verified to meet the IEC 60512-99-002 standard for support of IEEE 802.3bt Type 4 PoE (90-watt) applications SPECIFICATIONSStandards and Certifications CSA: Certified FCC: Part 68 Compliant NEC: Article 800 Compliant TIA/EIA: TIA-568-B UL: cULus Listed Mechanical Specifications Cable Type: 8-Conductor UTP Copper Cat 5, 5e and 6 Connector Feature: Channel/Component Rated Position / Conductor: 8P8C Product ID: Permanently laser-engraved Style Name: eXtreme Termination Type: 110 Punchdown Wiring Standard: T568A T568B Material Specifications Body Colour: Black Body Material: High-Impact Fire-Retardant Plastic Contact Base Material: Phosphor Bronze Contact Sub-Surface Material: 100 microinches thick Nickel-Plated Contact Surface Material: 50 microinches thick Gold-Plated Product Features Body Colour: Black Brand: eXtreme Cable Type: 8-Conductor UTP Copper Cat 5, 5e and 6 Category Rating: Cat 6 Colour: Black Connector Feature: Channel/Component Rated Contact Base Material: Phosphor Bronze Contact Sub-Surface Material: 100 microinches thick Nickel-Plated Contact Surface Material: 50 microinches thick Gold-Plated Flammability: Rated V-0 per UL 94 Module Style: Connector Module Type: Category 6 Packaging: Single Pack 1/bag Position / Conductor: 8P8C Shielding: UTP Standards and Certifications: TIA/EIA cULus Listed Termination Type: 110 Punchdown PATENTS ECD147723-0001 GB2562884 MX249737 MX295578 TWI285985 US6786776 US7547227 US7980890 This list is provided for patent marking purposes only. A good faith effort is made to maintain the accuracy and completeness of this list. No legal inference should be drawn from the omission of a patent from this list.WARRANTY1-year limited warranty
