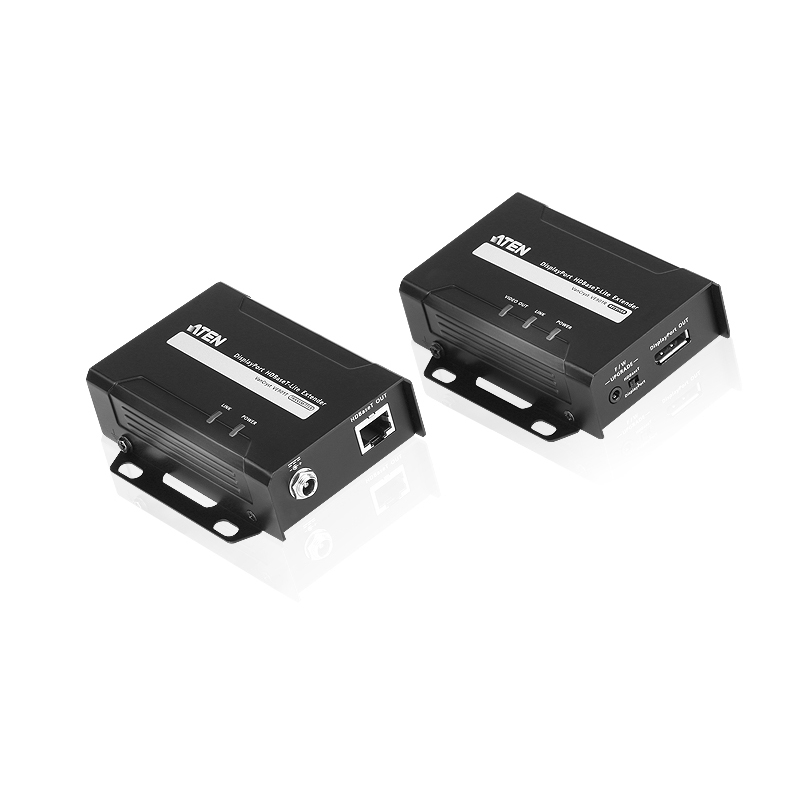

    Aten Ve901 Displayport Hdbaset-lite Extender (1080p@70m 4k@40m) Ve901

    $439.00
    SKU:268714
    MPN:VE901-AT-U Link
    Manufacturer:https://www.aten.com/
    Brand: Aten
    Warranty:Standard Manufacturer's Warranty
    Availability:

    Preorder 2-3 weeks

    Fright Estimate
    Add to Compare

    The VE901 DisplayPort HDBaseT-Lite Extender is able to extend a DisplayPort display up to 70 m using a Cat 6/6a/ATEN 2L-2910 Cat 6 cable. This combination of ATEN and HDBaseT™ technology supports sharing 4K media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.

    The VE901 DisplayPort HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, and a slip-resistant DC Jack lock mechanism, the VE901 can be installed in a multitude of locations while ensuring peace of mind with its reliability.

    • HDBaseT Connectivity – extends a DisplayPort connection up to 70 meters via a single Cat 6a cable or ATEN 2L-2910 Cat 6 cable
    • DisplayPort v1.1*; HDCP 1.4 compliant
    • Superior video quality – 4K @ 35 m (Cat 5e/6) / 40 m (Cat 6a/ATEN 2L-2910 Cat 6 cable) and 1920 x 1080 @ 60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat 6 cable)
    • HDBaseT Anti-Jamming – resists signal interference during video transmission using HDBaseT technology
    • Featuring 3.3V / 500mA power output for powering auxiliary devices
    • Plug-and-play
    • Rack-Mountable
      *Note:
      DisplayPort v1.1 supports up to 4Kx2K @ 30Hz.

    Function VE901R VE901T
    Video Input
    Interfaces N/A 1 x DisplayPort Female (Black)
    Impedance N/A 100 Ώ
    Max. Distance N/A 1.5 m
    Video Output
    Interfaces 1 x DisplayPort Female (Black) N/A
    Impedance 100 Ώ N/A
    Video
    Max. Data Rate 10.2Gbps (3.4Gbps per lane) 10.2Gbps (3.4Gbps per lane)
    Max. Pixel Clock 297 MHz 297 MHz
    Compliance DisplayPort (Deep Color, 4K)
    HDCP Compatible
    DisplayPort (Deep Color, 4K)
    HDCP Compatible
    Max. Resolutions / Distance Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a);
    1080p@60m (Cat 5e/6) / 70m (Cat 6a)
    *4K supported:
    4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a);
    1080p@60m (Cat 5e/6) / 70m (Cat 6a)
    *4K supported:
    4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
    Audio
    Input N/A 1 x DisplayPort Female (Black)
    Output 1 x DisplayPort Female (Black) N/A
    Connectors
    Power 1 x DC Jack (Black) with locking 1 x DC Jack (Black) with locking
    Power Consumption DC5V:5.72W DC5V:2.84W
    Environmental
    Operating Temperature 0-40°C 0-40°C
    Storage Temperature -20 - 60°C -20 - 60°C
    Humidity 0 - 80% RH, Non-Condensing 0 - 80% RH, Non-Condensing
    Physical Properties
    Housing Metal Metal
    Weight 0.27 kg ( 0.59 lb ) 0.24 kg ( 0.53 lb )
    Dimensions (L x W x H) with bracket 9.77 x 8.70 x 3.00 cm
    (3.85 x 3.43 x 1.18 in.) 9.77 x 8.70 x 3.00 cm
    (3.85 x 3.43 x 1.18 in.)
    Dimensions (L x W x H) without bracket 9.42 x 6.60 x 2.90 cm
    (3.71 x 2.6 x 1.14 in.) 9.42 x 6.60 x 2.90 cm
    (3.71 x 2.6 x 1.14 in.)
