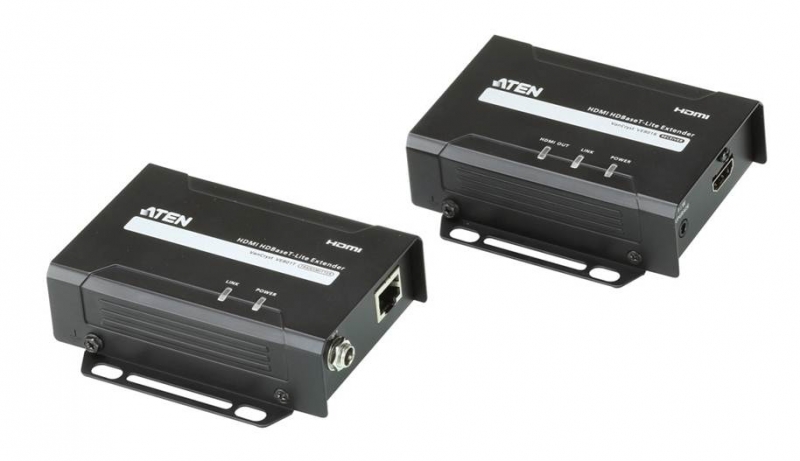

    main product photo

    Aten Hdmi HDBaseT-Lite Extender, Supports 1080p @ 70m And 4096 X 2160 @ 30 Hz (4:4:4) @ 40m Over Cat 6A VE801-AT-U

    Special Price $325.00 Regular Price $374.00
    SKU:273525
    MPN:VE801-AT-U Link
    Manufacturer:https://www.aten.com
    Brand: Aten
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare
    The VE801 HDMI HDBaseT Lite Extender extends an HDBaseT signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. It supports HDMI features that include 3D, Deep Color and 4K image resolutions, plus Dolby Digital 5.1, DTS HD audio and it is HDCP compatible. The VE801 all-in-one design provides an easy method for mounting the device in any location. The side panel provides slip-resistant grooves that help prevent accidental drops when installing the unit. The grooves also enhance the ability to see the LED status lights. The VE801 is perfect for digital entertainment centers or any installation that requires superior HDMI video quality to be extended for great distances.

    Function VE801R VE801T
    Video Input
    Interfaces N/A 1 x HDMI Type A Female (Black)
    Impedance N/A 100 Ώ
    Max. Distance N/A 1.8 m
    Video Output
    Interfaces 1 x HDMI Type A Female (Black) N/A
    Impedance 100 Ώ N/A
    Video
    Max. Data Rate 10.2Gbps (3.4Gbps per lane) 10.2Gbps (3.4Gbps per lane)
    Max. Pixel Clock 340 MHz 340 MHz
    Compliance HDMI (3D, Deep Color, 4K)
    HDCP Compatible
    Consumer Electronics Control (CEC) HDMI (3D, Deep Color, 4K)
    HDCP Compatible
    Consumer Electronics Control (CEC)
    Max. Resolutions / Distance Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6);
    1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
    *4K supported:
    4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
    4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6);
    1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)
    *4K supported:
    4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
    4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
    Audio
    Input N/A 1 x HDMI Type A Female (Black)
    Output 1 x HDMI Type A Female (Black) N/A
    Connectors
    Power 1 x DC Jack (Black) with locking 1 x DC Jack (Black) with locking
    Unit To Unit 1 x RJ-45 Female 1 x RJ-45 Female
    Power Consumption DC5V:1.86W:9 DC5V:4.24W:20
    Environmental
    Operating Temperature 0-50°C 0-50°C
    Storage Temperature -20 - 60°C -20 - 60°C
    Humidity 0% - 80% RH, Non-condensing 0% - 80% RH, Non-condensing
    Physical Properties
    Housing Metal Metal
    Weight 0.25 kg ( 0.55 lb ) 0.24 kg ( 0.53 lb )
    Dimensions (L x W x H) with bracket 9.86 x 8.70 x 3.00 cm
    (3.88 x 3.43 x 1.18 in.) 9.86 x 8.70 x 3.00 cm
    (3.88 x 3.43 x 1.18 in.)
    Dimensions (L x W x H) without bracket 9.42 x 6.60 x 2.90 cm
    (3.71 x 2.6 x 1.14 in.) 9.42 x 6.60 x 2.90 cm
    (3.71 x 2.6 x 1.14 in.)
    Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

    Aten HDMI HDBaseT-Lite Extender, supports 1080p @ 70m and 4096 x 2160 @ 30 HZ (4:4:4) @ 40m over Cat 6A
