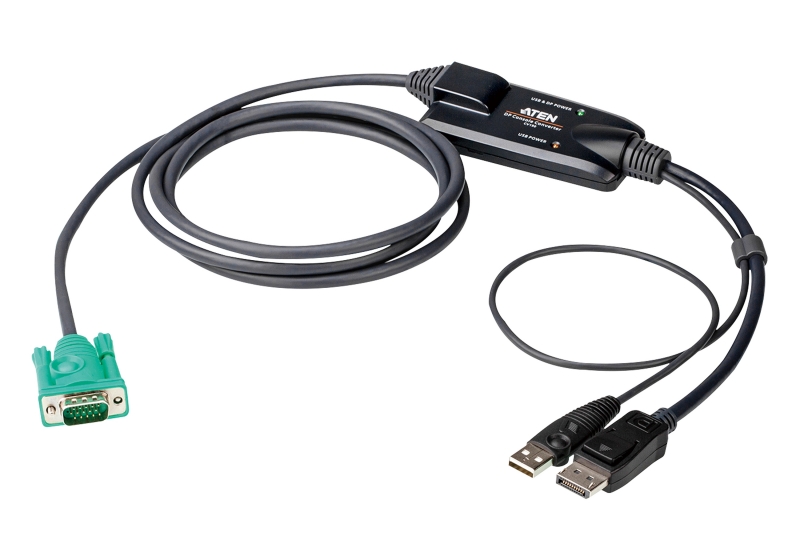

Aten Displayport Console Converter (CV190-AT)
$64.00
| SKU: | 293557 |
|---|---|
| MPN: | CV190-AT Link |
| Manufacturer: | https://www.aten.com/ |
| Brand: | Aten |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
▼
- Connects an ATEN SPHD-interfaced KVM switch to a DisplayPort and USB-enabled target computer
- Supports high video resolution – up to 1920 x 1080 @ 60Hz
- DisplayPort 1.1 compliant
- Supports USB keyboard and mouse
- Bus-powered – no external power adapter required
- Easy installation – no software required
Specifications
▼
| Console Connections | 1 |
| Connectors | |
| To Computer |
1 x USB Type A Male 1 x DisplayPort Male |
| To Switch | 1 x SPHD-15 Male |
| Switches | |
| Power Selected | 1 x Slide Switch |
| LEDs | |
| Status |
1 (Green; USB & DP Power) 1 (Orange; USB Power) |
| Video | 1920 x 1080 @ 60 Hz |
| Power Consumption | DC5V:1.01W:5BTU |
| Environmental | |
| Operating Temperature | 0-50°C |
| Storage Temperature | -20-60°C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.21 kg ( 0.46 lb ) |
| Cable Length | 1.8 m |
| Dimensions (L x W x H) |
9.00 x 4.30 x 2.18 cm (3.54 x 1.69 x 0.86 in.) |
