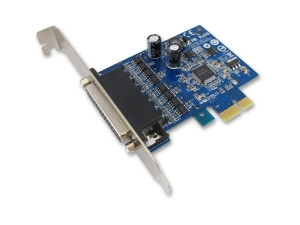

Sunix Ipce2204s Pcie 4-port Auto Switch Rs 422/ 485 Surge Protection Card With Db9m Connectors

IPCE2204S
$159.00
SKU:269675
MPN:IPCE2204S Link
Manufacturer:http://www.sunixusa.com/
Brand: Sunix
Warranty:Standard Manufacturer's Warranty
Availability:

In stock

Fright Estimate
  • Expands 4 independent RS-422/485 serial ports with communication speeds up to 921.6Kbps.
  • With high reliable SUNIX SUN2212 native PCI Express 16C950 UART controller.
  • Designed to meet PCI Express Base Specification Revision 2.0.
  • RS-422 and RS-485 auto detect and switching technology – jumper and software free.
  • AHDC/CS™ technology for collision free communication.
  • On-chip hardware auto flow control to guarantee no data loss.
  • Ultra low power consumption design for Green Environment.
  • 15KV ESD protection for all serial signals meets IEC-61000-4-2 standard.
  • 2KV surge protection for all serial signals meets IEC-61000-4-5 Level 3 standard.
  • Plug-n-Play, I/O address and IRQ assigned by BIOS.
  • Certified by CE, FCC, VCCI, C-Tick, BSMI, RoHS, and Microsoft WHQL approval.
  • Support Microsoft Windows, Linux, and DOS OS.

Serial Communication

Interface RS-422/485 Baud rate 50bps ~921.6Kbps
Controller SUNIX SUN2212
(16C950 UART Compatible)
Stop bit 1, 1.5, 2
BUS PCI Express 2.0 x 1 (single lan) Parity even, odd, none, mark, space
No. of Port 4-port Flow Control Xon/Xoff (software)
IRQ & IO Assigned by System FIFO 128byte Hardware
Signal RS-422: TxD+, TxD-, RxD+, RxD-, GND
4-wire RS-485: TxD+, TxD-, RxD+, RxD-, GND
2-wire RS-485: Data+, Data-, GND
Protection ±15KV ESD IEC6000-4-2 Air Discharge
±8KV ESD IEC61000-4-2 Contact Discharge
±4KV ESD IEC61000-4-2 Level 2 Line-to-Linee
2KV Surge IEC61000-4-5 Level 3 Surge Immunity Test
PCB Connector DB44 Female

Driver Support

Windows Client XP/Vista/7/8/8.1 (X86/X64)
Windows Server 2000 / 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 (X86/X64)
Windows Embedded Windows CE 4.2/5.0/6.0
XP Embedded / POSReady 2009 / POSReady 7 / Embedded System
Linux Linux 2.4.x/2.6.x/3.x
DOS DOS

Regulatory Approvals

Hardware EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS
Software Microsoft WHQL Windows
• Windows Client: XP/Vista/7/8/8.1 (X86/X64)
• Windows Server: 2000/2003/2008/2008 R2/2012/2012 R2 (X86/X64)

Environment

Operation Temperature 0 to 70°C (32 to 158°F)
Operation Humidity     5 to 95% RH
Storage Temperature -20 to 85°C (-4 to 185°F)

Dimension

PCB Dimension 96 x 68 mm
Bracket Standard 121 mm / Low Profile 80mm
Bracket Space 1
