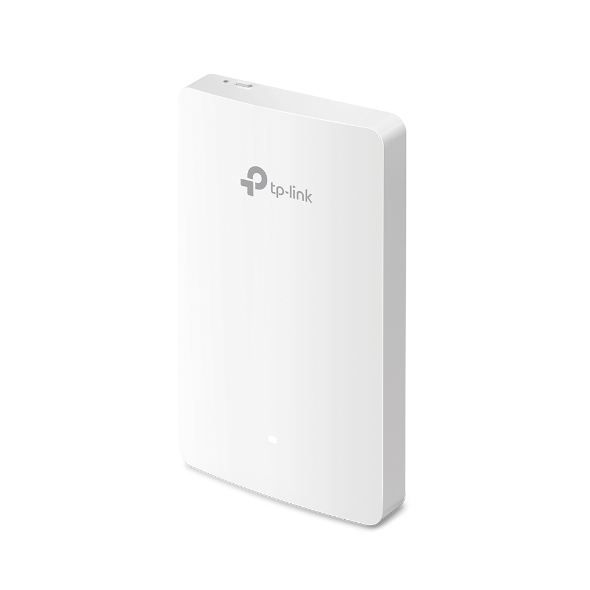

    TP-Link EAP235-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point (EAP235-Wall)

    $104.00
    SKU:303138
    MPN:EAP235-Wall Link
    Manufacturer:https://www.tp-link.com/au/
    Brand: Tp-link
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare
    New Page 1
    HARDWARE FEATURES
    Interface Uplink: 10/100/1000 Mbps Ethernet Port*1
    Downlink: 10/100/1000 Mbps Ethernet Port*3 (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13W.)

    Physical Security Lock Yes
    Button Reset
    Power Supply 802.3af/802.3at PoE
    Power Consumption 9.8 watts /24.4 watts (PoE Out Included)
    Dimensions 143 × 86 × 20mm (5.6 × 3.4 × 0.8 in)
    Antenna 2 Dual-Band Antennas
    2.4GHz: 2*4dBi
    5GHz: 2*4dBi
    Mounting Wall Plate Mounting
    WIRELESS FEATURES
    Wireless Standards IEEE 802.11a/b/g/n/ac
    Frequency 2.4GHz and 5GHz
    Signal Rate 5GHz: Up to 867Mbps
    2.4GHz: Up to 300Mbps
    Wireless Functions 16 SSIDs（Up to 8 SSIDs on each band）
    Enable/Disable Wireless Radio
    Automatic Channel Assignment
    Transmit Power Control (Adjust Transmit Power on dBm)
    QoS(WMM)
    MU-MIMO
    Band Steering
    Beamforming
    Load Balance
    Rate Limit
    Reboot Schedule
    Wireless Schedule
    Wireless Statistics based on SSID/AP/Client
    Wireless Security Captive Portal Authentication
    Access Control
    Wireless Mac Address Filtering
    Wireless Isolation Between Clients
    SSID to VLAN Mapping
    Local LAN port based VLAN
    Rogue AP Detection
    802.1X Support
    64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise
    Transmission Power • CE:
    ≤20 dBm (2.4 GHz, EIRP)
    ≤23 dBm (5 GHz, EIRP)

    • FCC:
    ≤21 dBm (2.4 GHz)
    ≤21 dBm (5 GHz)
    MANAGEMENT
    Omada App Yes
    Centralized Management • Omada Cloud-Based Controller
    • Omada Hardware Controller (OC300)
    • Omada Hardware Controller (OC200)
    • Omada Software Controller
    Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
    Email Alerts Yes
    LED ON/OFF Control Yes
    Management MAC Access Control Yes
    SNMP v1,v2c
    System Logging Local/Remote Syslog Local/Remote Syslog
    SSH Yes
    Web-based Management HTTP/HTTPS
    L3 Management Yes
    Multi-site Management Yes
    Management VLAN Yes
