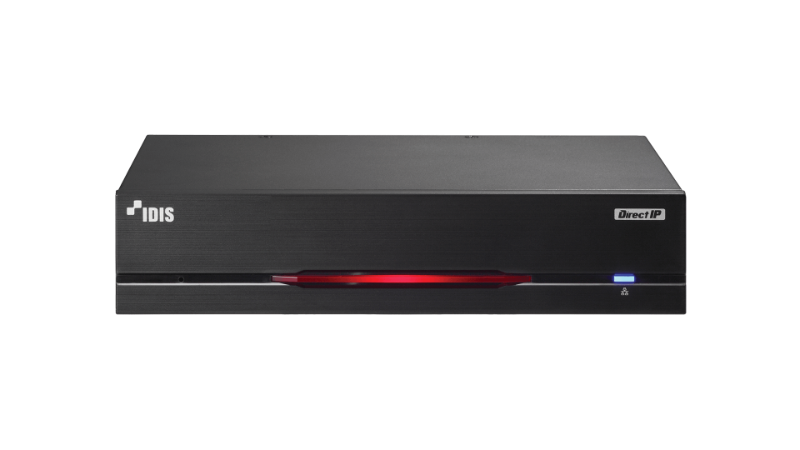

IDIS 8CH HD-TVI ENCODER NDAA 3YR DP-DE2108
$335.00
| SKU: | 403430 |
|---|---|
| MPN: | DP-DE2108 Link |
| Manufacturer: | https://www.idisglobal.com |
| Brand: | IDIS |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
8Ch HD Encoder
/ NDAA Compliant
- Supports PTZ Control with UTC Protocol
- Supports 4 Audio input ports
- Supports Quadruple stream
- Supports Analog (CVBS), TVI, and AHD formats
Specifications
▼
| Video | |
| Video Inputs | 8 BNC |
| Max. Resolution | 2560 x 1920 |
| Network | |
| Video Compression | H.265, H.264 |
| Max. Frame Rate | 240ips@1080P, 144ips@3MP, 120ips@4MP, 80ips@5MP |
| Multi-video Streaming | Quadruple Streaming |
| Ethernet | RJ45 (10/100/1000 BASE-T) |
| Edge Storage | - |
| Alarm and Event | |
| Trigger Event | Motion Detection, Tampering, Trip Zone, Video Loss |
| Event Notification | Remote S/W, Email (with Image) |
| Interface | |
| Audio In / Out | 4 / - |
| Serial Interface | - |
| Environmental | |
| Operating Temperature | 0°C ~ 40°C (+32℉ ~ +104℉) |
| Operating Humidity | 0% ~ 90% |
| Electrical | |
| Power Source | 12VDC, PoE IEEE 802.3af (Class 3) |
| Power Consumption | 12V=, 0.8A, 10W PoE, IEEE 802.3af(Class 3), 10W |
| Approval | FCC, CE, KC |
| Mechanical | |
| Dimensions | 200mm x 44mm x 165.2mm (7.9" x 1.7" x 6.5") |
| Weight | 0.81kg (1.79lb) |
