IDIS 2MP FLAT DOME IK10 IP67 UPTO 5YR DC-M4211WRX-2.8MM
$177.00
| SKU: | 407224 |
|---|---|
| MPN: | DC-M4211WRX-2.8MM |
| Manufacturer: | https://www.idisglobal.com/ |
| Brand: | IDIS |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼

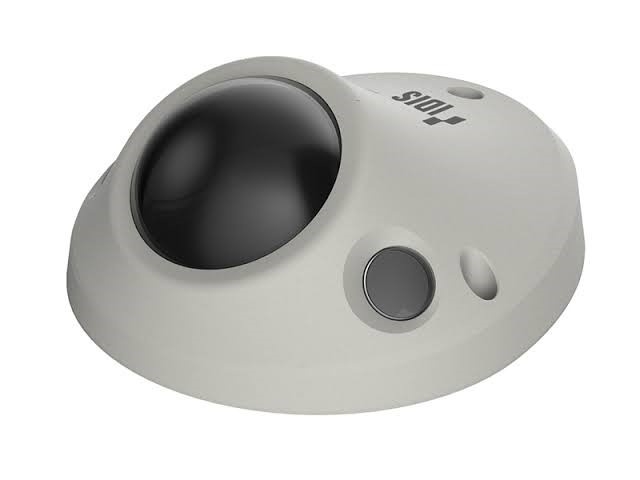

IDIS 2MP Flat Dome
FIxed 2.8MM
IP67 Weather Proof Rating
IK10 Vandal Proof Rating
120dB (True WDR)
In-Built Microphone
micro SD/SDHC/SDXC, Smart Failover (Up to 256GB)
PoE (IEEE 802.3af Class 3)
Ideal for Transport Application
Specifications
▼
| Model Name | DC-M4211WRX |
| Image Sensor | 1/2.8" CMOS |
| Max Resolution | 1920 x 1080 |
| Lens Type | Fixed-focal |
| Focal Length | f=2.8 |
| Iris Control | Fixed Iris |
| Angular Field of View | 111.6º (H) 61.45º(V) 127.3º(D) (2.8mm) |
| 101 3º (H) 54 5º(V) 119 7º(D) (3 3mm) | 101.3º (H) 54.5º(V) 119.7º(D) (3.3mm) |
| 84 07º (H) 45 35º(V) 99 43º(D) (4mm) | 84.07º (H) 45.35º(V) 99.43º(D) (4mm) |
| Pan/Tilt/Rotate Range | Pan: ±5º, Tilt: +20º~+75º, Rotate: ±90º |
| Min Illumination | COLOR : 0.1 lux @ F2.0 |
| B/W : 0 lux (IR LED ON) | B/W : 0 lux (IR LED ON) |
| Dynamic Range | 120dB (True WDR) |
| Day and Night | IR cut filter with auto switch |
| IR Distance (LEDs) | 10 m |
| Image Stabilizer | - |
| De-fog | - |
| Video Out | 1 CVBS (BNC) |
| Video Compression | H.265, H.264 (MP) M-JPEG, |
| Intelligent Codec | Supported |
| Audio Compression | ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law |
| Max Frame Rate | 30ips : 1920 x 1080(WDR) |
| Ethernet | RJ45 (10/100BASE-T) |
| Recording Session Buffer (NLTSrec) | Yes (Up to 60MB) |
| Edge Storage | micro SD/SDHC/SDXC, Smart Failover (Up to 256GB) |
| Trigger Event | Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone |
| Audio In/ Out | 1(Internal MIC) / 0 |
| Alarm In / Out | - |
| Vandal Proof Casing | IK10 |
| Outdoor Ready | IP67 |
| Operating Temperature | -30°C ~ +55°C (-22°F ~ +122°F) *Starting up at above 0°C (32°F) |
| Power Source | PoE (IEEE 802.3af Class 3) |
| Power Consumption | 8.9W |
