Aten 2 Port Usb Dvi Kvmp Switch With Audio And Usb 2.0 Hub - Cables Included Cs1762A-At-U
| SKU: | 271905 |
|---|---|
| MPN: | CS1762A-AT-U Link |
| Manufacturer: | https://www.aten.com/ |
| Brand: | Aten |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
- Superior video quality – 1920 x 1200
- Computer selection via front panel pushbuttons, hotkeys, and mouse
- DVI digital and analog monitor support – fully compliant with the DVI specifications
- Multiplatform support – Windows, Linux, Mac, and Sun

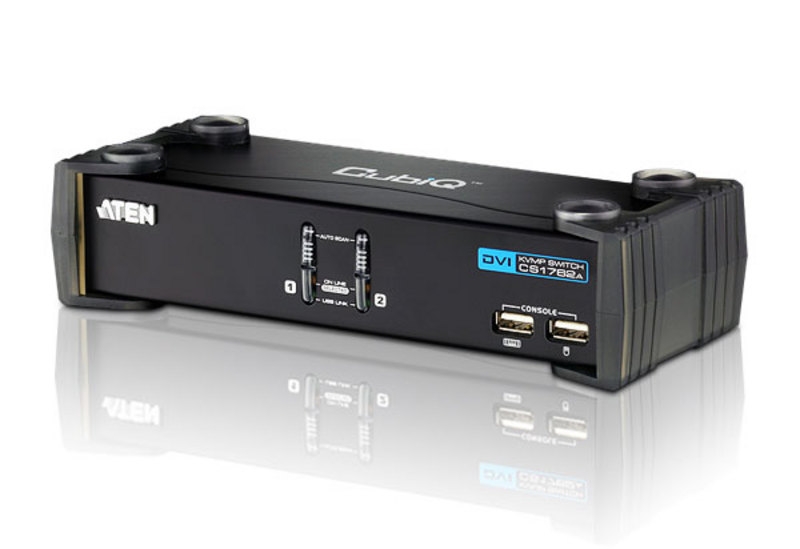

The CubiQ™ CS1762A USB 2.0 DVI KVMP™ Switch charts a revolutionary new direction in KVM (Keyboard, Video, Mouse) switch functionality by combining a 2 port KVM switch with a 2 port USB 2.0 hub at the same time as it provides an interface for a digital monitor (DVI).
In addition, the CS1762A comes with ATEN's new Video DynaSync™ technology, which optimizes display resolution, and power on detection, which means if one computer is powered off, the CS1762A will automatically switch to the next powered-on computer.
As a KVM switch, it allows users to access two computers from a single USB keyboard, USB mouse, and monitor console. As a USB 2.0 hub, it permits each computer to access any peripherals connected to the hub on a 'one computer at a time' basis.
Package Contents
- 1x CS1762A USB 2.0 DVI KVMP™ Switch
- 2x KVM Cable (DVI-D, USB, Audio; 1.8m/6ft)
- 1x Power Adapter
- 1x User Instructions
- One USB console controls two DVI computers and two additional USB 2.0 devices
- 2-port USB 2.0 hub built in
- Fully compliant with the USB 2.0 specification
- Computer selection via front panel pushbuttons, hotkeys, and mouse
- Audio enabled – full bass response provides a rich experience for 2.1 channel surround sound systems
- Multiplatform support – Windows, Linux, Mac, and Sun
- Supports widescreen resolutions
- Superior video quality – 1920 x 1200
- Independent switching of KVM, USB, and Audio focus
- DVI digital and analog monitor support – fully compliant with the DVI specifications
- HDCP compatible
- Video DynaSync™ – exclusive ATEN technology optimizes display resolution and eliminates boot-up display problems
- Power on detection – if one computer is powered off, the switch will automatically switch to the next powered-on computer
- Console mouse port emulation/bypass feature supports most mouse drivers and multifunction mice
- Complete keyboard emulation for error-free booting
- Mac/Sun keyboard support and emulation*
- Multilingual keyboard mapping – supports English, Japanese, and French keyboards
- Auto Scan Mode for monitoring all computers
- Firmware upgradable
* 1. PC keyboard combinations emulate Mac/Sun keyboards
2. Mac/Sun keyboards only work with their own computer

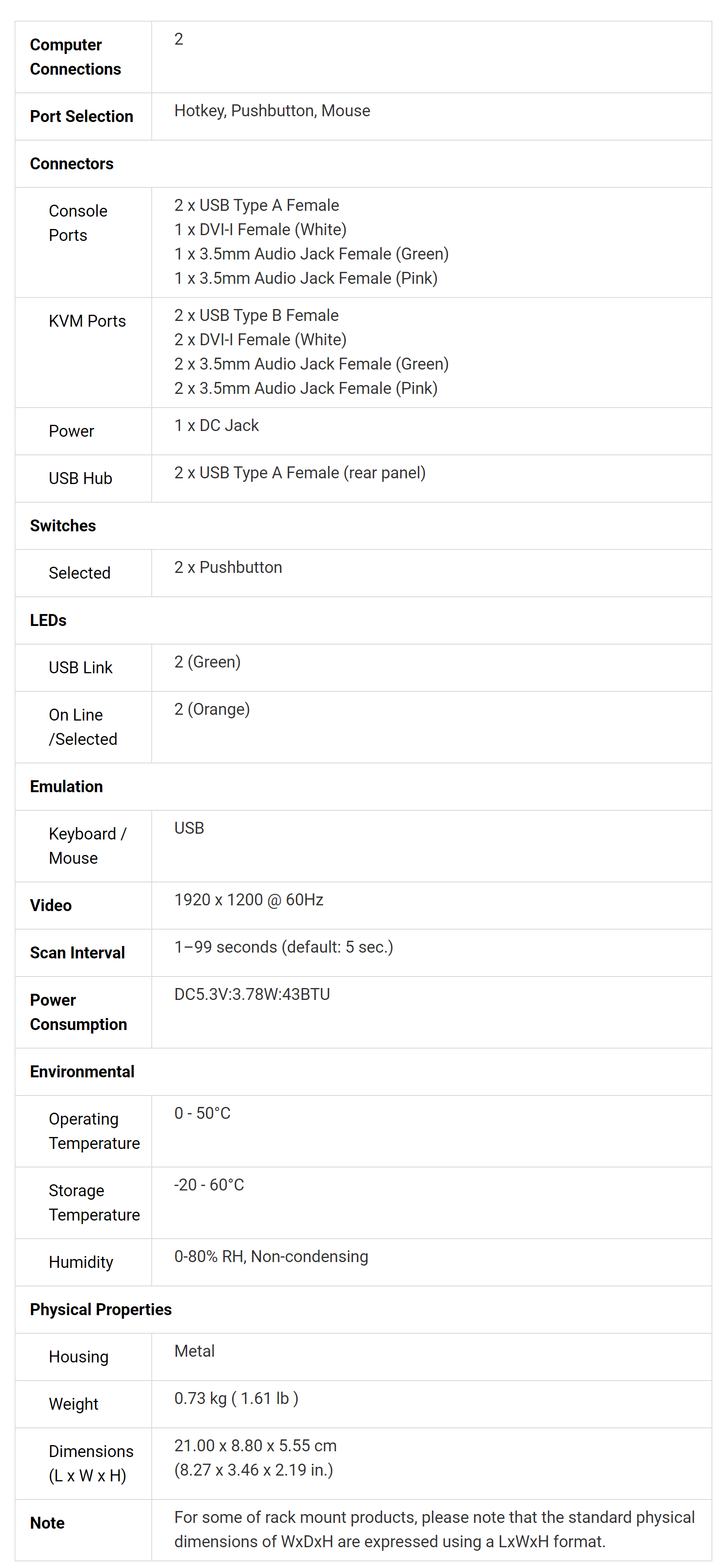

Specifications
Computer Connections 2
Port Selection Hotkey, Pushbutton, Mouse
Connectors
Console Ports 2 x USB Type A Female
1 x DVI-I Female (White)
1 x 3.5mm Audio Jack Female (Green)
1 x 3.5mm Audio Jack Female (Pink)
KVM Ports 2 x USB Type B Female
2 x DVI-I Female (White)
2 x 3.5mm Audio Jack Female (Green)
2 x 3.5mm Audio Jack Female (Pink)
Power 1 x DC Jack
USB Hub 2 x USB Type A Female (rear panel)
Switches
Selected 2 x Pushbutton
LEDs
USB Link 2 (Green)
On Line /Selected 2 (Orange)
Emulation
Keyboard / Mouse USB
Video 1920 x 1200 @ 60Hz
Scan Interval 1–99 seconds (default: 5 sec.)
Power Consumption DC5.3V:3.78W:43BTU
Environmental
Operating Temperature 0 - 50°C
Storage Temperature -20 - 60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.73 kg ( 1.61 lb )
Dimensions (L x W x H) 21.00 x 8.80 x 5.55 cm
(8.27 x 3.46 x 2.19 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
