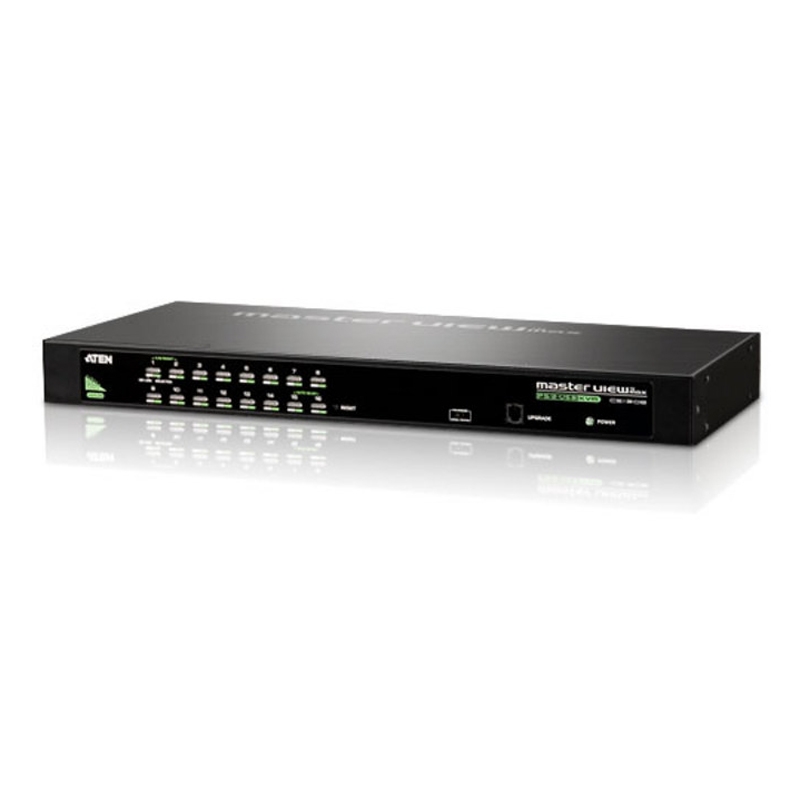

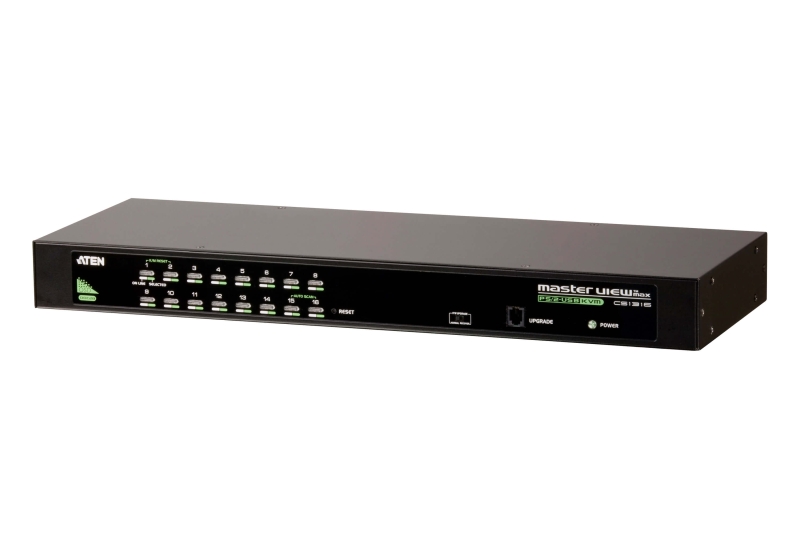

Aten 16 Port Rackmount Usb-Ps/ 2 Vga Kvm Switch With Osd Cs1316-At-U
| SKU: | 271902 |
|---|---|
| MPN: | CS1316-AT-U Link |
| Manufacturer: | https://www.aten.com/ |
| Brand: | Aten |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
The CS1316 KVM switch allows access and control up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. The switch supports both USB and PS/2 connections for the console and computers.
Package Contents
- 1x CS1316 KVM Switch with Rack Mount Kit
- 1x Console cable
- 1x Firmware Upgrade cable
- 1x Foot Pad set (4 pads)
- 1x Power Adapter
- 1x Mounting Kit
- 1x User Instructions
- One USB-PS/2 console controls 16 computers
- Cascade up to 2 levels - control up to 256 computers
- Dual Interface - supports computers with PS/2 or USB keyboards and mice
- Multiplatform support - Windows 2000/XP/Vista, Linux, Mac, and Sun
- Video DynaSync™ - Exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Auto PS/2 and USB interface detection
- USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
- Superior video quality - up to 2048 x 1536; DDC2B
- Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
- Two level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each
- Auto Scan feature for monitoring user-selected computers
- Hot pluggable - add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Firmware upgradeable
- No software installation required
- Designed for desktop or rack mount (19" system rack, 1U)
Specifications
Computer Connections
Direct 16
Maximum 256 (via Cascade)
Port Selection OSD, Hotkey, Pushbutton
Connectors
Console Ports 1 x SPHD-18 Male (Yellow)
Firmware Upgrade 1 x RJ-11 Female (Black)
Power 1 x DC Jack
KVM Ports 16 x SPHD-15 Female (Yellow)
Switches
Ports 16 x Pushbutton
Firmware Upgrade 1 x Slide
LEDs
Online 16 (Orange)
Selected 16 (Green)
Power 1 (Dark Green)
Emulation
Keyboard / Mouse PS/2, USB
Video 2048 x 1536; DDC2B
Scan Interval 1-255 Seconds
Power Consumption DC5.3V:3.83W:26BTU
Environmental
Operating Temperature 0-50˚C
Storage Temperature -20-60˚C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Metal
Weight 2.83 kg ( 6.23 lb )
Dimensions (L x W x H) 43.72 x 16.13 x 4.40 cm
(17.21 x 6.35 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
