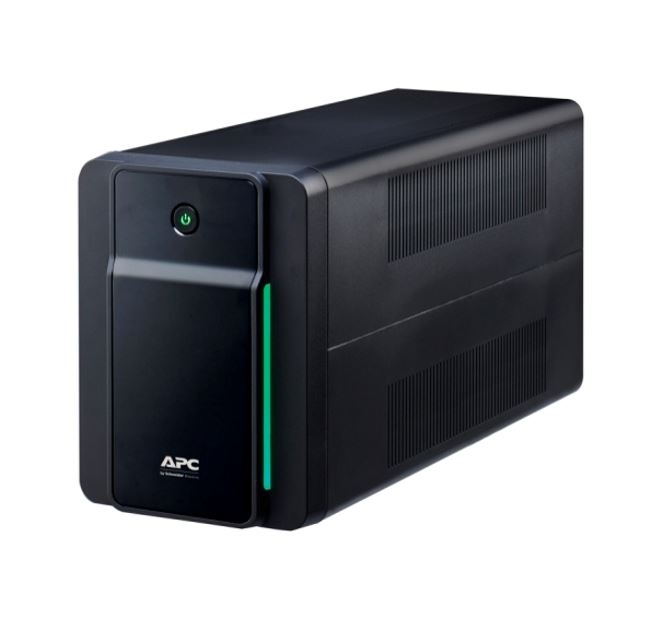

APC Back-UPS 1200VA/650W Line Interactive Ups, Tower, 230V/10A Input, 4x Aus Outlets, Lead Acid Battery BX1200MI-AZ
| SKU: | 367653 |
|---|---|
| MPN: | BX1200MI-AZ Link |
| Manufacturer: | https://www.apc.com |
| Brand: | Apc |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
Main Input Voltage 230 V
Main Output Voltage 230 V
Rated power in W 650 W
Rated power in VA 1200 VA
Output connection type 4 Australian
Cable length 1.22 m
Number of cables 1
Battery type- Lead-acid battery
Number of battery filled slots 0
Number of battery free slots 0
Battery recharge time 8 h
Battery voltage 12 V
Battery life 3…5 year(s)
Provided equipment- User manual
Number of power module free slots 0
Number of power module filled slots 0
Redundant No
Network frequency 50/60 Hz +/- 5 Hz auto-sensing
Input voltage limits 140...300 V
Input Power Factor at Full Load 0.54
Maximum configurable power in W 650 W
Output frequency 50/60 Hz +/- 1 Hz sync to mains
UPS type Line interactive
Wave type Stepped approximation to a sinewave
Full load runtime 00:01:00 650 W
Half load runtime 00:05:00 300 W
Maximum configurable power in VA 1200 VA
Transfer time 6 ms typical : 10 ms maximum
Product certifications- CE, CB, RCM
Standards- EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Equipment protection policy Lifetime : 50000 euros
Ambient air temperature for operation 0…40 °C
Relative humidity 0…95 % non-condensing
Operating altitude 0...3000 m
Ambient air temperature for storage -15…40 °C
Storage Relative Humidity 0…95 % non-condensing
Storage altitude 0…3000 m
Acoustic level 40 dBA
IP degree of protection IP20
Mounting mode- Not rack mountable
Replacement Battery -APCRBC175
Specifications
Output
• Output power capacity: 700 Watts / 1.4 kVA
• Max Configurable Power (Watts): 700 Watts / 1.4 kVA
• Nominal Output Voltage: 230V
• Output Frequency (sync to mains): 50/60 Hz +/-1 Hz
• Output Frequency (not synced): 50/60 Hz +/-1 Hz
• Topology: Line Interactive
• Waveform type: Stepped approximation to a sinewave
• Output Connections: (6) Australian (Battery Backup)
• Transfer Time:8ms typical: 10 ms maximum
Input
• Nominal Input Voltage: 230V
• Input frequency:50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections: Australian/Chinese
• Cord Length:1.22 meters
• Input voltage range for main operations:150 - 280 V
• Number of Power Cords: 1
• Maximum Input Current:6.0 A
• Input Power Factor at Full Load:0.5
Batteries & Runtime
• Battery type: Maintenance-free sealed Lead-Acid battery with suspended
electrolyte: leakproof
• Typical recharge time: 8 hour(s)
• Battery Volt-Amp-Hour Capacity: 165
• Runtime: View Runtime Graph
• Efficiency: View Efficiency Graph
Communications & Management
• Interface Port(s): USB
• Control panel: LED status display with On Line: On Battery: Replace Battery
and Overload indicators
• Audible Alarm: Alarm when on battery: distinctive low battery alarm: overload
continuous tone alarm
Surge Protection and Filtering
• Surge energy rating:273 Joules
• Data Line Protection: RJ-11 Modem/Fax protection
Physical
• Maximum Height: 215, 21.5 cm
• Maximum Width: 130, 13.0 cm
• Maximum Depth:336, 33.6 cm
• Net Weight: 12.0 kg
• Shipping weight: 12.94 kg
• Shipping Height: 295, 29.5 cm
• Shipping Width: 245, 24.5 cm
• Shipping Depth: 440, 44.0 cm
• Color: Black
Environmental
• Operating Environment: 0 - 40 °C
• Operating Relative Humidity: 0 - 95% no %
• Operating Elevation: 0-3000 meters
• Storage Temperature: -15 - 40 °C
• Storage Relative Humidity: 0 - 95 %
• Storage Elevation: 0-9000 meters
• Audible noise at 1 meter from surface of unit: 45.0 dBA
Conformance
• Approvals: RCM, T
