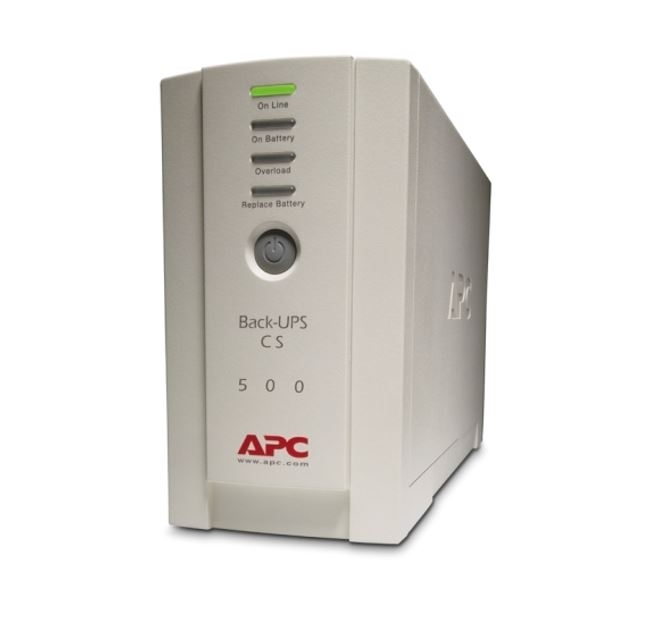

    main product photo

    APC Back-UPS 500VA/300W Standby Ups, Tower, 230V/10A Input, 4x Iec C13 Outlets, Lead Acid Battery, User Replaceable Battery BK500EI

    $199.00
    SKU:232527
    MPN:BK500EI Link
    Manufacturer:http://www.apc.com
    Brand: Apc
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare
    APC Back-UPS, 500VA/300W, Tower, 230V, 4x IEC C13 Outlets , User Replaceable Battery

    This product is part of the Back-UPS range. The BK550EI features a total of 6 power outlets, 3 of which are UPS battery backup and 3 that are surge only. Its runtime at 100W is 24 minutes 20 seconds It provides data line protection with a RJ45 analog phone line for phone or fax or modem or DSL. Its dimensions are 16.5 x 9.1 x 28.4 cm and 6.32kg. The BK550EI ensures office systems and their valuable data are protected from dangerous power surges, spikes and blackouts.
    Main Input Voltage 230 V
    Main Output Voltage 230 V
    Rated power in W 300 W
    Rated power in VA 500 VA
    Input Connection Type IEC 60320 C14
    Output connection type- 3 IEC 60320 C13, 1 IEC 60320 C13 surge, 2 IEC Jumpers surge
    Number of cables 2
    Battery type Lead-acid battery
    Provided equipment- CD with software, Documentation CD, 1 x detachable IEC power cord, 1 x detachable 1.2 m IEC power cord, Telephone cable, USB cable, Warranty card
    Network frequency- 47...63 Hz, 50/60 Hz +/- 3 Hz auto-sensing
    Input voltage limits- 160...300 V adjustable, 180...266 V
    Maximum input current 7 A
    Switching current capacity 7 A
    Maximum configurable power in W 300 W
    Output frequency- 47...63 Hz sync to mains, 50/60 Hz +/- 1 Hz unsynchronised
    UPS type Standby
    Wave type Stepped approximation to a sinewave
    Maximum configurable power in VA 500 VA
    Transfer time- 6 ms typical : 10 ms maximum
    Ambient air temperature for operation 0…40 °C
    Relative humidity 0…95 %
    Operating altitude 0...10000 ft
    Ambient air temperature for storage -15…45 °C
    Storage Relative Humidity 0…95 %
    Storage altitude 0.00…15240.00 m
    Acoustic level 40 dBA
    Heat dissipation 24 Btu/h

    Mounting mode- Not rack mountable
    Replacement Battery - RBC2

    Output

    • Output power capacity
      300Watts / 500VA
    • Max Configurable Power (Watts)
      300Watts / 500VA
    • Nominal Output Voltage
      230V
    • Output Frequency (sync to mains)
      47 - 63 Hz
    • Output Frequency (not synced)
      50/60 Hz +/-1 Hz
    • Topology
      Standby
    • Waveform type
      Stepped approximation to a sinewave
    • Output Connections
      (1) IEC 320 C13 (selector_surgetitle)
      (2) IEC Jumpers (selector_surgetitle)
      (3) IEC 320 C13 (Battery Backup)
    • Transfer Time
      6ms typical : 10ms maximum

    Input

    • Nominal Input Voltage
      230V
    • Input frequency
      50/60 Hz +/- 3 Hz (auto sensing)
    • Input Connections
      IEC-320-C14 inlet
    • Cord Length
      1.83meters
    • Input voltage range for main operations
      180 - 266V
    • Input voltage adjustable range for mains operation
      160 - 300V
    • Number of Power Cords
      2
    • Maximum Input Current
      7.0A

    Batteries & Runtime

    Communications & Management

    • Interface Port(s)
      Optional Simple Signalling RS232 cable , USB
    • Control panel
      LED status display with On Line : On Battery : Replace Battery and Overload indicators
    • Audible Alarm
      Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

    Surge Protection and Filtering

    • Surge energy rating
      310Joules
    • Data Line Protection
      Analog phone line for phone/fax/modem/DSL (RJ-45 connector)
    • Filtering
      Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449

    Physical

    • Maximum Height
      165mm , 16.5cm
    • Maximum Width
      91mm , 9.1cm
    • Maximum Depth
      284mm , 28.4cm
    • Net Weight
      6.32kg
    • Shipping weight
      7.05kg
    • Shipping Height
      178mm , 17.8cm
    • Shipping Width
      241mm , 24.1cm
    • Shipping Depth
      368mm , 36.8cm
    • Color
      Beige
    • Master Carton Units
      1.0
    • Units per Pallet
      48.0
    • SCC Codes
      107 31304 01635 6

    Environmental

    • Operating Environment
      0 - 40 °C
    • Operating Relative Humidity
      0 - 95 %
    • Operating Elevation
      0-3000meters
    • Storage Temperature
      -15 - 45 °C
    • Storage Relative Humidity
      0 - 95 %
    • Storage Elevation
      0-15000meters
    • Audible noise at 1 meter from surface of unit
      40.0dBA
    • Online thermal dissipation
      24.0BTU/hr

    Conformance

    • Approvals
      C-tick, CE, EN 50091-1, EN 50091-2, ENERGY STAR (EU), GOST, VDE
    • Equipment protection policy
      Lifetime : 100000 Euro, Lifetime : 50000 GBP
    • Standard warranty
      2 years repair or replace

    Sustainable Offer Status

    • RoHS
      Compliant
    • REACH
      REACH: Contains No SVHCs
    • PEP
      Available in Documentation tab
    • EOLI
      Available in Documentation tab
    APC Back-UPS 500VA/300W Standby UPS, Tower, 230V/10A Input, 4x IEC C13 Outlets, Lead Acid Battery, User Replaceable Battery
