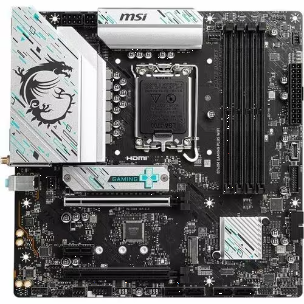

MSI B760M GAMING PLUS WIFI Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - Micro ATX - Core, Pentium Gold, Celeron Processor Supported - 256 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.1 B76
SKU: | 411807 |
---|---|
MPN: | B760M GAMING PLUS WIFI |
Manufacturer: | https://au.msi.com/ |
Brand: | Msi |
Warranty: | Standard Manufacturer's Warranty |
Availability: | In stock |
Fright Estimate |
Description
MSI B760M GAMING PLUS WIFI Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - Micro ATX - Core, Pentium Gold, Celeron Processor Supported - 256 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces
B760M GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want it all.
Extended Heatsink
- Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
- Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
- The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
- High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked 'keep-out-zone' allows for easy and safe installation and a perfect fit.
12+1+1 DUET RAIL POWER SYSTEM
Unleash and sustain the maximum performance with a VRM design built with a total of 12+1+1 power design. Combining dual power connectors and exclusive Core Boost technology, B760M GAMING PLUS WIFI is ready to sustain heavy daily work.
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
- 6 PCB layers
- 2oz Thickened Copper
EZ M.2 CLIP
Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.
Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks.
SOLID PIN DESIGN
The 4-pin, 8-pin, and 24-pin power connectors of MSI motherboards are all designed with solid pins. The solid pin design allows for a more stable transmission of 12V power to the CPU, even when handling high current loads.
ADVANTAGES OF SOLID PIN POWER CONNECTOR
- Improved stability : Larger contact area enhances stability during power delivery.
- Low impedance : Solid pins offer low impedance, enabling efficient power flow.
- Strong durability : The solid pin design ensures strong durability, capable of withstanding demanding conditions.
- Suitable for high-current applications.
ANTI-CORROSIVE STAINLESS STEEL IO SHIELD
Corrosive resistance IO Shield to help improve static electricity and reduce electromagnetic radiation noise from the system as well as more durable compare to traditional IO Shields.
- Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads are built for high performance system and non-stop gaming experience
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2 10G
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specifications
Audio Channels | 7.1 |
Brand Compatibility | Intel |
Onboard Video | CPU Dependent Video |
Form Factor | Micro ATX |
Width | 243.8 mm |
Depth | 243.8 mm |
Number of SATA Interfaces | 4 |
Total Number of Onboard USB Ports | 9 |
Number of Onboard USB 2.0 Ports | 4 |
Number of M.2 Interfaces | 2 |
Number of PCI Express x1 Slots | 1 |
Number of PCI Express x16 Slots | 2 |
PCI Express Standard | PCI Express 3.0 |
PCI Express 4.0 | |
Total Number of PCI Express Slots | 3 |
RAID Levels | 10 |
1 | |
0 | |
5 | |
Controller Type | Serial ATA/600 |
RAID Supported | Yes |
Maximum Memory Supported | 256 GB |
Memory Technology | DDR5 SDRAM |
Number of Memory Slots | 4 |
Memory Form Factor | DIMM |
UDIMM | |
Memory Speed Supported | 5800 MHz |
6000 MHz | |
6200 MHz | |
6400 MHz | |
6600 MHz | |
6800 MHz | |
5600 MHz | |
5400 MHz | |
5200 MHz | |
5000 MHz | |
4800 MHz |
Bluetooth | Yes |
Gigabit Ethernet | Yes |
Wireless LAN | Yes |
Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
Bluetooth Standard | Bluetooth 5.3 |
2.5Gigabit Ethernet | Yes |
Product Type | Gaming Desktop Motherboard |
Manufacturer Part Number | B760MGAMINGPLUSWIFI |
Manufacturer Website Address | http://au.msi.com |
Manufacturer | MSI |
Product Model | B760M GAMING PLUS WIFI |
Product Name | B760M GAMING PLUS WIFI Gaming Desktop Motherboard |
Brand Name | MSI |
HDMI | Yes |
HDMI Version | 2.1 |
Number of Network (RJ-45) Ports | 1 |
DisplayPort | Yes |
Total Number of USB Ports | 6 |
Number of USB 2.0 Ports | 2 |
Number of USB 3.2 Gen 2 Type-A Ports | 2 |
Processor Supported | Celeron |
Core | |
Pentium Gold | |
Total Processor Supported | 1 |
Processor Socket | Socket LGA-1700 |
Chipset Manufacturer | Intel |
Chipset Model | B760 |
Processor Generation Supported | 14th Gen |
13th Gen | |
14th Gen | |
13th Gen | |
12th Gen | |
12th Gen |
