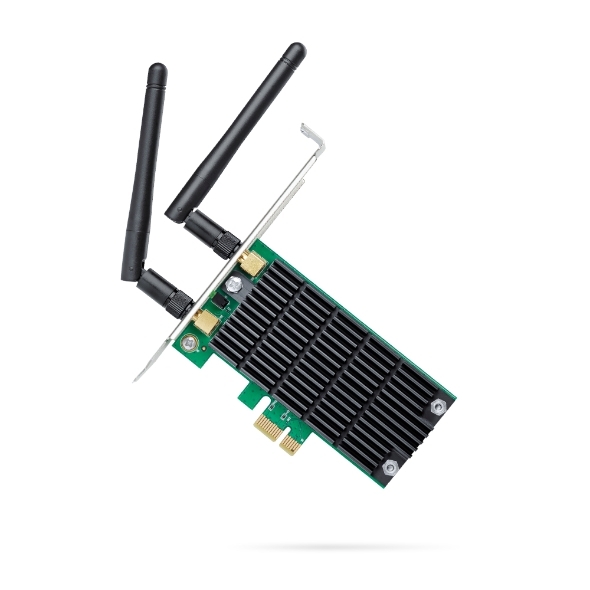

    Tp-Link Pci Express Adapter: Ac1200 Wireless Dual Band Ad-Hoc/ Infrastructure Mode With Lp Low-Profile

    Bracket Archer T4E
    $47.00
    SKU:275730
    MPN:Archer T4E Link
    Manufacturer:https://www.tp-link.com/au/
    Brand: Tp-link
    Warranty:Standard Manufacturer's Warranty
    Availability:

    Preorder 2-3 weeks

    Fright Estimate
    Add to Compare

    AC1200 Wireless Dual Band PCI Express AdapterArcher T4E

    • Easy Installation – Plug the adapter into an available PCI-E slot to upgrade your desktop
    • High-Speed Wi-Fi – Up to 1200 Mbps Wi-Fi speeds (867 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band)

    • 802.11ac Dual Band – 3 times faster than the 802.11n standard, perfect for high-intensity network usage

    • Beamforming – Wi-Fi signals are strengthened towards a certain direction where client exists

    • Multiple-Size Brackets – Low profile and full height brackets are both provided, suitable for all PCs

    • 2×2 MIMO – Users can easily access a high-speed wireless connection

    • Broad Wireless Range – Two external antennas ensure greater Wi-Fi coverage and enhanced stability

    802.11ac - Dual Band Wi-Fi for Faster Connections

    TP-LINK's Archer T4E supports the advanced Wi-Fi standard of IEEE 802.11ac, offering 3 times transferring rates as IEEE 802.11n. You can send emails and browse the web with 2.4GHz network, while keeping the speedy 5GHz band free for gaming, HD streaming and other bandwidth intensive applications.

    867Mbps

    5 GHz Band

    300Mbps

    2.4 GHz Band

    Greater Coverage
    with Beamforming

    Beamforming technology smartly focuses Wi-Fi signals towards connected devices for stable connections and boosted range.

    Other AC Adapter
    Beamforming
    Archer T4E

    Heat Sink for Ultimate Stability

    A heat sink helps to dissipate the thermal energy generated by the adapter, which in turn improves stability. Additionally, lower temperatures help to extend the product lifespan.

    Aluminum Alloy



    External Antennas for More Targeted signal

    Two external antennas utilize the latest wireless technology to achieve stable connections and boosted coverage.

    • Easy Setup

      Simple software installation with the intuitive Utility on the provided CD

    • Advanced Security

      WAP,WPA/WPA2,WPA-PSK/WPA2-PSK encryption standards ensure your data is safe from intruders

    • Operating System

      Supports Windows 10/8.1/8/7/XP(32/64 bit)

    • Low-Profile Bracket

      In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases

    HARDWARE FEATURES
    Interface PCI Express
    Dimensions ( W x D x H ) 4.8 x 4.5 x 0.85 in (120.8*115.2*21.5 mm)
    Antenna Type 2 Dual Band Detachable Antennas
    WIRELESS FEATURES
    Wireless Standards IEEE 802.11ac/n/a 5 GHz
    IEEE 802.11n/g/b 2.4 GHz
    Signal Rate 5 GHz
    11ac: Up to 867 Mbps(dynamic)
    11n: Up to 300 Mbps(dynamic)
    11a: Up to 54 Mbps(dynamic)

    2.4 GHz
    11n: Up to 300 Mbps(dynamic)
    11g: Up to 54 Mbps(dynamic)
    11b: Up to 11 Mbps(dynamic)
    　
    Reception Sensitivity 5 GHz :
    11ac HT80: -59.5 dBm
    11ac HT40: -63 dBm
    11ac HT20: -68 dBm
    11n HT40: -70 dBm
    11n HT20: -73 dBm
    11a 54Mbps: -76 dBm
    11a 6Mbps: -92 dBm

    2.4GHz :
    11n HT40: -67.5 dBm
    11n HT20: -70 dBm
    11g 54Mbps: -72 dBm
    11b 11Mbps: -86.5 dBm
    　
    Transmit Power 5 GHz : 24 dBm(FCC) / 23dBm(CE) (EIRP)
    2.4 GHz : 25 dBm(FCC) / 20dBm(CE) (EIRP)
    Wireless Modes Infrastructure mode
    Wireless Security Support 64/128 bit WEP, WPA/WAP2, WPA-PSK/WPA2-PSK, 802.1x
    Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
    OTHERS
    Certification CE, FCC, RoHS
    Package Contents AC1200 Wireless Dual Band PCI Express Adapter Archer T4E
    Low-Profile Bracket
    Quick Installation Guide
    Resource CD
    　
    System Requirements Windows 10/8.1/8/7/XP (32/64bit)
    Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
    Storage Temperature: -40℃~70℃ (-40℉~158℉)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
