PROART X870E-CREATOR WIFI//AMD,X870,USB4,WIFI7,MB PROART-X870E-CREATOR-WIFI
$967.00
| SKU: | 435299 |
|---|---|
| MPN: | 90MB1IG0-M0UAY0 |
| Brand: | ASUS - Components & Peripherals |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼

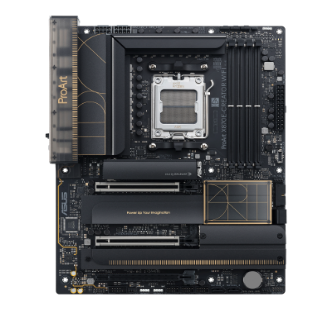

ProArt logoX870E-CREATOR WIFI
The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual USB4®, 10G and 2.5G Ethernet, and WiFi 7.
This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.
Specifications
▼
Specifications
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC |
| Chipset | AMD X870E |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
| I/O Connectors | 2 x USB4® (40Gbps) port(s) (2 x USB Type-C®), 1 x USB 20Gbps port (1 x USB Type-C®), 7 x USB 10Gbps ports (7 x Type-A), 1 x USB 2.0 port (1 x Type-A), 1 x DisplayPort (Input only), 1 x HDMITM port, 1 x Wi-Fi Module, 1 x Marvell® AQtion 10Gb Ethernet, 1 x Intel® 2.5Gb Ethernet, 3 x Audio jacks, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button |
| Integrated CPU Graphics | 1 x HDMI™ port, 2 x USB4® (40Gbps) ports support USB Type-C® display outputs |
| LAN | 1 x Marvell® AQtion 10Gb Ethernet, 1 x Intel® 2.5Gb Ethernet, ASUS LANGuard |
| PCI Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***); AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors: 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x8, PCIEX16(G5)_2 will be disabled); AMD Ryzen™ 8500 & 8300 Series Desktop Processors: 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x4, PCIEX16(G5)_2 will be disabled); AMD X870E Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode) |
| Processor Support | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors |
| RAID | AMD RAIDXpert2 Technology: Ryzen™ 7000 series processors: PCIe RAID 0/1/10, Ryzen™ 8000 series processors: PCIe RAID 0/1, Ryzen™ 9000 series processors: PCIe RAID 0/1/5/10, X870/B850/X670/B650/A620 chipset: SATA RAID 0/1/10 |
| RAM Type/Bus/Max | 4 x DIMM slots, max. 256GB, DDR5; Support up to8000+MT/s(OC) with Ryzen™ 9000 Series Processors, 8000+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM; Dual Channel Memory Architecture; Supports AMD Extended Profiles for Overclocking (EXPO™); ASUS Enhanced Memory Profile (AEMP) |
| Socket | AMD Socket AM5 |
| Storage Interface | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports; AMD Ryzen™ 9000 & 7000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode); AMD Ryzen™ 8000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_2 slot is not supported; AMD X870E Chipset: M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode); 4 x SATA 6Gb/s ports |
| Warranty | |
| Weight | |
| Wireless & Bluetooth | Wi-Fi 7 (Qualcomm QCNCM865 or MediaTek MT7927), 2x2 Wi-Fi 7** (802.11be), Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 320MHz bandwidth, Bluetooth® v5.4 |
