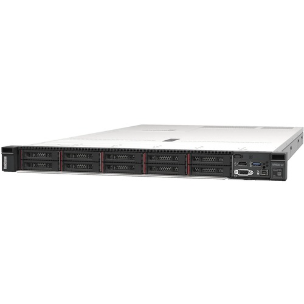

Lenovo THINKSYSTEM SR630 V2, 1XINTEL XEON SILVER 4310 12C 2.1GHZ 120W, 1X32GB 2RX8, SW RD, 1X750W, XCC ENTERPRISE, 7Z71A013AU
$4,477.00
| SKU: | 403783 |
|---|---|
| MPN: | 7Z71A013AU |
| Manufacturer: | https://www.lenovo.com/au/en/ |
| Brand: | Lenovo |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
▼
THINKSYSTEM SR630 V2, 1XINTEL XEON SILVER 4310 12C 2.1GHZ 120W, 1X32GB 2RX8, SW RD, 1X750W, XCC ENTERPRISE,
The Lenovo ThinkSystem SR630 V2 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 V2 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
Features
- Gigabit Ethernet port for ultra-fast network speeds
- RAID provides data reliability, fault tolerance and improves overall performance
- 750 W power supply unit (PSU) fulfils your system's power requirements
- With 32 GB memory, you can multitask between applications smoothly
Specifications
▼
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
Warranty
| Additional Warranty Information | Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD). |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
I/O Expansions
| Number of Total Expansion Slots | 2 |
| PCI Express Details | 2x LP Gen4 |
Storage
| Optical Drive Type | No |
| Total Hard Drive Capacity | No |
Display & Graphics
| Graphics Controller Manufacturer | Matrox |
| Graphics Controller Model | G200 |
| Graphics Memory Capacity | 16 MB |
Controllers
| RAID Levels | 0, 1, 5, 10, JBOD |
| Controller Type | 12Gb/s SAS |
| Serial ATA/600 | |
| RAID Supported | Yes |
| Controller Model | Intel RSTe RAID |
Physical Characteristics
| Weight (Approximate) | 26.30 kg |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 43.2 mm |
| Width | 439.4 mm |
| Depth | 772.2 mm |
Interfaces/Ports
| VGA | Yes |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 1 |
| Number of VGA Ports | 1 |
| Remote Management Controller | XClarity Controller (XCC) Enterprise |
Operating System
| Operating System | No |
| Operating System Supported | SUSE Linux Enterprise Server 15 SP4 |
| SUSE Linux Enterprise Server 12 SP5 | |
| SUSE Linux Enterprise Server 15 SP2 | |
| SUSE Linux Enterprise Server 15 SP3 | |
| Ubuntu 18.04 LTS | |
| Ubuntu 20.04 LTS | |
| Ubuntu 22.04 LTS | |
| Windows Server 2016 | |
| Windows Server 2019 | |
| Windows Server 2022 | |
| Red Hat Enterprise Linux 7.9 | |
| Red Hat Enterprise Linux 8.2 | |
| Red Hat Enterprise Linux 8.3 | |
| Red Hat Enterprise Linux 8.4 | |
| Red Hat Enterprise Linux 8.5 | |
| Red Hat Enterprise Linux 8.6 | |
| Red Hat Enterprise Linux 8.7 | |
| Red Hat Enterprise Linux 9.0 | |
| Red Hat Enterprise Linux 9.1 |
Power Description
| Input Voltage | 120 V AC |
| 230 V AC | |
| Power Source | Power Supply |
| Plug/Connector Type | C13/C14 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 750 W |
General Information
| Product Type | Server |
| Manufacturer Part Number | 7Z71A013AU |
| Manufacturer Website Address | http://www3.lenovo.com/au/en |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7Z71A013AU |
| Product Name | ThinkSystem SR630 V2 7Z71A013AU Server |
| Product Line | ThinkSystem |
| Product Series | SR630 V2 |
| Brand Name | Lenovo |
Memory
| Error Checking | ECC |
| Maximum Memory Supported | 8 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 32 GB |
| Memory Technology | TruDDR4 |
| Number of Total Memory Slots | 32 |
| Number of Occupied Memory Slots | 1 |
| Intel Optane Memory Ready | Yes |
| Memory Clock Speed | 3.20 GHz |
Miscellaneous
| Security Features |
|
| Environmentally Friendly | Yes |
| Environmental Certification | GREENGUARD |
| EPEAT Bronze | |
| ENERGY STAR 3.0 | |
| CELP | |
| CECP | |
| RoHS | |
| Energy Star | Yes |
Processor
| Cache | 18 MB |
| Processor Speed | 2.10 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4310 |
| Processor Core | Dodeca-core (12 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Generation | 3rd Gen |
