Ergotron Lx Desk Dual Direct Arm Polished 45-489-026
| SKU: | 245487 |
|---|---|
| MPN: | 45-489-026 Link |
| Manufacturer: | http://www.ergotron.com/ |
| Brand: | Ergotron |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | Preorder 2-3 weeks |
| Fright Estimate |
Description
Description

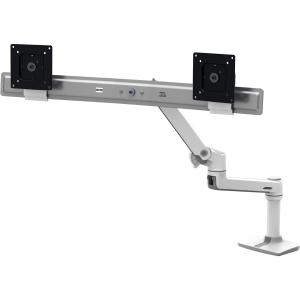

Ergotron 45-489-026 creates a fully adjustable side-by-side monitor configuration that lifts both LCD screens simultaneously to where they’re easier to see while reclaiming valuable desktop space.
Reposition your LCDs with just a touch. Up. Down. Forward. Back. The low–profile crossbow allows monitors to move simultaneously with ease. Monitors pivot up and down independently providing a compact range of motion and optimal monitor alignment.
Technical Drawing
Technical Specifications
| | | | | | | |
| Screen | Capacity | Lift | Tilt | Pan | Rotation | VESA |
| Up to 25" | 2-11 lbs 0.9-5.0 kg | 13" 33.0 cm | 30° | 360° | 360° | MIS-D |
Product Information
| Part Number | 45-489-026 (polished aluminum) |
| Description | LX Desk Dual Direct Arm |
| Includes |
|
| Cable Management | Streamline cable management that routes cables under arm and within extension |
| Portrait/Landscape | Portrait/landscape rotation with lockout |
| Handle | For Dual Direct Arm available as an accessory (98–037–062) |
| Mounting Standards | VESA FDMI MIS–D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
| Grommet Mount | Attaches through hole 5/16" to 2" (7–51 mm) wide and up to 3" (80 mm) thick |
| Weight Capacity | Maximum individual LCD weight = 2–11 lbs (1–5 kg) per monitor. Total weight capacity = 4–22 lbs (1.8–9.9 kg) |
| Tilt Range | 15° backward, 15° forward |
| Extended Reach | Up to 24.3" (61.7 cm) |
| Vertical Height Adjustment | 13" (33 cm) Vertical Height Adjustment with total monitor weight less than 17 lbs (7.7 kg). If total monitor weight greater than 17 lbs (7.7 kg), the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm) |
| Maximum Outside Width of Display | Is 25.1" (63.8 cm) when displays are 1.8" (4.8 cm) thick; 24.8" (63 cm) wide when monitor is 2.6" (6.6 cm) thick. Accommodates most displays with screen–size up to 25" as well as some displays with screens as large as 27". Actual allowable width of displays will vary slightly depending on display thickness |
| Shipping Dimensions | 32.8" x 13" x 7" (83 x 33 x 18 cm) |
| Shipping Weight | 15.5 lbs (6.6 kg) |
| Warranty | Ten (10) years |
Benefits
-
Increases viewing comfort: Helps reduce eye, back and neck strain
-
The low-profile monitor cross-bar provides a compact range of motion
-
Easily move two monitors simultaneously
-
Each monitor has individual tilt
-
Position LCD screens for maximum ergonomic comfort - promotes wellness in any work area
-
Free up your desktop to increase your workspace
-
Easy to use - simple installation and effortless operation
-
Patented CF motion technology provides premium ease-of-use display adjustment
-
Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment
Specifications
| Model | 45-489-026 |
| Manufacturer | Ergotron |
| Part Number | 45-489-026 |
| UPC | 698833058192 |
| Color | Polished aluminum |
| Monitor Size | Up to 25" |
| Weight Capacity | Maximum individual LCD weight = 2–11 lbs (1–5 kg) per monitor. Total weight capacity = 4–22 lbs (1.8–9.9 kg) |
| Lift | (33 cm) 13 in |
| Tilt | Backward 15 degree, forward 15 degree |
| Pan | 360 degree |
| Rotation | 360 degree |
| Mounting Pattern | VESA FDMI MIS–D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) |
| Grommet Hole Size Range | 5/16" to 2" (7–51 mm) wide and up to 3" (80 mm) thick |
| Maximum Extension | Up to 24.3" (61.7 cm) |
| Shipping Dimensions | 32.8" x 13" x 7" (83 x 33 x 18 cm) |
| Shipping Weight | 15.5 lbs (6.6 kg) |
| Warranty | Ten (10) years |
| Mounting Options | Desk |
| Number of Monitors | 2 Monitors |
