Ion F15R 1600Va Line Interactive Ups 1Ru Rack Mount Ups 4 X Iec C13 3Yr Advanced Replacement Warranty. Rail Kit Inc. F15R-1600

$818.00
SKU:296326
MPN:F15R-1600 Link
Manufacturer:https://www.ionups.com.au/
Brand: ION
Warranty:Standard Manufacturer's Warranty
Availability:

In stock

Fright Estimate

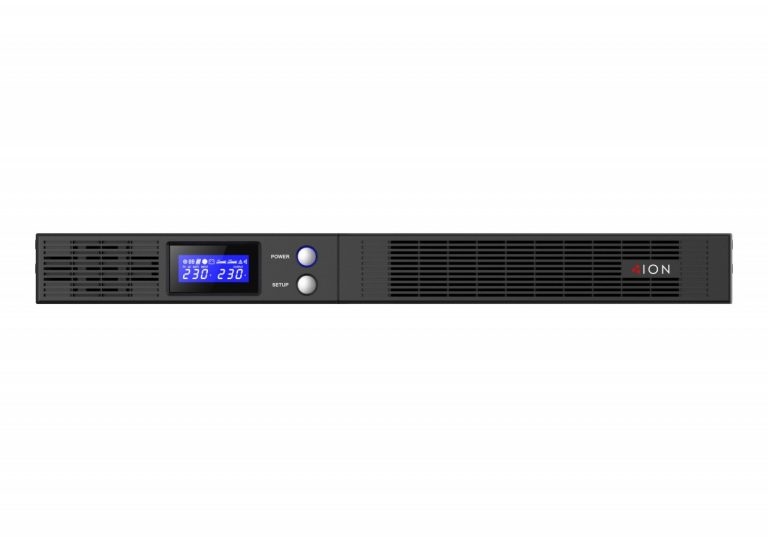

ION F15R line interactive pure sinewave 1RU rack / tower UPS has been designed for high power density protection in a compact footprint. Ranging from 650VA, 1200VA & 1600VA the F15R comes with the option for network management cards as well as Wi-Fi. The F15R UPS also has a LCD user interface to simplify monitoring. The F15R range is the perfect way to flexibly integrate reliable power supply and protection for security products, servers, switches, routers storage devices and short depth rack applications exposed to potential data loss, corruption and downtime.
  • -3 year advanced replacement warranty
  • -Fanless Technology
  • -Stable Low Frequency Design
  • -Pure Sine Wave Automatic Voltage Regulation (AVR)
  • -Energy Saving UPS Technology
  • -Auto-Restart/Auto-Charge
  • -User-Friendly LCD Display
  • -Cold Start Function
  • -Optional SNMP and SNMP Wi-Fi cards
  • -HID USB & RS232 Connectivity Ports
  • -Optional Conformal Coating for harsh environments
  • -For all Warranty / DOA claims, contact ION Warranty Support Line - 1300 700 805
  • -Rail Kit Included

Technical Specifications



F15R-650

F15R-1200

F15R-1600



Output

Output Power Capacity

390W/650VA

720W/1200VA

960W/1600VA

Max Configurable Power (kW)

390W/650VA

720W/1200VA

960W/1600VA

Nominal Voltage (Batt.mode)

220-240Vac

Frequency (Batt.mode)

50/60±1% Hz

Waveform (Batt.mode)

Pure Sinewave

THDv

≤ 3% @ linear load, ≤5%@non-linear load

Transfer Time

4ms typical

Overload Protection

Circuit breaker or inner firmware protection

Input

Nominal Input Voltage

220-240Vac

Voltage Range

165-290Vac

Frequency

50/60Hz (Auto sensing)

Indicators

Display

LCD

Alarm

Batt. Mode, low battery, overload, fault, etc.

Battery

Battery Voltage

12V

24V

24V

Battery Type

6V9AH

6V7AH

6V9AH

Total Battery Quantity

2

4

4

Recharge Time (to 90%)

4H

4H

4H

Charger Current

1A

1A

1A

UPS Physical

Maximum Height

44mm

44mm

44mm

Maximum Width

433mm

433mm

433mm

Maximum Depth

216mm

485mm

485mm

Net Weight

8.6kg

13kg

13kg

Communication

RS232

Yes

EPO

Yes

Optional Communication

Yes

Management

Energy Saving function

Yes

Auto Recharge

Yes

Auto Restart

Yes

Power Management Software

Yes

Environment

Operation Temperature

0-40°C

Operation Humidity

0-90% non-condensing

Conformance

Approvals

CE

Standard Warranty

3 Year Advanced Replacement*

ION F15R line interactive pure sinewave 1RU rack / tower UPS has been designed for high power density protection in a compact footprint. Ranging from 650VA, 1200VA & 1600VA the F15R comes with the option for network management cards as well as Wi-Fi. The F15R UPS also has a LCD user interface to simplify monitoring. The F15R range is the perfect way to flexibly integrate reliable power supply and protection for security products, servers, switches, routers storage devices and short depth rack applications exposed to potential data loss, corruption and downtime.
⚫3 year advanced replacement warranty
⚫Fanless Technology
⚫Stable Low Frequency Design
⚫Pure Sine Wave Automatic Voltage Regulation (AVR)
⚫Energy Saving UPS Technology
⚫Auto-Restart/Auto-Charge
⚫User-Friendly LCD Display
⚫Cold Start Function
⚫Optional SNMP and SNMP Wi-Fi cards
⚫HID USB & RS232 Connectivity Ports
⚫Optional Conformal Coating for harsh environments
⚫For all Warranty / DOA claims, contact ION Warranty Support Line - 1300 700 805
⚫Rail Kit Included
