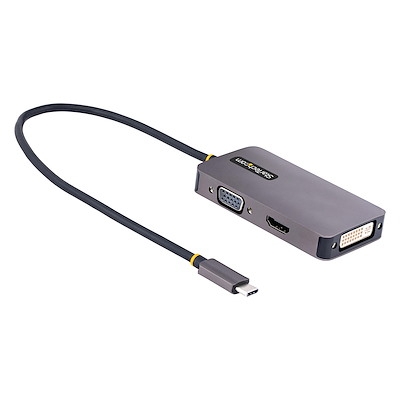

STARTECH USB C VIDEO ADAPTER to HDMI DVI VGA, 4K 60Hz DISPLAY, 3YR 118-USBC-HDMI-VGADVI
| SKU: | 402881 |
|---|---|
| MPN: | 118-USBC-HDMI-VGADVI Link |
| Manufacturer: | https://www.startech.com |
| Brand: | Startech |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
USB-C SINGLE MONITOR ADAPTER: USB-C DP Alt-mode to HDMI 2.0b (4K 60Hz, 7.1ch Audio, HDR, HDCP 2.2), VGA (1920x1200 60Hz) or DVI-I (1080p 60Hz, HDCP 1.4); This USB C to HDMI DVI VGA Adapter supports dual mirrored video output for VGA & HDMI or VGA & DVI-I
4K 60Hz RESOLUTION: The USB C Video Adapter's HDMI output supports 4K 60Hz and Ultra Wide Screen resolutions up to 3840x1080p 60Hz; Compatible with lower resolutions; Works with monitors and displays from Dell, Asus, Acer, LG, Samsung, Sharp, Sony
WIDE HOST COMPATIBILITY: Compatible with USB-C, Thunderbolt 3 and Thunderbolt 4 Laptops, Ultrabooks and Chromebooks, from HP, Dell, Surface, Lenovo, MacBooks (Intel and M1 chip) | The USB C Multiport Video Adapter works on Windows, macOS and Linux
TOUGH & PORTABLE: Durable all aluminium USB Type-C multiport adapter with small form factor is designed for easy transport in a laptop bag; The USB C Video Adapter is convenient for on-the-go use between office, home, shared spaces, and business travel
EASY TO USE: Plug and Play (PnP) installation, no software or drivers required; Extended 12" (30cm) attached cable for setup flexibility; The USB C Adapter is compatible with screw locking cables for secure connection with VGA/DVI displays and projectors
Specifications
Warranty Information
Warranty
3 Years
Connector(s)
Connector A
1 - USB-C (24 pin) DisplayPort Alt Mode
Connector B
1 - VGA (15 pin, High Density D-Sub)
1 - 29 pin DVI-I (Dual Link) Female
1 - HDMI
Environmental
Operating Temperature
0℃ to 45℃ (32°F to 113°F)
Storage Temperature
-10℃ to 70℃ (14°F to 158°F)
Humidity
10% ~ 85 % RH
Hardware
Active or Passive Adapter
Active
AV Input
USB-C
AV Output
VGA
DVI-I (Digital Only) - Dual-Link
HDMI
Chipset ID
ITE - IT6224FN
Packaging Information
Package Height
1.2 in [3.0 cm]
Package Length
5.6 in [14.2 cm]
Shipping (Package) Weight
4.5 oz [127.0 g]
Package Width
6.9 in [17.5 cm]
Package Quantity
1
Performance
Maximum Analog Resolutions
1920 x 1200 @ 60 Hz (VGA)
Maximum Digital Resolutions
3840 x 2160 @ 60 Hz (HDMI)
1920 x 1200 @ 60 Hz (DVI)
Wide Screen Supported
Yes
Audio Specifications
VGA - No Audio Support
DVI - No Audio Support
HDMI - 7.1 Channel Audio
Physical Characteristics
Color
Gray
Product Height
0.6 in [1.4 cm]
Product Length
3.3 in [8.5 cm]
Weight of Product
2.6 oz [75.0 g]
Product Width
1.8 in [4.5 cm]
Cable Length
11.8 in [300 mm]
Power
Power Source
Bus Powered
Input Voltage
5V DC
Output Voltage
5 DC
Software
OS Compatibility
No Drivers or Software Required
Special Notes / Requirements
Note
This adapter does not support MST or dual extended displays
Support for dual mirrored displays only using combinations of VGA & HDMI or VGA & DVI-I
What's in the Box
Included in Package
1 - USB-C Multiport Video Adapter
