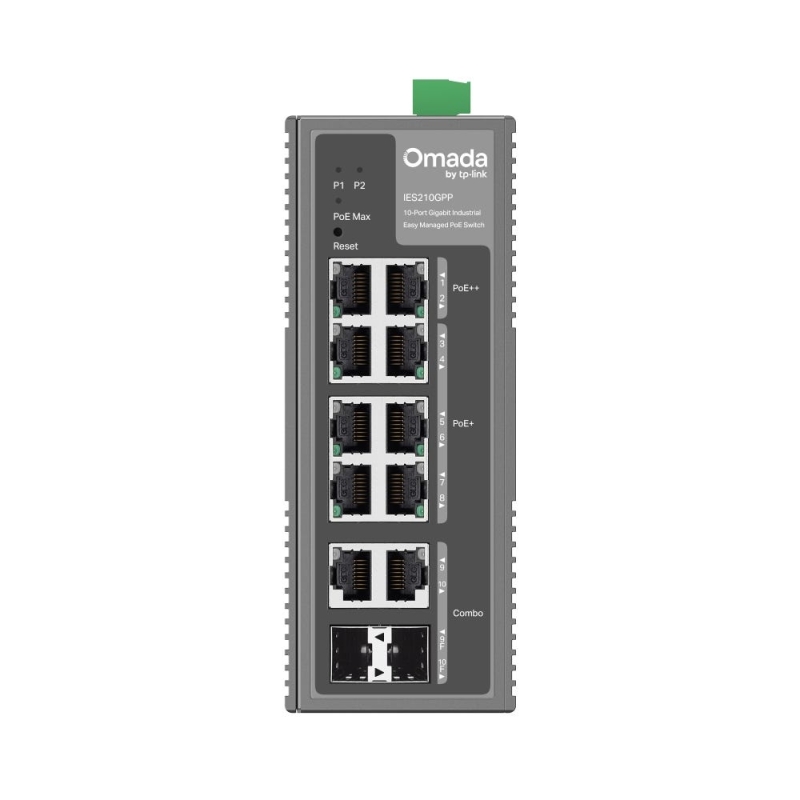

Deploy robust and reliable connectivity in the harshest environments with the TP-Link Omada IES210GPP 10-Port Gigabit Industrial Easy Managed Switch. Engineered for extreme conditions, this rugged switch operates flawlessly in temperatures ranging from -40°C to 75°C. It is housed in a durable IP40 aluminium enclosure that resists vibration and shock, making it the perfect choice for factories, outdoor enclosures, and intelligent transportation systems. The fanless design ensures silent operation while preventing dust ingress, further enhancing its longevity in challenging industrial settings.

Designed to power high-consumption devices, the IES210GPP features eight Gigabit RJ45 ports, including two 802.3bt PoE++ ports capable of delivering up to 60W each, and six 802.3at PoE+ ports offering up to 30W. With a total power budget of up to 240W, this switch can easily support power-hungry equipment such as heater-equipped PTZ cameras, Wi-Fi 6 access points, and digital signage. Two additional Gigabit Combo SFP/RJ45 slots provide flexible fiber uplink options, allowing for long-distance data transmission essential for sprawling facilities.

Seamlessly integrate your industrial network into the Omada Software Defined Networking (SDN) platform for centralised management. This feature allows network administrators to monitor, configure, and troubleshoot the switch remotely via the Omada app or web interface, ensuring maximum uptime without the need for on-site visits. The IES210GPP supports comprehensive Layer 2 features including VLAN, QoS, and IGMP Snooping, optimising traffic flow and ensuring security for critical data streams.

Reliability is paramount in industrial applications, which is why this switch is equipped with dual redundant 12-57V DC power inputs. In the event of a power source failure, the system automatically switches to the backup input to maintain continuous operation. Combined with 6kV lightning protection on all ports, the TP-Link IES210GPP safeguards your network infrastructure against electrical surges and unexpected outages. Sold as a single unit.

FEATURES

• 10 Gigabit Ports (8x RJ45, 2x Combo SFP/RJ45)
• 2x 802.3bt PoE++ Ports (up to 60W per port)
• 6x 802.3at PoE+ Ports (up to 30W per port)
• Up to 240W Total PoE Power Budget
• Rugged IP40 Aluminium Casing
• Wide Operating Temperature (-40°C to 75°C)
• Omada SDN Cloud Management Integration
• Dual Redundant DC Power Inputs (12-57V)
• 6kV Lightning Protection
• DIN-Rail and Wall-Mountable

SPECIFICATIONS

• Interface: 8x 10/100/1000Mbps RJ45 Ports, 2x Gigabit Combo SFP/RJ45 Slots
• PoE Standard: 802.3af/at/bt
• PoE Ports: Ports 1-2 (PoE++ 60W), Ports 3-8 (PoE+ 30W)
• PoE Power Budget: Up to 240W (depending on input voltage)
• Switching Capacity: 20Gbps
• Packet Forwarding Rate: 14.88Mpps
• MAC Address Table: 8K
• Jumbo Frame: 15KB
• Power Supply: 12-57V DC Dual Redundant Inputs
• Max Power Consumption: 258.33W (with 240W PD connected)
• Dimensions: 155mm x 120mm x 60mm
• IP Rating: IP40
• Material: Aluminium Casing
• Operating Temperature: -40°C to 75°C
• Mounting: DIN-Rail, Wall-Mount
• Management: Omada Cloud-Based SDN, Web, App
• Product Code: IES210GPP

WARRANTY

5-Year Limited Warranty
