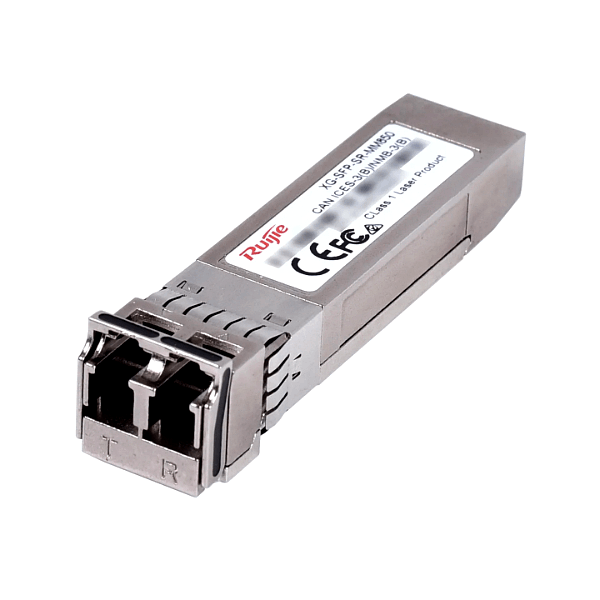

Ruijie Reyee 10GBASE-SR SFP+ Transceiver - Multi Mode - 850NM, 300M, LC,3YR XG-SFP-SR-MM850
$187.00
| SKU: | 438518 |
|---|---|
| MPN: | XG-SFP-SR-MM850 Link |
| Manufacturer: | https://www.ruijie.com |
| Brand: | REYEE |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
The Ruijie Reyee XG-SFP-SR-MM850 is a small hot pluggable SFP+ optical transceiver module for high speed (10Gbps) data transmission over short distances (up to 300 meters) using multimode fiber (MMF) with an 850nm wavelength featuring an LC connector. Ideal for connecting switches, servers and routers in data centers and enterprise networks.
Highlights
- 10GBase-SR
- Duplex LC
- MMF
- 300M
Highlights
- 10GBase-SR
- Duplex LC
- MMF
- 300M
Specifications
▼
| Data Rate | 10.3125Gbps |
| Form Factor | SFP+ |
| Connector Type | Duplex LC |
| Cable Type | MMF |
| Fiber End Face Finish Type | Ultra Physical Contact (UPC) |
| Transmitter Type | VCSEL |
| Receiver Type | PIN |
| Reach | 300m (OM3) & 400M (OM4) |
| Bit Error Ratio (BER) | 1.00E-12 |
| Data Diagnosis Capable (DDM/DOM) | Yes |
| Power Consumption | ≤ 1.5W |
| Wavelength (nm) | 850 |
| Max Transmit Power (AVG) | -1dBm |
| Min Transmit Power (AVG) | –7.3dBm |
| Min Extinction Ratio | ≥ 3dB |
| Receive Sensitivity (OMA) | < –11.1dBm |
| Overload Optical Power (AVG) | -1dBm |
| Operating Temperature | 0°C to 70°C |
| Operating Humidity | 10% RH to 90% RH |
| Dimensions (W x D x H) | 56.5mm x 13.5mm x 8.5mm |
| Weight | 35g |
Vendor Info
▼
The Ruijie Reyee XG-SFP-SR-MM850 is a small hot pluggable SFP+ optical transceiver module for high speed (10Gbps) data transmission over short distances (up to 300 meters) using multimode fiber (MMF) with an 850nm wavelength featuring an LC connector. Ideal for connecting switches, servers and routers in data centers and enterprise networks.
