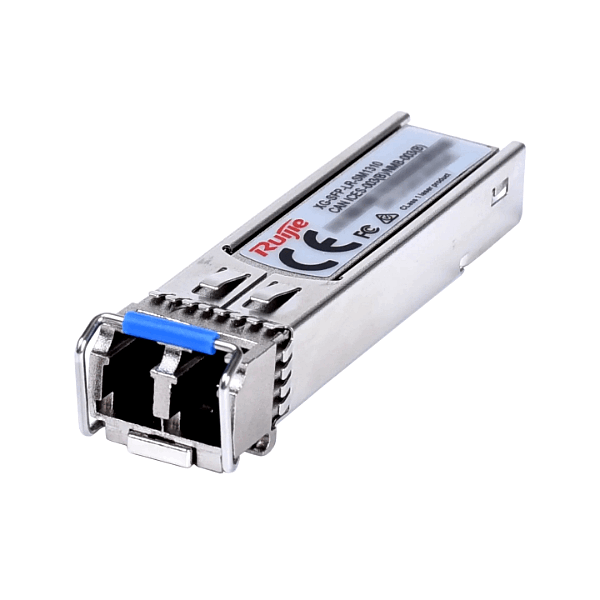

Ruijie Reyee 10GBASE-LR SFP+ Transceiver - Single Mode - 1310NM, 10KM, LC,3YR XG-SFP-LR-SM1310
$286.00
| SKU: | 438517 |
|---|---|
| MPN: | XG-SFP-LR-SM1310 Link |
| Manufacturer: | https://www.ruijie.com |
| Brand: | REYEE |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
The Ruijie Reyee XG-SFP-LR-SM1310 is a 10 Gigabit (10G) SFP+ transceiver module for high speed networking designed for Long Range (LR) connections over single mode fiber (SMF) up to 10 kilometers using a 1310nm wavelength with a standard LC duplex connector. Idea; for data centers, enterprise networks and service provider applications, offering hot-pluggable, reliable and cost effective 10GbE connectivity.
Highlights
- 10GBase-LR
- Duplex LC
- SMF
- 10KM
Highlights
- 10GBase-LR
- Duplex LC
- SMF
- 10KM
Specifications
▼
| Data Rate | 10.3125Gbps |
| Form Factor | SFP+ |
| Connector Type | Duplex LC |
| Cable Type | SMF |
| Fiber End Face Finish Type | Ultra Physical Contact (UPC) |
| Transmitter Type | DFB |
| Receiver Type | PIN |
| Reach | 10KM |
| Bit Error Ratio (BER) | 1.00E-12 |
| Data Diagnosis Capable (DDM/DOM) | Yes |
| Power Consumption | ≤ 1.5W |
| Wavelength (nm) | 1310 |
| Max Transmit Power (AVG) | 0.5dBm |
| Min Transmit Power (AVG) | –8.2dBm |
| Min Extinction Ratio | ≥ 3.5dB |
| Receive Sensitivity (OMA) | < –12.6dBm |
| Overload Optical Power (AVG) | 0.5dBm |
| Operating Temperature | 0°C to 70°C |
| Operating Humidity | 10% RH to 90% RH |
| Dimensions (W x D x H) | 56.5mm x 13.5mm x 8.5mm |
| Weight | 35g |
Vendor Info
▼
The Ruijie Reyee XG-SFP-LR-SM1310 is a 10 Gigabit (10G) SFP+ transceiver module for high speed networking designed for Long Range (LR) connections over single mode fiber (SMF) up to 10 kilometers using a 1310nm wavelength with a standard LC duplex connector. Idea; for data centers, enterprise networks and service provider applications, offering hot-pluggable, reliable and cost effective 10GbE connectivity.
