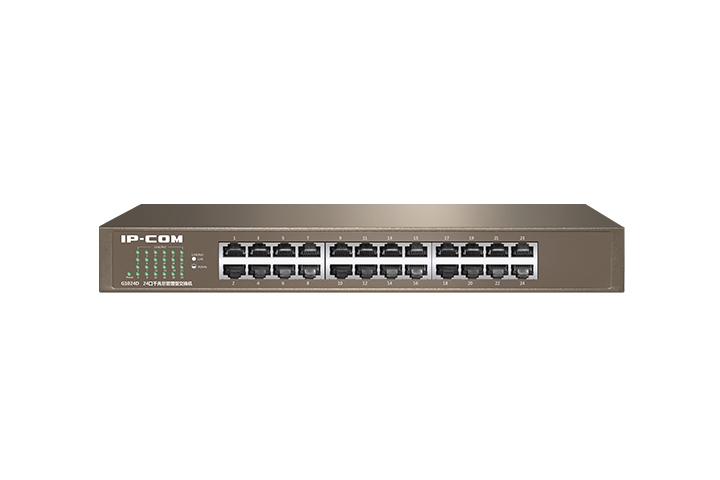

IP-COM (G1024Dv7.0) 24-Port Gigabit Unmanaged Switch G1024Dv7.0
$127.00
| SKU: | 408022 |
|---|---|
| MPN: | G1024Dv7.0 Link |
| Manufacturer: | https://www.ip-com.com.cn/au |
| Brand: | IP-COM |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
- Captive Portal/PPPoE Server
- Compliant with IEEE802.3, IEEE802.3u, IEEE802.3X, IEEE802.3ab standards
- 24*10/100/1000 Mbps auto-negotiation RJ45 ports
- Auto MDI/MDIX
- 8000 MAC address and MAC auto Learning & Auto Aging
- IEEE 802.3x full duplex flow control, and backpressure half duplex flow control
- 48 Gbps switching fabric for non-blocking line-speed forwarding
- LED indicators for indicating working status and troubleshooting
- Built-in power supply system with 6 kV common mode and 4 kV differential mode lightning protection
- 24 ports with 6 kV common mode lightning protection
- IP camera connection
- Plug and play
Specifications
▼
| Standard&Protocol | IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE 802.3ab |
| Forwarding Speed | 10Mbps : 14880pps 100Mbps : 148800pps 1000Mbps : 1488000pps |
| Transmission Media | 10BASE-T: UTP category 3, 4, 5 cable 100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable |
| Port | 24*10/100/1000Mbps auto-negotiation RJ 45 ports (Auto MDI/MDIX) |
| LED Indication | 24* Link/Act indicator,1*power indicator |
| Dimensions | 297mm×178mm×44mm |
| Switch Feature | Store-and-Forward MAC auto Learning & Auto Aging 8K MAC 48Gbps Backpanel bandwidth |
| Lighting Proof | lightning protection 6KV for power supply,6KV for all ports |
| Power Input | 100~240V AC，50/60Hz |
| Operating Environment | Temperature:0℃~45℃ Humidity:10%~90% non-condensing |
| Storage Environment | Temperature:-40℃~70℃ Humidity:5%~90% non-condensing |
