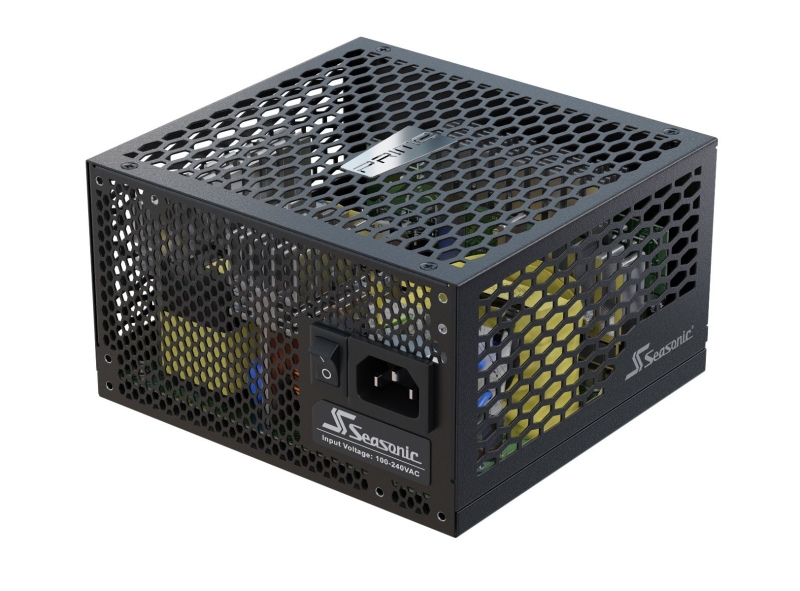

Seasonic Prime Fanless PX-500 500W Platinum PSU (SSR-500PL)
$310.00
| SKU: | 407079 |
|---|---|
| MPN: | PSUSEAPX500 |
| Manufacturer: | https://seasonic.com/ |
| Brand: | Seasonic |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
FEATURE SUMMARY80 PLUS® Platinum certified
Micro Tolerance Load Regulation (0.5%)
True Fanless Design
Multi-GPU setup
Gold plated connectors
12 years warranty
| Technical Specifications | ||
| 80PLUS® | Platinum | |
| Cybenetics Efficiency Level | TBA | |
| Cybenetics Noise Level | TBA | |
| Form Factor | Intel ATX 12V | |
| Dimensions | 140 mm (L) x 150 mm (W) x 86 mm (H) | |
| Fan Information | Fan Size | N/A |
| Fan Control | N/A | |
| Fan Bearing | N/A | |
| Life Expectancy | N/A | |
| Cable Information | Modularity | Fully Modular |
| Cable type | Webbed cables (MB, CPU, PCIe) Flat black cables | |
| Electrical Features | Operating Temperature | 0 - 50°C (derating from 100% to 80% from 40°C to 50°C) |
| MTBF @ 25 °C, excl. fan | 150,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 12 Years | |
Power Output | ||||||
|---|---|---|---|---|---|---|
| AC Input | Voltage: 100 V - 240 V | |||||
Current: 7 - 4 A |
||||||
Frequency: 50 Hz - 60 Hz | ||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V | -12 V | +5 VSB |
Maximum Power |
20 A |
20 A |
41 A |
0.3 A |
3 A | |
100 W |
492 W |
3.6 W |
15 W | |||
Total Continuous Power |
500 W |
|||||
