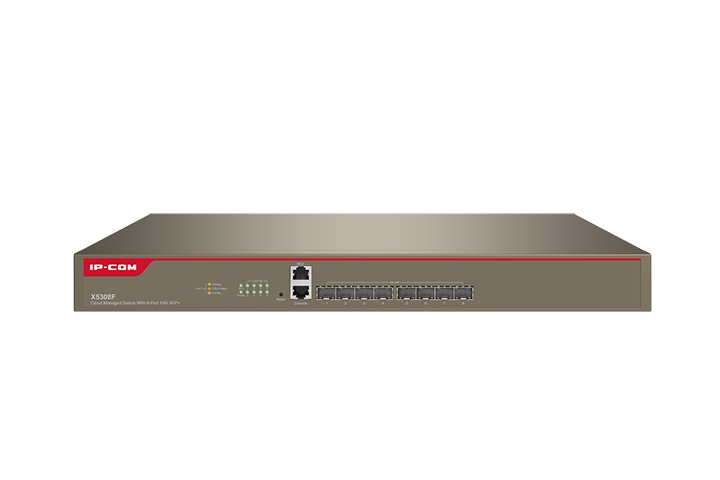

IP-COM (X5308F) 8-Port 10G SFP+ Cloud Managed Switch
$487.00
| SKU: | 405423 |
|---|---|
| MPN: | X5308F Link |
| Manufacturer: | https://www.ip-com.com.cn |
| Brand: | IP-COM |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
- Complies with IEEE 802.3/u/ab/ae/ad/z/x, IEEE 802.1p/q/w/d/s standards
- 8 independent 10G Base-X SFP+ ports, and 1 Console port, and 1 MGT port
- 16K MAC address and MAC address automatic learning
- 12 Mb large buffer,Switching capacity: 160 Gbps
- Supports DHCP server, static routing, QVLAN, IGMP, QoS, ACL, DHCP snooping, SSH and other functions
- Supports ProFi Cloud web UI management, ProFi App management and visualized local management
Specifications
▼
| Hardware specifications | |
|---|---|
| Network standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3z, IEEE 802.3x, IEEE 802.1p, IEEE 802.1q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s |
| LED indicators | One Link/Act or PoE LED indicator for each port One Power LED indicator for each device One SYS LED indicator for each device |
| Fixed ports | 8 × 10G Base-X SFP+ ports 1 × RJ45 Console port 1 × RJ45 MGT port |
| Lightning protection | Power supply: 6 kV |
| Forwarding mode | Store-and-forward |
| Switching capacity | 160 Gbps |
| Packet forwarding rate | 119.04 Mpps |
| Switching buffer | 12 Mbit |
| MAC address table | 16K |
| Input voltage | 100 - 240V AC 50/60Hz |
| Dimensions (L x W x H) | 440 mm × 179.6 mm × 44 mm |
| Environment | Operating temperature: 0°C - 45°C Operating humidity: (10% - 90%)RH, non-condensing Storage temperature: -40°C - 70°C Storage humidity: (5% - 90%)RH, non-condensing |
| Certificates | FCC, CE, RoHS |
| Software features | |
| Security Features | ARP receiving limit Unknown MAC address discard DoS attack defense 802.1x security authentication RADIUS authentication HTTPS secure access SSHv2 secure access |
| VLAN | 802.1Q VLAN and 4 K VLAN table Voice VLAN MAC VLAN IP subnet-based VLAN Protocol VLAN |
| IPv6 | IPv6 ND IPv6 Path MTU discovery IPv6 Static routing IPv6 ACL |
| DHCP | DHCP server DHCP relay DHCP snooping Supports option 82 policy configuration |
| L3 Routing | Inter-VLAN routing IPv4 static routing Static ARP |
| Port aggregation | Support Static aggregation Support Dynamic aggregation |
| STP | Support IEEE 802.1d STP (Spanning Tree Protocol) Support IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) Support IEEE 802.1s MSTP (Multiple Spanning Tree Protocol) Support edge ports Support BPDU statistics |
| IGMP | Support IGMP snooping V1/V2/V3 Support fast leave of ports |
| Port mirroring | Support N: 1 port mirroring |
| QoS | SR (Strict Priority) SWRR (Simple Weighted Round Robin) WRR (Weighted Round Robin) Supports 802.1p port trust mode Supports DSCP port trust mode Supports a maximum of 8 queues service quality mapping Supports Tail-drop |
| ACL | Support MAC ACL Support IPv4 ACL |
| Cloud Management | Supports remote configuration delivery through ProFi Cloud web UI platform Supports ProFi App management Supports log reporting and fault detection Supports remote maintenance: restart, backup and upgrade |
| Local Visualization | Supports discovery and recognition of network devices such as routers, switches and APs through the LLDP protocol Supports camera discovery and recognition through the ONVIF protocol Supports automatic generation of topology Supports local view and main view Supports online/offline detection of clients Supports remote restarting of cameras Supports loop alert Supports custom device type and device name |
| Loading and upgrade | Support HTTP upgrade Support Configuration import and export |
| Management and maintenance | Support Telnet configuration Support SNMP V1/V2/V3 Support RMON Support LLDP-MED Support web management and maintenance Support system log Support log classification Support NTP Support Ping and Tracert tests Support memory and CPU monitoring |
