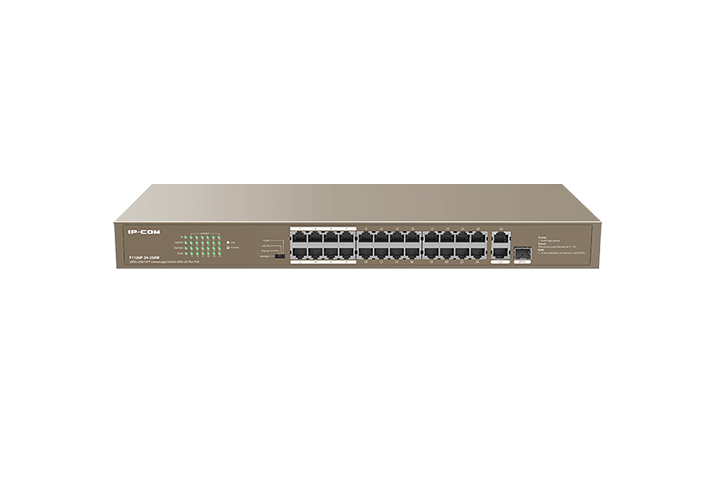

    main product photo

    IP-COM F1126P-24-250W 24FE+2GE/1SFP Unmanaged Switch With 24-Port PoE

    $310.00
    SKU:404212
    MPN:F1126P-24-250W Link
    Manufacturer:https://www.ip-com.com.cn/au
    Brand: IP-COM
    Warranty:Standard Manufacturer's Warranty
    Availability:

    In stock

    Fright Estimate
    Add to Compare
    • Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x and IEEE802.3af/at standards
    • 24*10/100 Mbps Base-TX RJ45 ports for data transmission and power supply, 2*10/100/1000 Mbps Base-T RJ45 ports for data transmission, 1*1000 Mbps Base-X SFP slot（Combo）
    • 16 K MAC address table and MAC address auto-learning
    • IEEE 802.3x-compliant full-duplex flow control and half-duplex backpressure flow control
    • 8.8 Gbps backplane bandwidth
    • Maximum power consumption of a single port: 30W Maximum power consumption of the switch: 250W
    • 4 Mb cache size for smooth video surveillance
    • 4 modes: standard, priority, extend and VLAN
    • Rack mounting
    Standards IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af/at
    LED indicators 24 * Link/Act LEDs
    1 * G1 LED
    1 * G2/SFP2 LED
    1 * PoE-MAX LED
    1 * Power LED
    Interfaces 24 * 10/100 Mbps Base-TX RJ45 ports (Data/Power)
    2 * 10/100/1000 Mbps Base-T RJ45 ports (Data)
    1 * 1000 Mbps Base-X SFP port (Combo)
    Lightning protection Port: 6kV
    Power: 6kV
    Forwarding mode Store-and-forward
    Switching capability 8.8 Gbps
    Packet forwarding rate 6.55 Mpps
    Buffer 4 Mb
    MAC address table 16K
    PoE supply Ports 1-24 support standard IEEE802.3af/at
    30W output per PoE port
    230W output of the total PoE Power
    Power consumption 250W output the whole device
    Input voltage AC：100-240V～ 50/60Hz
    Dimensions 440 mm x 178.8 mm x 44 mm(L*W*H)
    Four Modes "Standard: Default mode of the switch. In this mode, it works as an unmanaged switch; all ports can communicate with each other separately.
    Priority: In this mode, port G1 and G2/SFP2 serve as uplink ports, ports 1 – 8 serve as high priority port. All ports can communicate with each other separately.
    Extend: In this mode, data rate of ports 17 - 24 reduces to 10 Mbps, the maximum transmission distance can be 250 meters, and all ports can communicate with each other.
    VLAN: In this mode, ports 1 - 24 of the switch can communicate with port G1, G2/SFP2 separately, but cannot communicate with each other. You can enable this mode to reduce broadcast storm and isolate DHCP broadcast."
    Operating environment Operating temperature: 0°C - 45℃
    Storage temperature: -40°C - 70°C
    Operating humidity: (10% - 90%)RH, non-condensing
    Storage humidity: (5% - 90%)RH, non-condensing
    Certificates CCC、FCC、CE、RoHS
