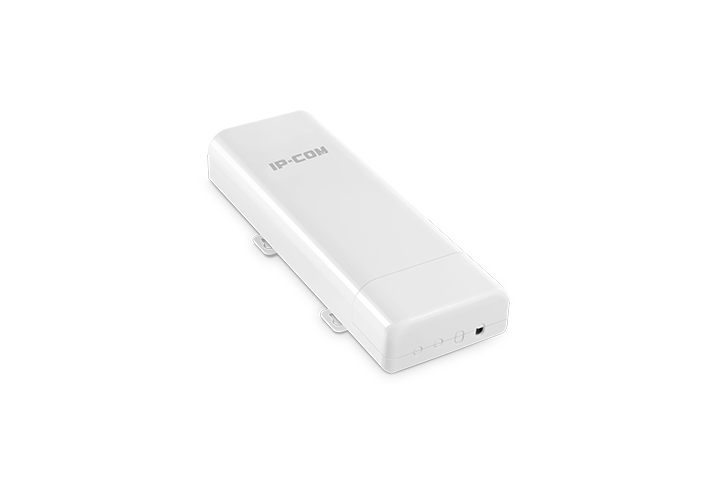

IP-COM (CPE9) 2.4GHz 5km Point to Point Outdoor CPE CPE9v2.0
$98.00
| SKU: | 404211 |
|---|---|
| MPN: | CPE9v2.0 Link |
| Manufacturer: | https://www.ip-com.com.cn/au |
| Brand: | IP-COM |
| Warranty: | Standard Manufacturer's Warranty |
| Availability: | In stock |
| Fright Estimate |
Description
▼
- 2.4GHz 11n 150Mbps
- 12dbi directional antenna
- IP64 waterproof enclosure
- 6000V Lightning Protection
- AP,Station,WISP operating mode supported
- Up to 60 meters of flexible deployment with included PoE Injector
Specifications
▼
| Product Information | |
|---|---|
| Model | CPE9 |
| Dimensions | 270*94.86*67.5mm |
| Deployment | Pole Mount |
| Application Scenarios | WISP CPE, Data transmission and Long range video surveillance |
| Hardware Features | |
| Frequency Range | 2.4GHz |
| Maximum Wireless Rate | 150Mbps |
| Interfaces | 2*10/100Mbps Ethernet Port |
| Antennas Gain | 12dbi |
| Antenna Beamwidth | Horizontal: 60° Vertical: 30° |
| Reset Button | 1 |
| GND | 1 |
| Power Consumption | Typical 4.3W, Peak 10.8W |
| Waterproof Level | IP64 |
| LED indicator | PoE/LAN,LED1,LED2,LED3 |
| Power Method | 12V1A Passive PoE |
| Lightning Protection | 6000V |
| Passive PoE | Passive power over ethenet via PoE/LAN (+4,5pins; -7,8pins) Voltage range: 11-13.8V DC |
| Receiver sensitivity | MCS0: -96dbm MCS7: -72dbm |
| Software Features | |
| Operating mode | AP/Station/WISP/P2MP/WDS Repeater/Router |
| Compliant Standards | IEEE 802.11b/g/n |
| Enable/Disable Wireless Radio | Support |
| SSID Hidden | Support |
| Wireless Client isolation | Support |
| SSID Isolation | Support |
| Client Limitation For SSID | Support |
| Wireless Access Control | Support |
| Weak Signal Client Limitation | Support |
| Transmission Power | Adjustable power by 1dBm |
| WMM Capable | Support |
| APSD Capable | Support |
| Wireless Security | 64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 |
| Transparent Bridge | Support |
| VLAN Tagging for SSID | Support |
| DHCP Server | Support |
| VPN Pass-Through | PPTP,L2TP |
| Remote Web access | Support |
| Schedule Reboot | Support |
| Page Timeout | Support |
| Ping Watchdog | Support |
| Dyndns | noip, dyndns.org |
| Network Diagnoses | Ping, Traceroute, Signal Scan |
| Time&Date Setting | Support |
| Firmware upgrade | Support |
| Backup/Restore Configuration | Support |
| Username Managerment | Support |
| System Log | Support |
| Managed By Controller | PC Software -- CPE Controller |
| Others | |
| Package Contents | 1*5km Point to Point Outdoor CPE 1*Power Adapter 1*PoE Injector 2*Plastic Staps 1*Quick Installation Guide |
| Operating Temperature | -30℃ ~ 60℃ |
| Storage Temperature | -40℃ ~ 70℃ |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 10%~90% non-condensing |
| Default login IP | 192.168.2.1 |
| Default Login Username | admin |
| Default Login Password | admin |
| Certifications | FCC/CE/RoHS |
