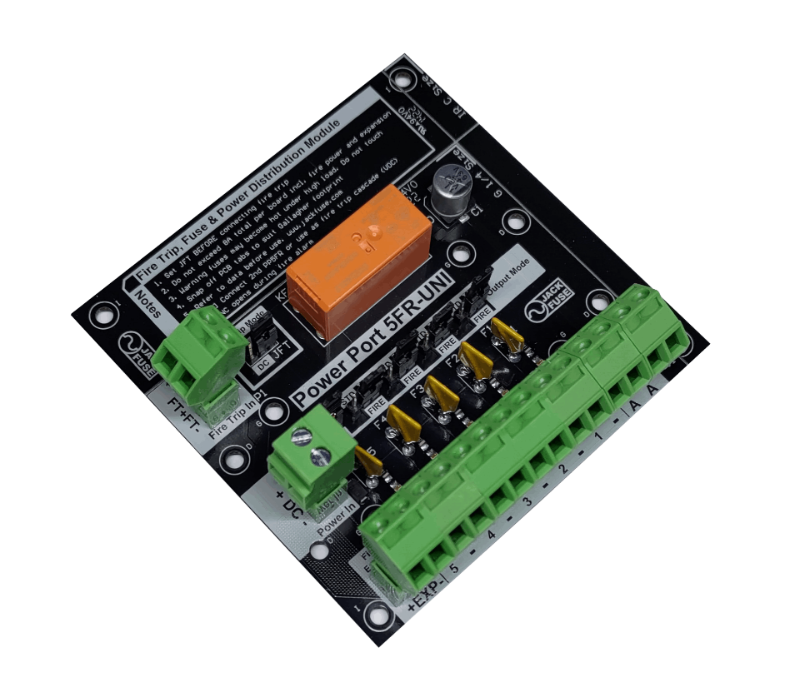

Power Port 5FR-UNI – Power Distribution Module With Gallagher, Inner Range And DIN Rail Mounting Options

Featuring five self-healing outputs, fire trip + monitoring and universal mounting the PP5FR-UNI ensures your electronic access control installation complies with fire escape and cabling rules.

This innovative addition to the Power Port range has removable sections and multiple mounting holes that enable it to be directly mounted in the same footprint as popular Gallagher and Inner Range expanders.

APPLICATIONS:

- Power distribution for electronic access control and security devices
- Fused over-current protection
- Automatic fire alarm emergency release of electric door locks
- Fire trip monitoring

FEATURES:

- Mounting holes to suit Gallagher ¼ footprint & Inner Range “C” size footprint
- DIN rail mounting kit available as an option
- Five individual, self-healing fused outputs, each with status LED
- Individually field-selectable power outputs – fire power or standard power
- 45 degree connectors for ease of termination
- Drive fire relay directly from FIP voltage or onboard voltage via N/C FIP contact
- Unfused voltage output for expansion
